Electrical System
Continuous Power Fuse Panel
Located near the battery switches. The fuses in
the panel protect the circuits that are always ac-
tive and not turned o by the battery switches.
The continuous power circuits are always supplied
current when the House batteries are connected.
The fuses in this panel provide continuous
power and protect the circuits for the fol-
lowing accessories:
Alarm
Protects the circuit for the automatic oat switch
that activates the high water alarm. The high
water alarm will sound to alert the operator of
unusually high water in the bilge.
Aft 1 FLT
Protects the circuit for the automatic switch that
activates the forward stern bilge pump located in
the bilge below the systems compartment. An
LED light in the Aft 1 Bilge Pump switch will be lit
whenever the pump is activated.
Aft 2 FLT
Protects the circuit for the automatic switch that
activates the aft stern bilge pump located in the
bilge near the transom. An LED light in the Aft 2
Bilge Pump switch will be lit whenever the pump
is activated.
Stereo Memory
Protects the circuit that supplies continuous 12
volt electrical current to the memory circuit in
the stereo.
Remote Battery Switch Fuse Panel
These fuses protect the individual circuits for
the remote battery switches at the helm. These
are continuous power circuits which are always
supplied current when the house batteries are
connected.
STBD Battery (2)
Protects the circuit for the switch that controls
the remote battery switch for the engine 12 volt
electrical system.

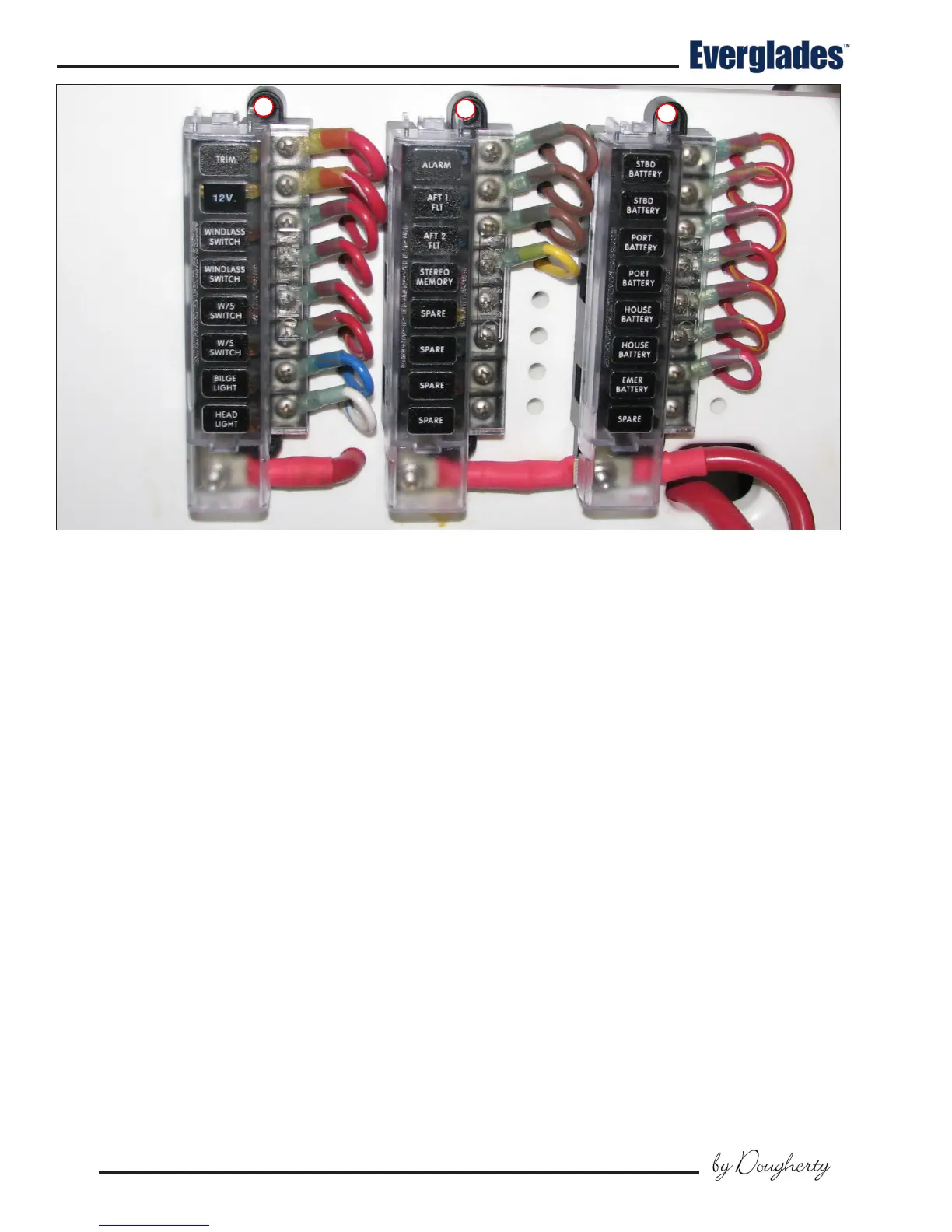

Accessory & Continuous Power Fuse Panels In Aft Systems Compartment
A) Accessory Fuse Panel B) Continuous Power Fuse Panel C) Remote Battery Switch Fuse Panel
C
B
A
