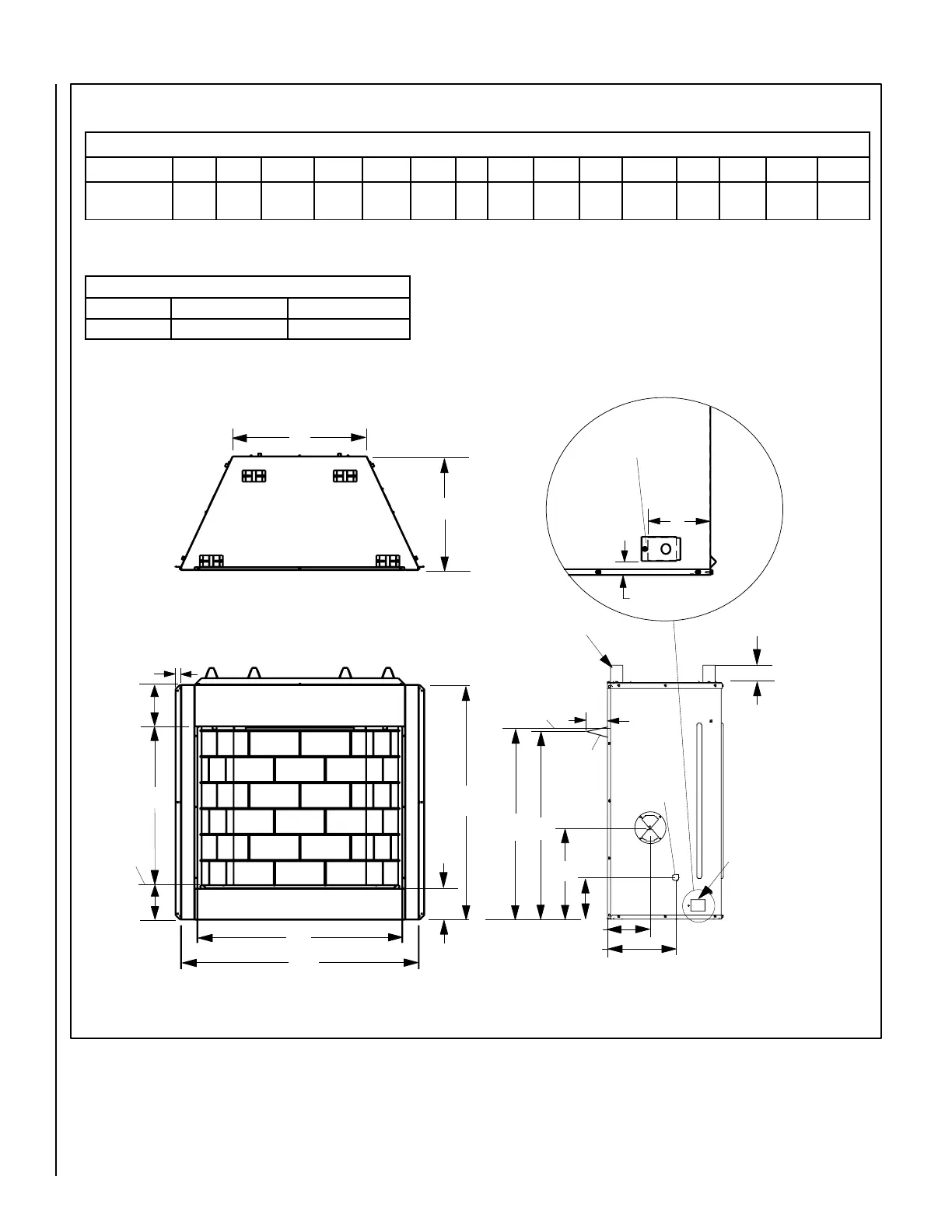

Figure 6
SPECIFICATIONS
Gas Line
Access -
Both Sides
Junction Box
Top View
A
E
C
D
P
*Q
F
H
J
M
N
1 (25)
7-1/16
(179)
Front View
B
G
Right Side View
L
K
Top Stand-Off
Spacers (4
places)
6-3/16
(157)
5-3/4
(146)
3-9/16
(90)
Top of Bottom
Refractory
Bottom of
Firebox
Opening
Top of Firebox
Opening
* Hood
Product Reference Information
Model Ship. Weight (lbs) Shipping Volume
EWVF36 150 lbs
20 Cu. Ft.
* A hood comes standard and is required for model EWVF36. The factory-
supplied hood must be installed on the firebox for safe operation in all
installations.
Dimensions - Inches (millimeters)
Model No. A B C D E F G H J K L M N P *Q
EWVF36
36
(914)
24
(610)
41-3/4
(1061)
37-1/4
(946)
23-1/2
(597)
20
(508)
3
(76)
7-3/8
(187)
15-7/8
(403)
7-1/2
(190)
11-15/16
(303)
1-5/16
(33)
5-1/2
(140)
30-5/16
(770)
29-5/8
(753)
Access Opening for Junction
Box - Right Side Only (remove
the knock-out before installing
J-Box).J-Box/ElectricalKitis
not provided with appliance.
