OPTIONAL EQUIPMENT
BlowerKits
The EWFBK100 Blower Kits are used when
     
desired, and the EWFBK200 Blower Kits are
used when a wall-mounted variable speed
blower control (rheostat) is desired. A Junction
Box / Electrical Kit 
these kits (purchased separately - see Page 16).
      
Room air is drawn in through the side slots



The installation instructions for installing these
blower kits are on Pages 12 through 14. Also see
the installation instructions provided with the

Figures 12, 13 and 14.
If the blower kit is to be installed at the time of
installation or at a later date, the main power
supply must be installed at the time of instal-
lation. This will require that the electrical
connections must be made BEFORE the firebox
is framed and enclosed in the finished walls.

supply and connect to electrical receptacle wires
and wall switch or rheostat.
Grounded
to Appliance
Blower Motor
Motor Plug
Receptacle
120V
Appliance Junction Box
NOTE: If any of the original wire as supplied
must be replaced, it must be replaced with type
AWM 105°c – 18Ga. wire
120V, 60HZ,
1PH BLOWER
CONTROL CIRCUIT
WIRING
Junction
Box
Factory Wired
Blower
Tab
Intact
Plug blower
into this
receptacle
Ground - Green
* Wall-mounted ON/
OFF Blower Switch
or Variable Speed
Control Switch.
Ground
HOT SIDE OF
RECEPTACLE
*AON/OFFWallSwitchisusedwiththeEWFBK100kit
(field provided; A Variable Speed Control (provided)
isused with theEWFBK200kit.  The installation of
thesekitsalsorequireaJunctionBox/ElectricalKit,
not included. See Page 16 for ordering information.
NOTE: If any of the original wire as supplied must
be replaced, it must be replaced with type AWM 105
degree C - 14 gage wire.
Neutral - White
120 VAC Black
Green
Ground
Screw
NEUTRAL
SIDE OF
RECEPTACLE
Black
Field Wired

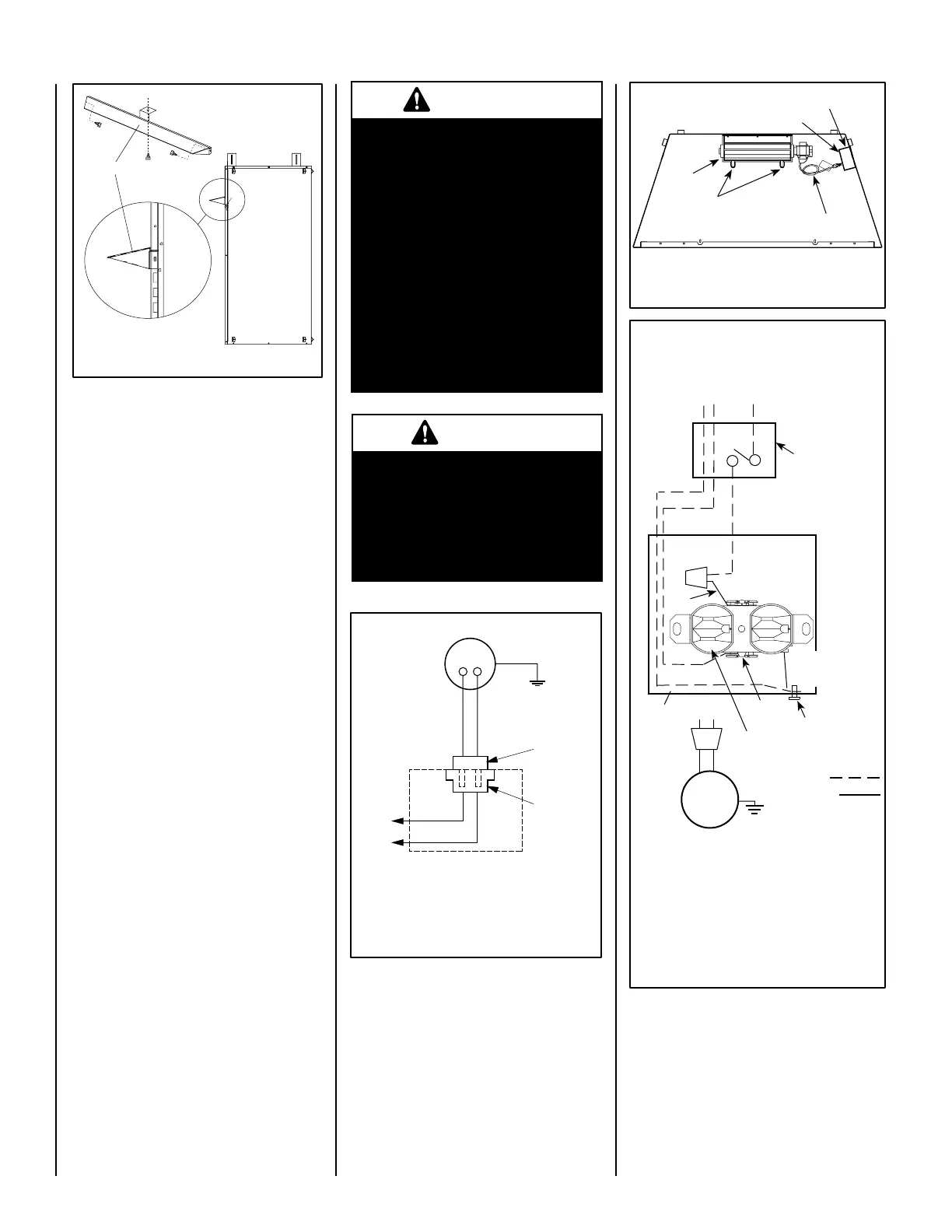

Figure 14
Blower
* Junction Box
Bend blower mounting
tabs up to secure
blower in place
* Electrical Outlet
Tie a loose knot in power
cord to take up slack
Top View
Figure 13
Figure 12
NOTE: If any of the original wire as supplied must
be replaced, it must be replaced with type AWM
105 degree C - 14 gage wire.
*TheJunctionBox/ElectricalKitisnotincluded.
See Page 16 for ordering information.
Figure 11
Hood
Side View
IMPORTANT
The Ground Lead must be connected
to the green screw (located on the
junction box). Failure to do this
could result in an electrical short or
shock injury.
The appliance must be electrically
grounded in accordance with local
codes or, in the absence of local
codes, the national electrical code,
ANSI/NFPA 70-(latest edition). (In
Canada, the current CSA C22.1
Canadian Electrical Code).
CAUTION
Electrical connections should
only be performed by a qualified,
licensed electrician. Main power
must be off when connecting to
main electrical power supply or
performing service.
