Step 1.
Model EWVF36:
Using a screwdriver remove the screw from the blower access panel
as shown in Figure 15. Slide the panel to the right until the flange
clears the opening. Remove the panel and set aside.
Step 2.
of unit (see Figure 6 for location).
side cabinet panel where you removed the knock-out (see Figures 17
and 18). The Junction Box / Electrical Kit is sold separately (see Page
16 for ordering information).
NOTE: Pass the wires through the hole, then squeeze the J-Box
flanges together to fit into opening.
Step 3.Figure 19).
Step 4.Figure 20. Position the blower assembly
so that the tabs (located on the cabinet base) are seated in the notches of
the blower bracket. Bend the tabs over to secure the blower assembly (see
Figure 21).
Step 5. Plug power cord into the electrical outlet as illustrated in Figure 13.
J-Box Flanges
J-Box and
Electrical
Outlet
Right Outside Cabinet Panel
Wires
Figure 17
Figure 15 -
Model EWVF36
Figure 18
IMPORTANT
All electrical wiring must be performed by licensed Elec-
tricians. Electrical wiring must comply with the National
Electrical Code ANSI/ NFPA 70 - latest edition
Installation Instructions -
EWFBK100orEWFBK200BlowerKitsandEWJBKJunctionBoxKit
Firebox
floor
Blower
Access
Panel
Remove screw, then lift out blower access panel.
J-Box Flange
Install into side wall rectanular opening
Firebox
floor
Screw

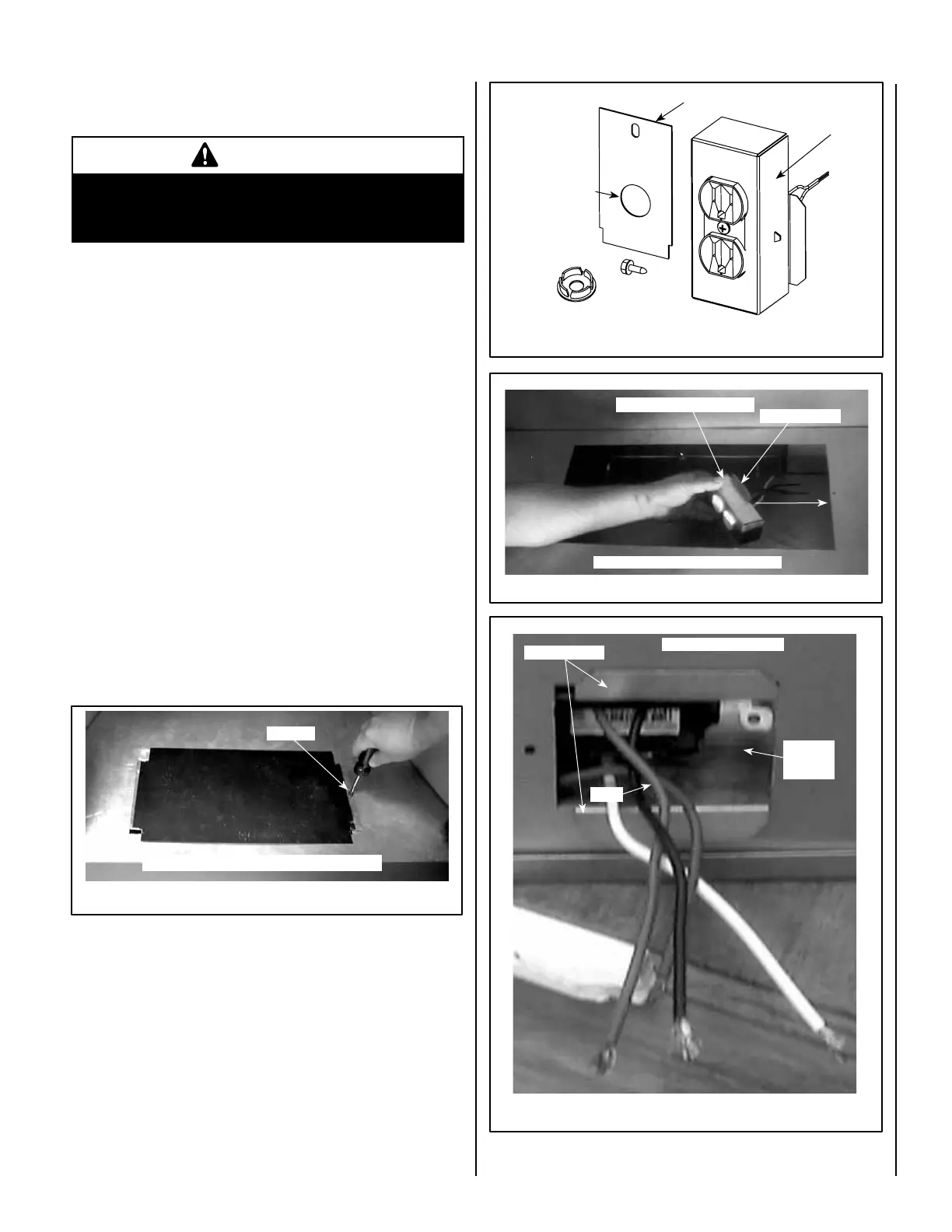

Figure 16 - Junction Box Kit
J-Box and
Receptacle
J-Box and Electrical Outlet
Screw
Strain Relief Bushing
Remove knock-out
(strain relief bushing
presses into this
hole around romex
wires - see Step 8 on
Page 14).
Cover Plate
