7. Install of indoor units

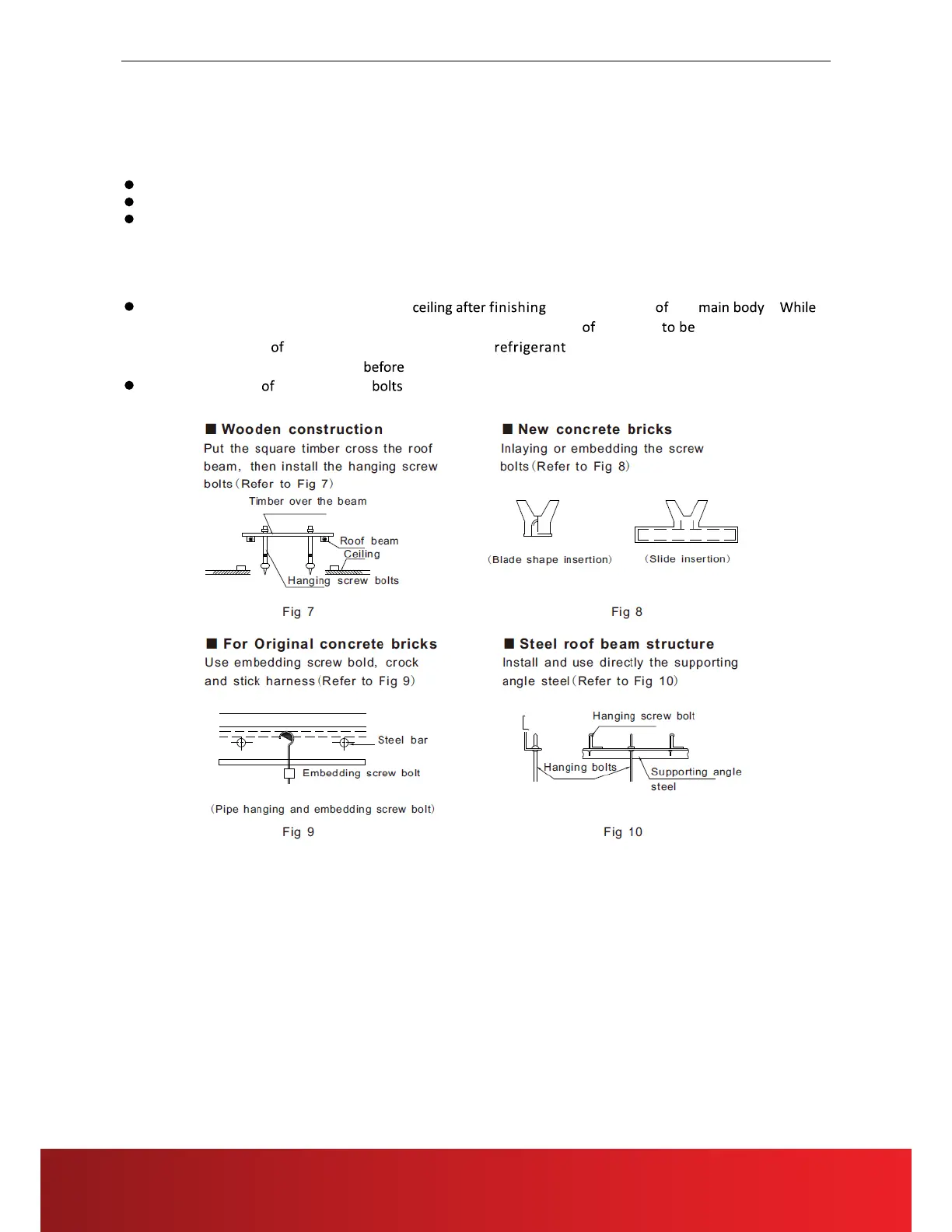

7.1 Install M10 hanging screw bolts.( 4bolts):
Please refer to the following figure for the distance measurement between the screw bolts.
Please install with M10 hanging screw bolts.
The handling to the ceiling varies from the construction, consult the construction personnel for the
specific procedures.
1) The size of the ceiling to be handled... do keep the ceiling flat. Consolidate the roof beam for possible vibration.
2) Cut off the roof beam.
3) Strengthen the place cut off and consolidate the roof beam.
Carry out the pipeline operaon in the the installaon the .
choosing where to start the operaon, determine the direcon the pipes drawn out.
Especially in case
there is a ceiling, posion the pipes, drain pipes, indoor & outdoor
lines to the connecon places
hanging up the machine.
The installaon hanging screw
