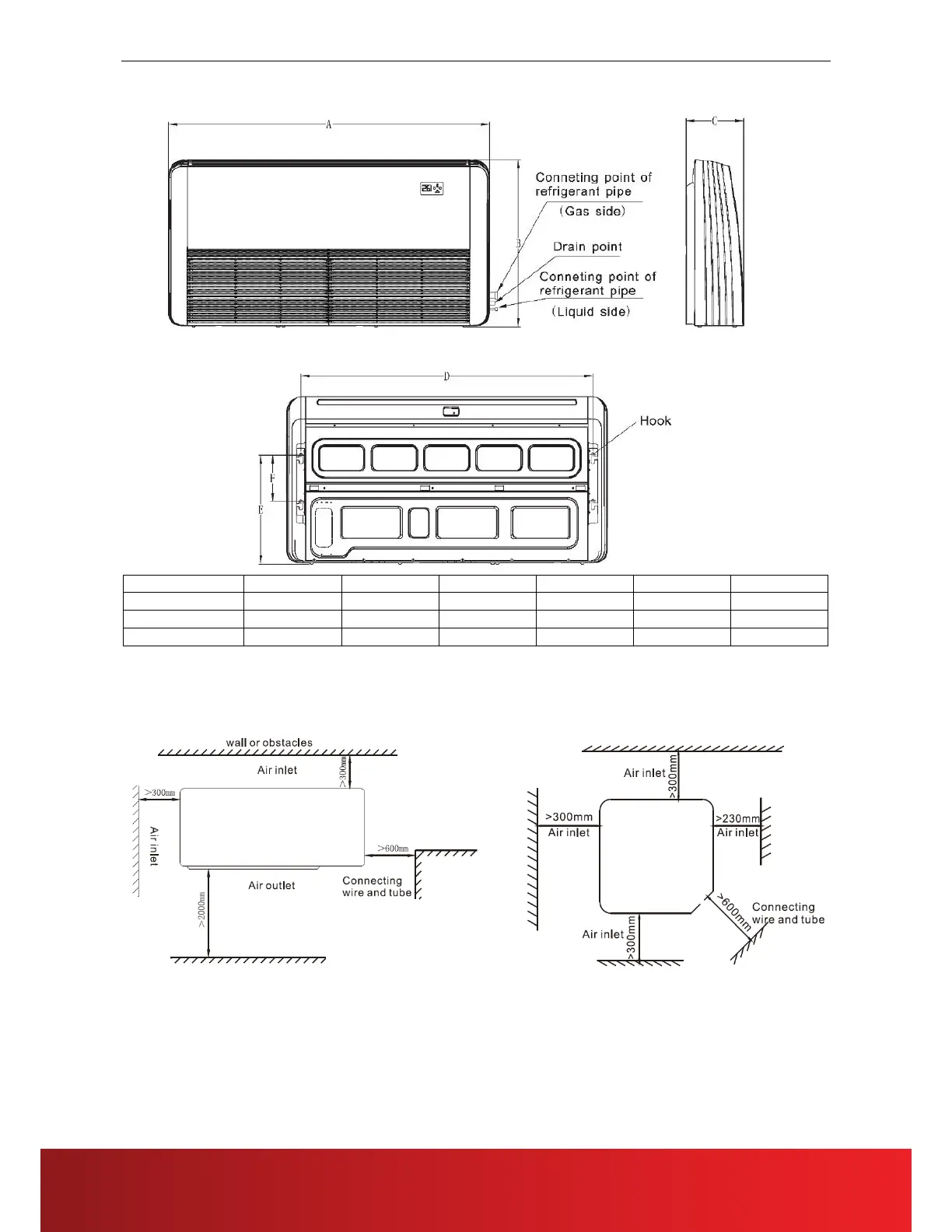

3. Dimensions
Model(kBtu/h)
A(mm)
B(mm)
C(mm)
D(mm)
E(mm)
F(mm)
24
1050
675
235
933
440
188
36
1250
675
235
1185
440
188
60
1670
675
235
1553
440
188
4. Service Space
Ensure enough space required for installation and maintenance.
There is enough space for installation and maintenance. The ceiling is horizontal, and its structure can endure the
weight of the indoor unit. The outlet and the inlet are not impeded, and the influence of external air is the least. The
air flow can reach throughout the room. The connecting pipe and drainpipe could be extracted out easily.
