EVGA X58 SLI CLASSIFIED Motherboard
15
1. PS/2 Keyboard Port
2. USB 2.0 ports (Eight)
3. CMOS Clear Button
4. Coaxial SPDIF output
5. Optical SPDIF output
6. 1394a (Firewire) port
7. eSATA port
8. Dual Lan Port with LEDs to indicate status.
9. Audio Port 2-Channel 6-Channel 8-Channel________
Blue Line-In Line-In Line-In
Green Line-Out Front Speaker Out Front Speaker Out
Pink Mic In Mic In Mic In
Orange Center/Subwoofer Center/Subwoofer
Black Rear Speaker Out Rear Speaker Out
Grey Side Speaker Out

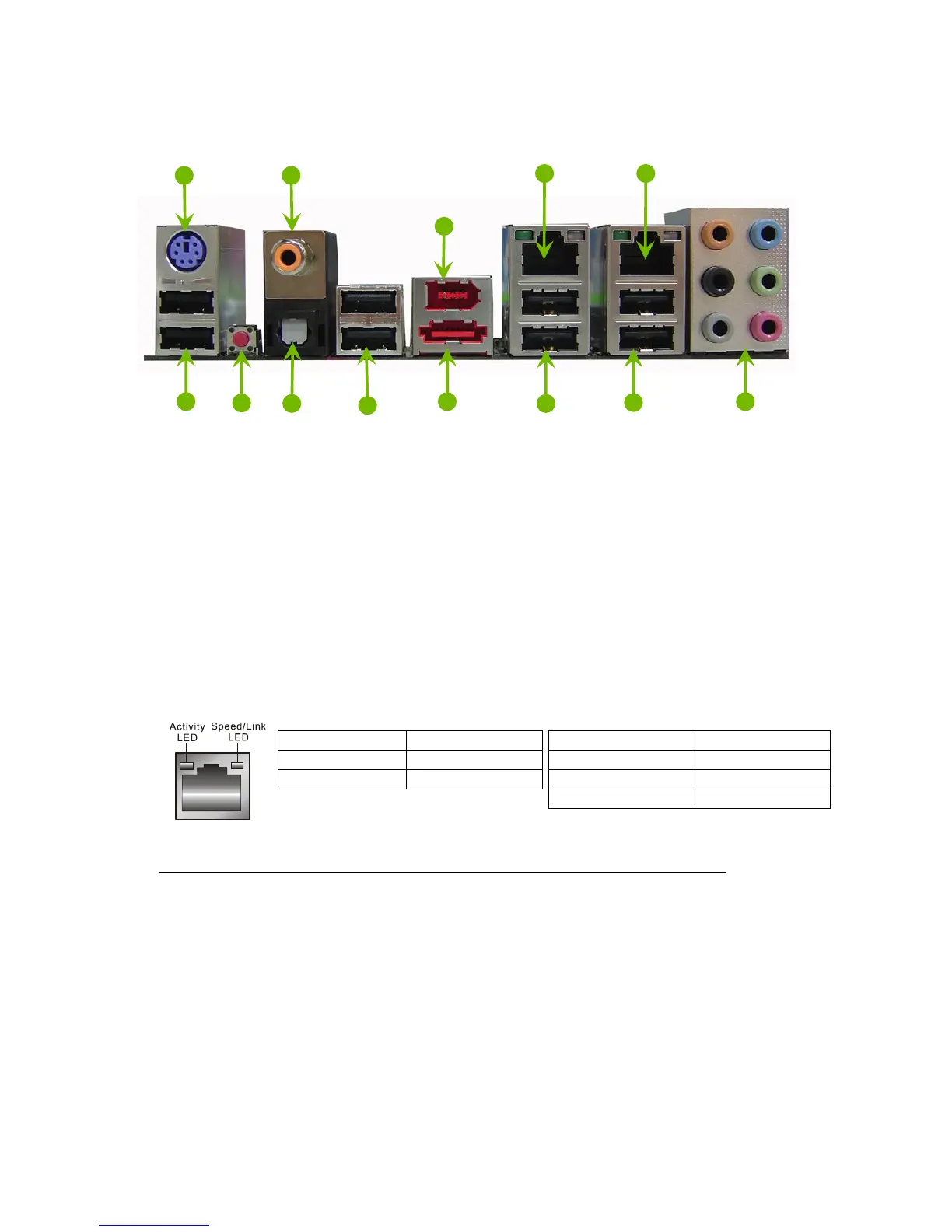

Figure 2. Chassis Backpanel Connectors
