EVGA 141-BL-E759 - 8-Pin ATX 12 V Power (PW12-1, PW12-2)

EVGA X58 SLI CLASSIFIED Motherboard
23
Table 1. PW1 Pin Assignments
Connector
Pin
Signal
Pin
Signal
24 13
12 1
1
+3.3V
13
+3.3V
2
+3.3V
14
-12V
3
GND
15
GND
4
+5V
16
PS_ON
5
GND
17
GND
6
+5V
18
GND
7
GND
19
GND
8
PWROK
20
RSVD
9
+5V_AU
X
21
+5V
10
+12V
22
+5V
11
+12V
23
+5V
12
+3.3V
24
GND

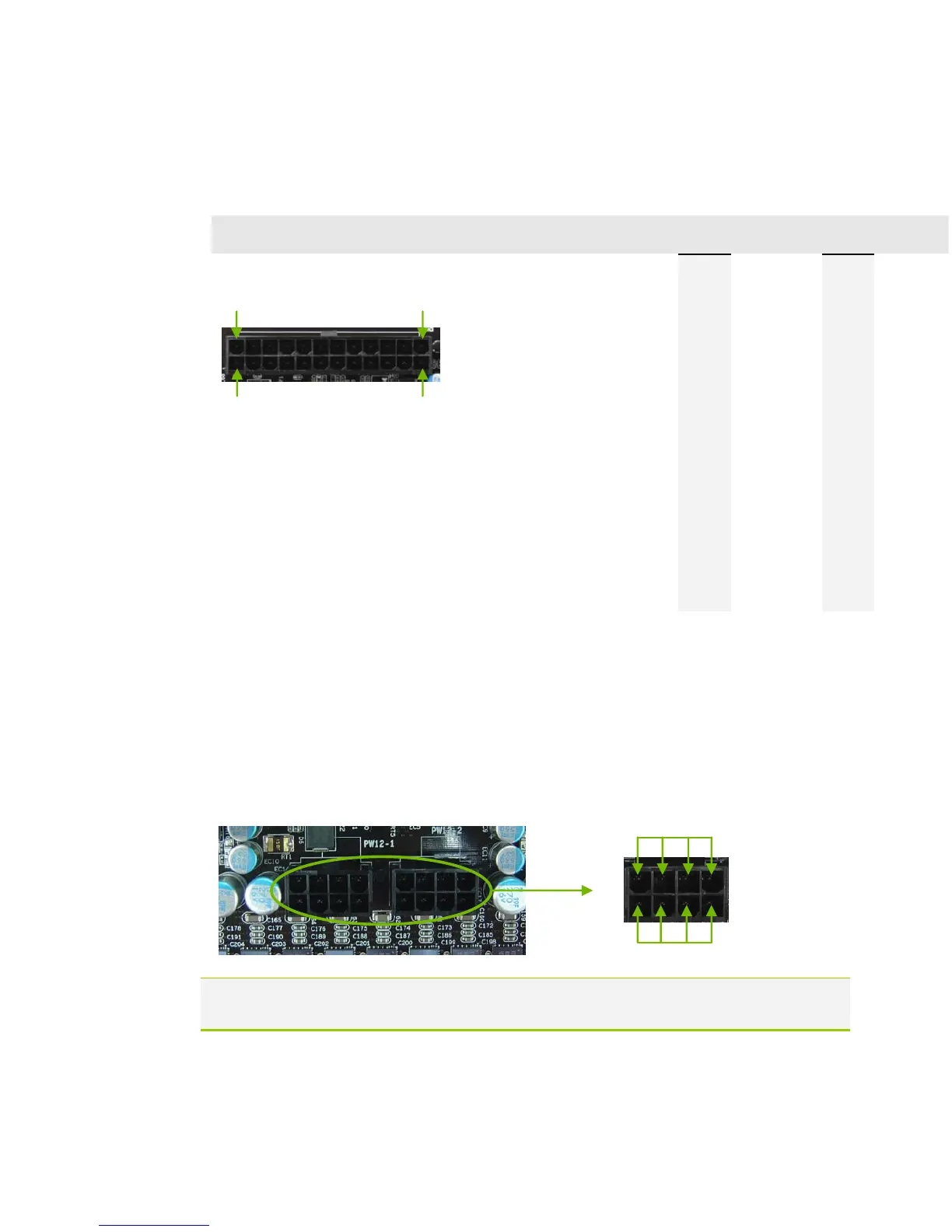

8-pin ATX 12V Power (PW12-1, PW12-2)
PW12-1,PW12-2, the 8-pin ATX 12V power connection, are used to provide
power to the CPU. Align the pins to the connector and press firmly until seated.
You can plug in an extra one if your power supply comes with it. It is not
necessary and the motherboard will function perfectly with just one connector
in either socket.
Before plug these two power connection, please make sure your power supply
support two 8-pin ATX 12V differential output.
