EVGA X99 FTW - Rear I;O Panel Legend

- 10 -

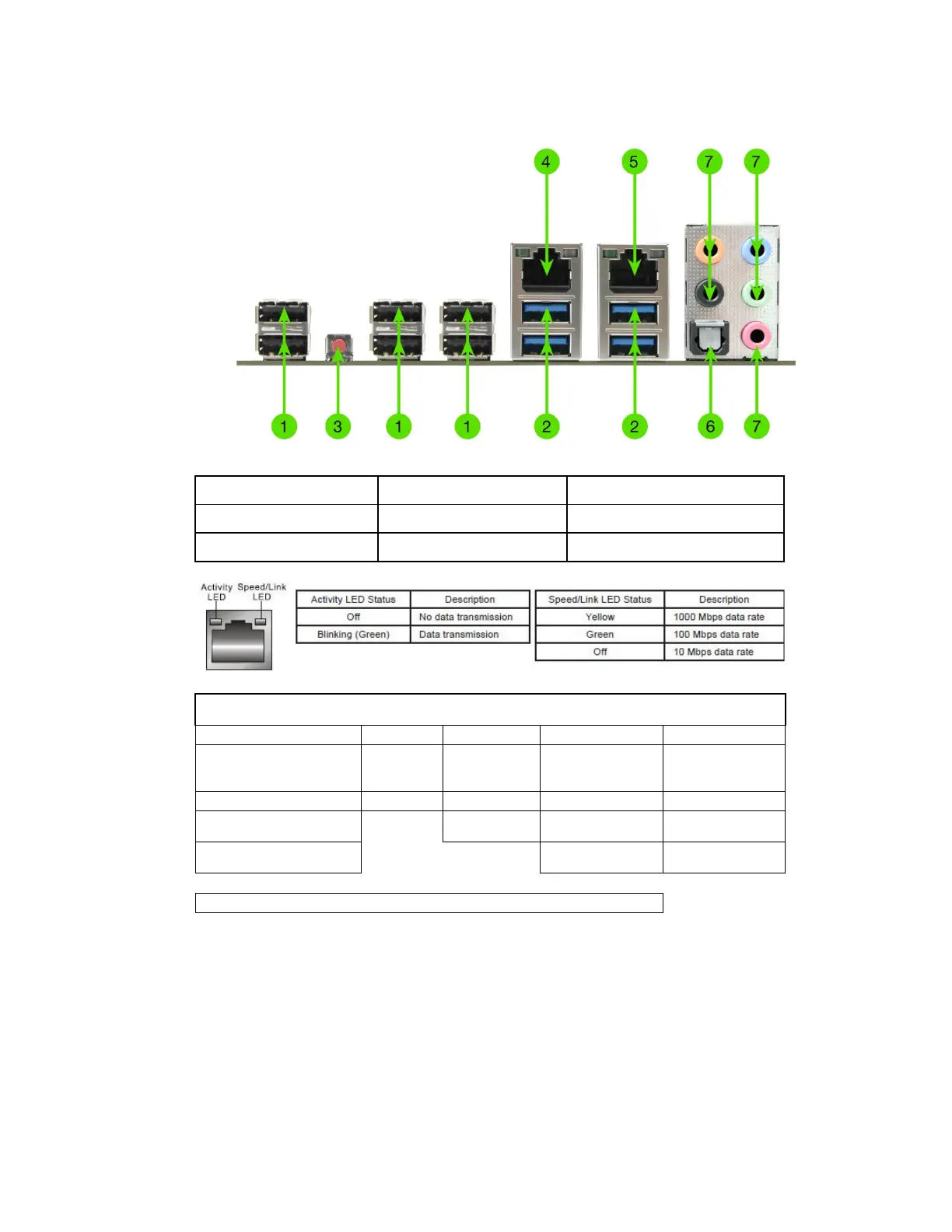

Figure 2. Chassis Rear Panel Connectors
1. USB 2.0 4. Intel i217 NIC 7. Analog Audio Output Jacks
2. USB 3.0 5. Intel i210 NIC
3. BIOS/CMOS Reset 6. Optical Out
Analog Audio Port
Breakdown
2/2.1
Channel
4.0/4.1
Channel 5.1 (6 Channel) 7.1 (8 Channel)
Blue Line in Line In Line in * Side channel
Green Line Out/
Speaker Out
Front Speaker/
Speaker+Sub
Out
Front Speaker/
Speaker+Sub Out
Front Speaker/
Speaker+Sub Out
Pink Mic In Mic In Mic In Mic In
Black
Rear Speaker
Out Rear Speaker Out Rear Speaker Out
Orange
Center/Voice
channel
Center/Voice
channel
* Only used in 7.1 and is changed via Realtek Software from within Windows.
