Evh 5150-III Ower's Manual

9

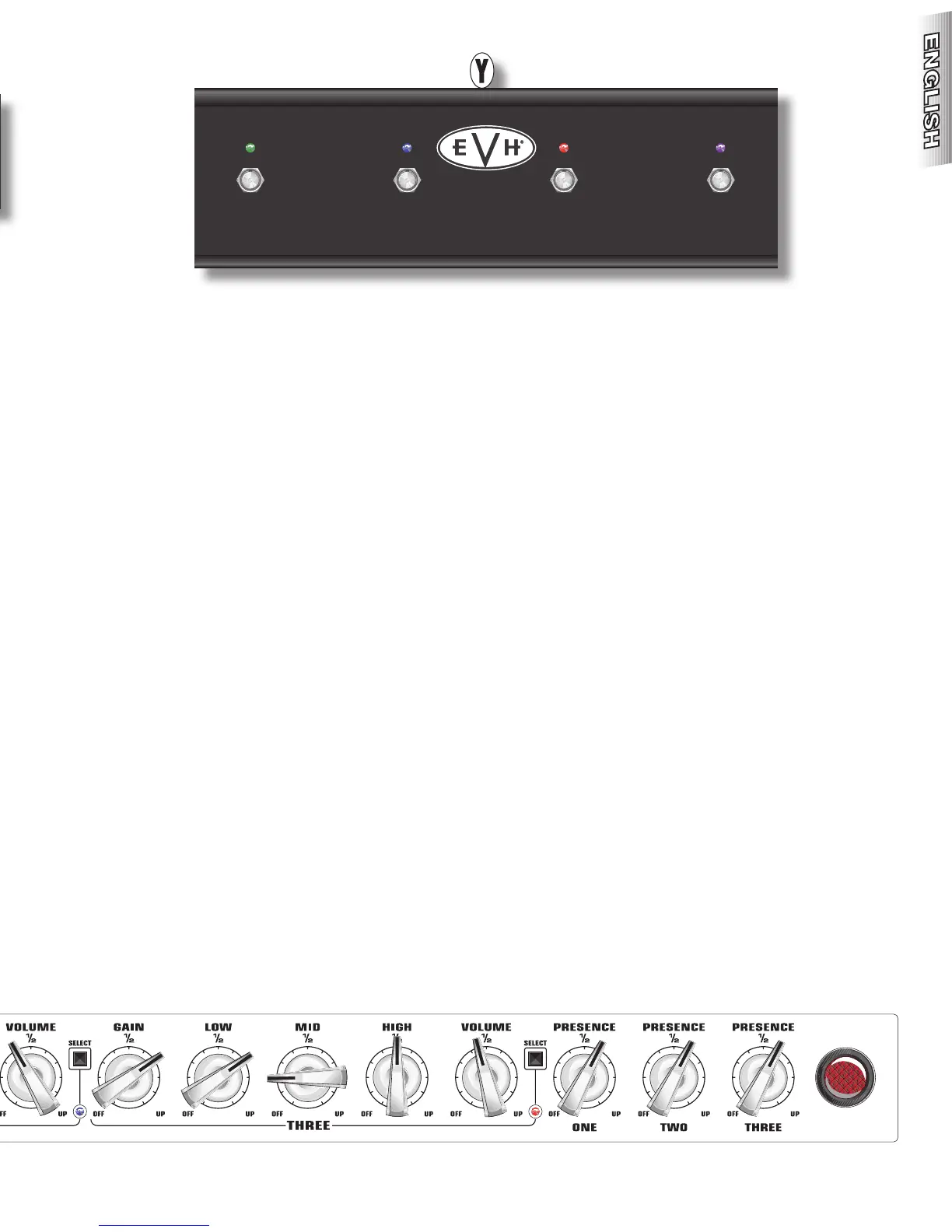

Y. EVH FOOTSWITCHThe footswitch allows easy selec-
tion of any of the three channels as well as the effects
loop. When illuminated, the Green, Blue, and Red chan-
nel LEDs correspond with the channel LEDs on the ampli-
fier’s front panel.
Note: The 5150-III footswitch should be connected to the
amplifier prior to turning on the POWER. If the footswitch is
disconnected or reconnected after power-up, the amplifier
may not function correctly.
Specifications
Type: PR 684
Part Numbers: 2251000x00* (120V, 60Hz); 2251001x00* (110V, 60Hz) TW; 2251003x00* (240V, 50Hz) AUS;
2251004x00* (230V, 50Hz) UK; 2251005x00* (220V, 50Hz) ARG; 2251006x00* (230V, 50Hz) EUR;
2251007x00* (100V, 50Hz) JPN; 2251009x00* (220V, 60Hz) ROK
Power Requirement: 533W
Output: 100 Watts RMS into 4, 8, or 16 Ohms
Input Impedance: 1MΩ
Output Impedance: 4Ω / 8Ω / 16Ω (selectable)
Fuses: 100V units, F7A L, 250V; 120V units, F6A L, 250V; 220-240V units, F3A L, 250V;
Footswitch (included): 4-button, one / two / three / effects on-off (070926)
Tube Complement: Four 6L6WXT output tubes, Eight 12AX7 preamp tubes
Weight: 55 lb (25 kg)
Height: 10.25” (26 cm)
Width: 29.75” (75.5 cm)
Depth: 11.5” (29.3 cm)
Recommended Speaker Enclosures:
5150-III 412 Straight Speaker Enclosure, 2252100x00*
*Exterior color code: Black "x"=0, Ivory "x"=4
POWER
ON
OFF
T4A L
250V
FUSE
LOAD
IMPEDANCE
4� 8� 16�
ON
SEND RETURN
EFFECTS LOOP
FOOT
SWITCH
PREAMP
OUT
STANDBY
OFF
INPUT
POWER
V Hz
533W
4� min TOTAL
100W
PARALLEL
SPEAKER OUTPUTS
ONE TWO THREE EFFECTS

Evh 5150-III Specifications

General

Number of Channels	3
Total Power	50W
Power Tubes	2 x 6L6
Inputs	1 x 1/4"
Footswitch I/O	1 x 1/4"
Footswitch	Included
Width	25.5"
