Evinox ModuSat TP 40-10 - Page 11

11

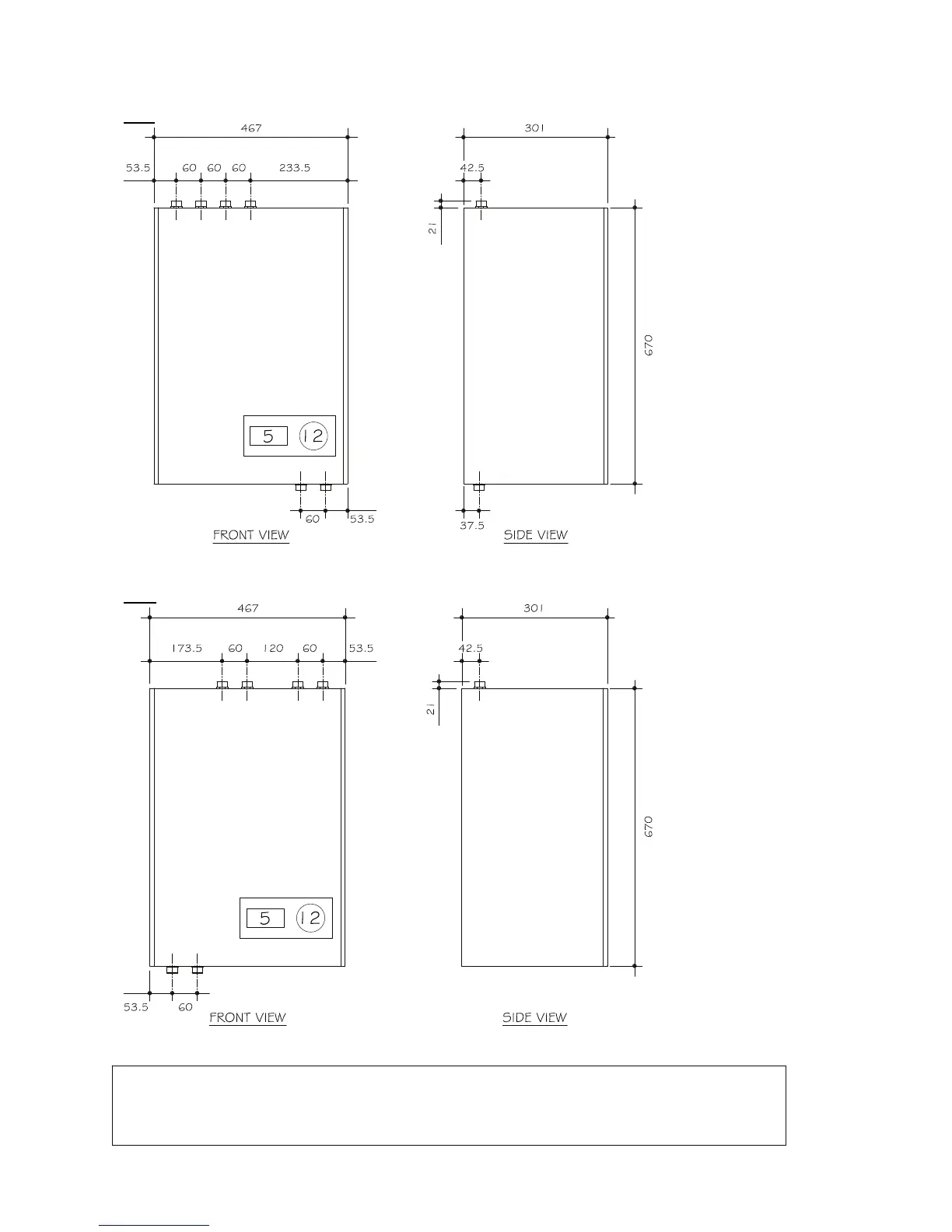

TL5 TP 40-10 & 50-10 Secondary Heating Flow & Return Connections at the Bottom
BL5 TP 40-10 & 50-10 Primary Flow & Return Connections at the Bottom
Note: For clarity, safety drain connections are not shown. Please refer to hydraulic arrangements.
Additional connection configurations available as detailed on pages 7-9 of this manual. For specific
hydraulic arrangements for other connection configurations please contact the Evinox Technical
Department on 01372 722277.
