3.5 Use of Pre-installation Rig
A pre-installation rig is available upon request on a sale or return basis. It consists of a
back panel constructed of steel. This will enable the installer to arrange the piping entering
and leaving the unit during first fix prior to the unit being delivered / installed. The
configuration of the pre-installation rig will be as per the unit being supplied and the project
requirements.
HOW TO INSTALL PRE-
INSTALLATION RIG
STEP1: Securely fix the
mounting bracket to the wall in
the required position. Hang the
ModuSat TP Pre-Installation Rig
on the bracket.
STEP2: Fit the Evinox Flushing
Bypass & Valve Kit to the rig and
then make final connections to
the pipework running to the HIU.
STEP3: Shut off isolation valves,
pressure test pipework and then
disconnect the valve unions and
lift away the Pre-Installation Rig
leaving the valves ready for the
ModuSat arrival.
STEP4: Take the Pre-
Installation Rig to the next
apartment and repeat the
process.
NB: Please take care of the Pre-
Installation Rig as this is typically
purchased on Sale and Return
basis. Damaged pre-installation
rigs cannot be returned for
credit.

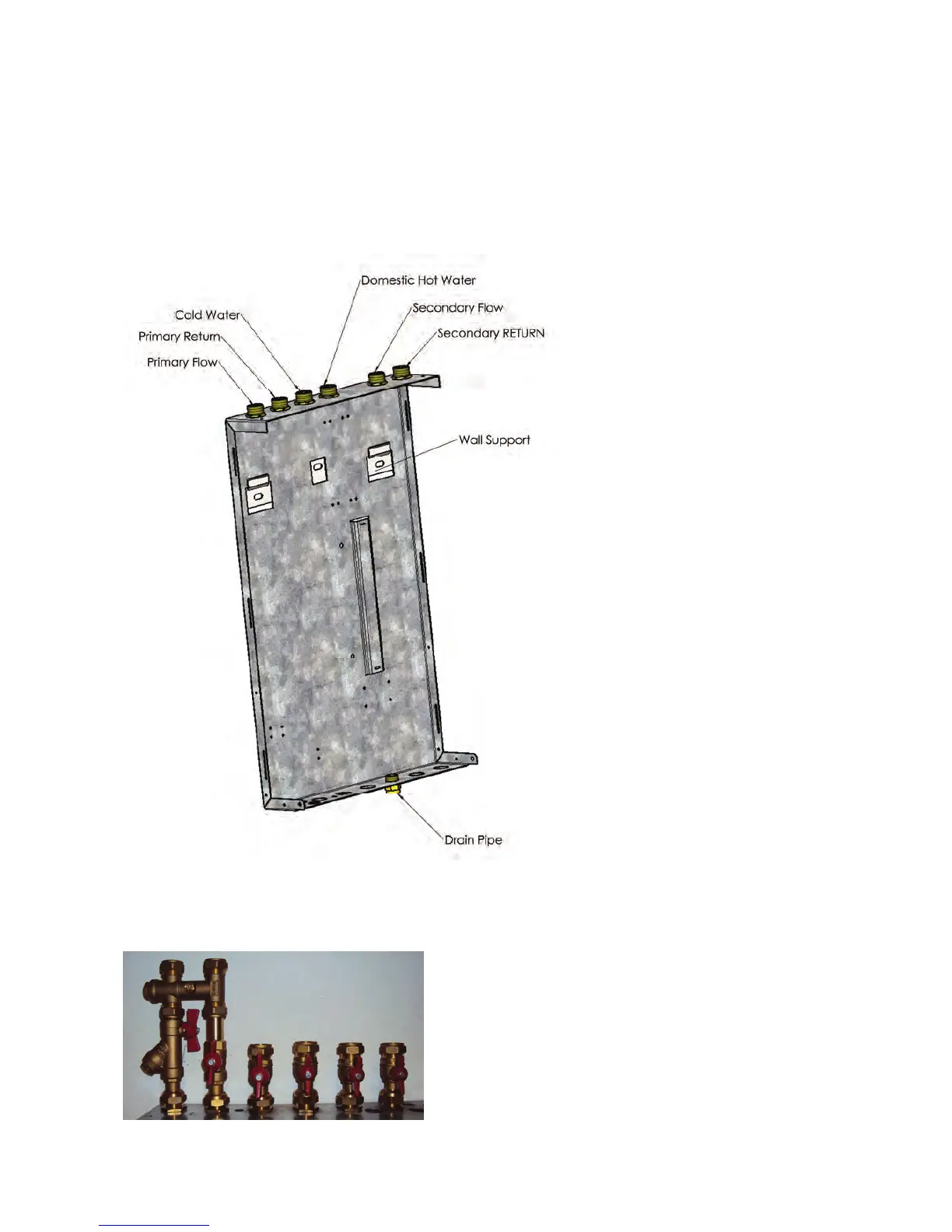

Please refer to section 2.3 for the relevant model dimensions and typical connection
configuration.
Typical Evinox Valve Kit Installation
