3.7 Pressure Independent Control Valve (PICV) Adjustment


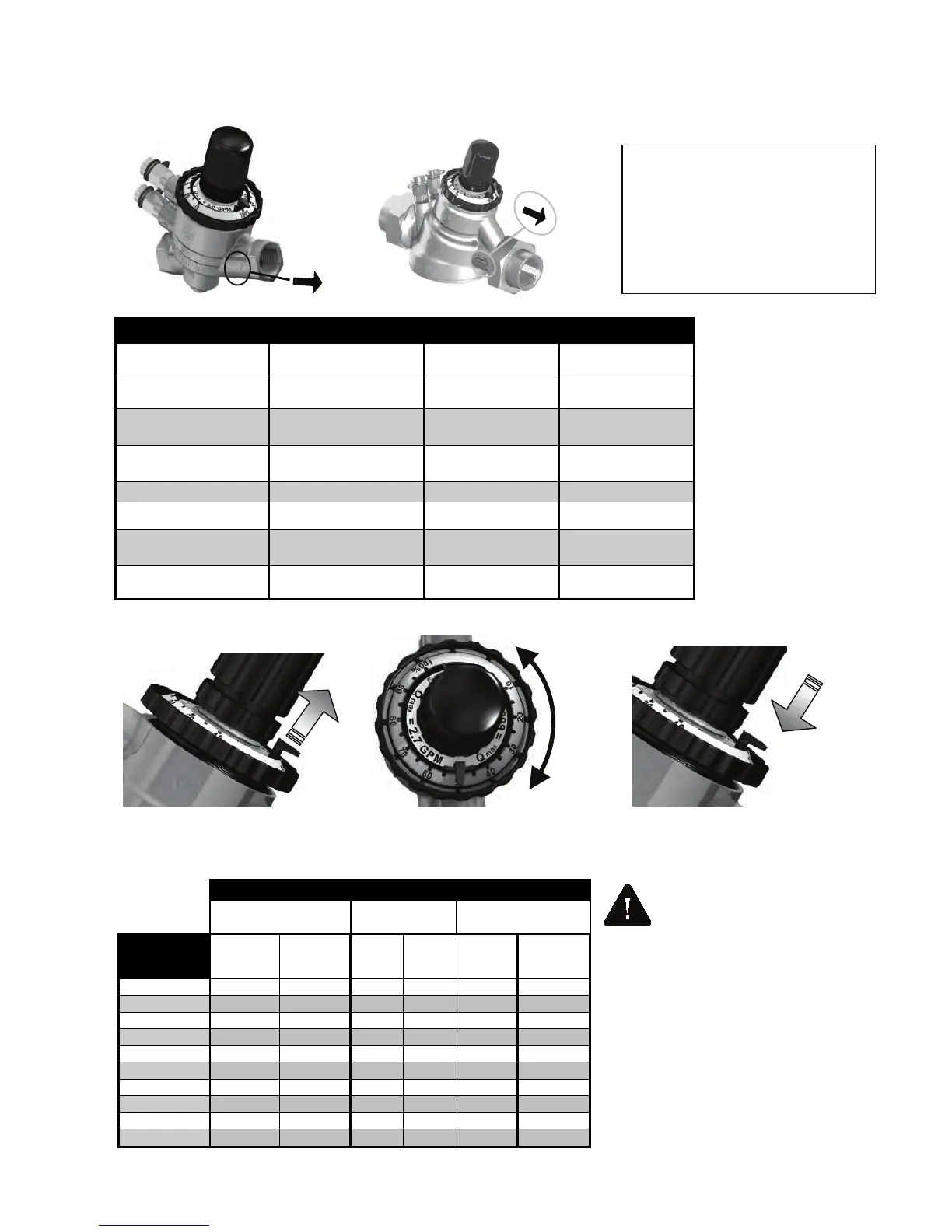

MANUAL ADJUSTMENT OF THE QMAX (MAXIMUM PRIMARY FLOW)
FOR THE CORRECT USE
OF THIS PRODUCT,
WATER QUALITY MUST
BE HIGH AND COMPLY
WITH CURRENT BSRIA & CIBSE
GUIDELINES AND EVINOX
REQUIREMENTS.
Please note that the flow rates stated
are subject to a + / - 10% tolerance.
TECHNICALDATA 91L¾”
91H ¾”
93L1”

ModuSatTPHEATING
40/50/60‐10
ModuSatTP
40/50‐10DHW
ModuSatTP
60‐10DHW
Maxflowrate
1000 l/h
0.278 l/s
1500 l/h
0.417 l/s
2200 l/h –
0.611 l/s
Max.Flowaccuracy
[∆p0.3÷1bar]
±10% ±10% ±10%
Start‐up
∆p→Q=const.
25 kPa
0.25 bar
35 kPa
0.35 bar
25 kPa –
0.25 bar
Max∆p
400 kPa – 4 bar 400 kPa – 4 bar 400 kPa – 4 bar
Temperature
-10 ÷ 120 °C -10 ÷ 120 °C -10 ÷ 120 °C
Maxworking
pressure
2500 kPa
25 bar
2500 kPa
25 bar
2500 kPa
25 bar
Connections
Rp 3/4” F
EN10226-1
Rp 3/4” F
EN10226-1
Rc - EN10226-1
91L ¾”
91H ¾”
93L 1”
ModuSatTPHEATING
40/50/60‐10
ModuSatTP
40/50‐10DHW
ModuSatTP
60‐10DHW
PRE-
SETTING
%
Flow
l/h
Flow
l/s
Flow
l/h
Flow
l/s
Flow
l/h
Flow
l/s
100% 1000 0,278 1500 0.417
2200 0.611
90% 900 0,250 1350 0,375
1980 0.550
80% 800 0,222 1200 0,333
1760 0.489
70% 700 0,194 1050 0,292
1540 0.428
60% 600 0,167 900 0,250
1320 0.367
50% 500 0,139 750 0,208
1100 0.306
40% 400 0,111 600 0,167
880 0.244
30% 300 0,083 450 0.125
660 0.183
20% 200 0,056 - - 440 0.122
10% 100 0,028 - - 220 0.061
Flow
Carefully Lift up locking
device
Select the flow rate by rotating the
pre-setting ring
Carefully Push down
locking device
The PICV contained within the
ModuSat is a combined flow
regulation, DP control and energy
valve. The valve will be pre-set
during commissioning based on the
design parameters, however
adjustment can be to the Qmax
(Maximum flow) if required.
*
*
Flow
*
*
