35

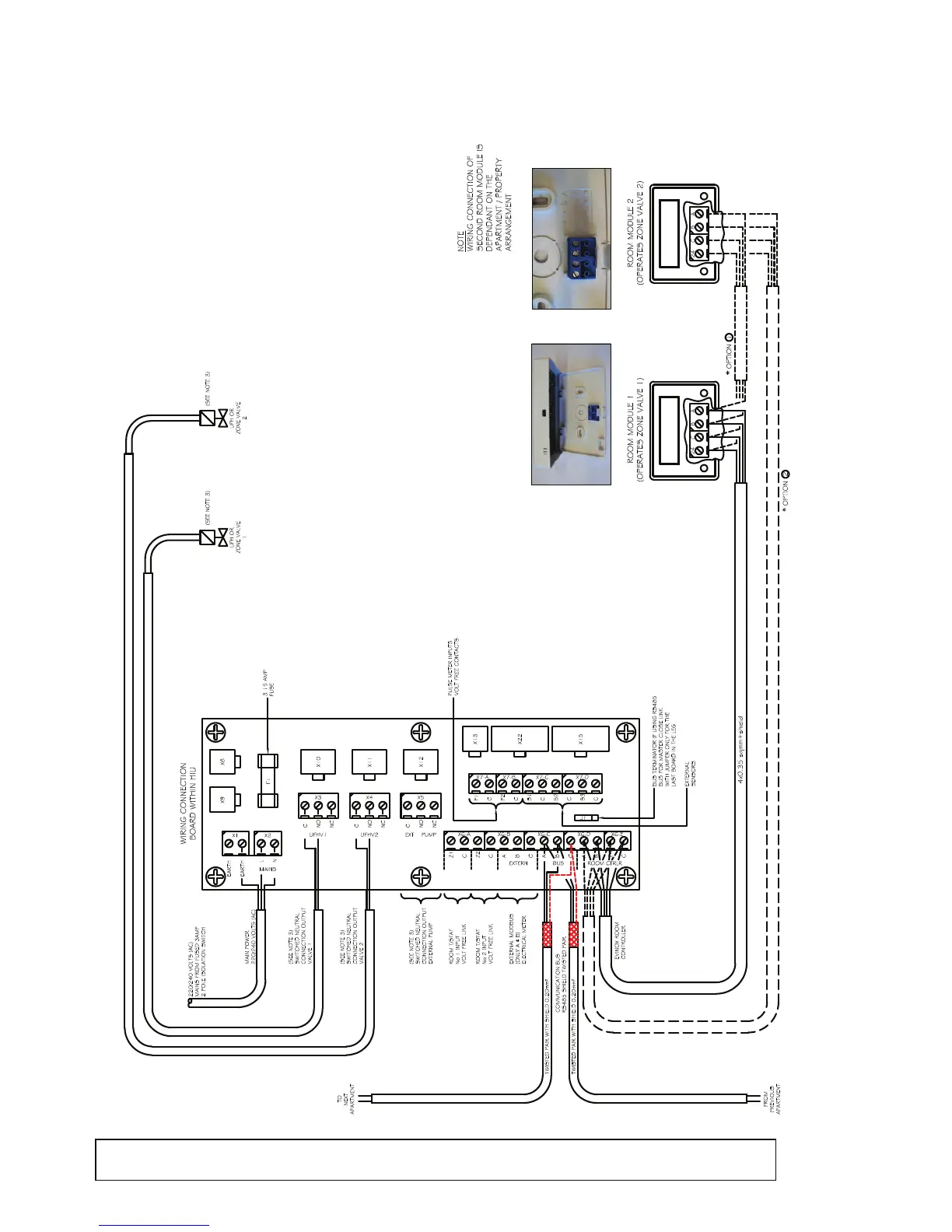

5.5 Typical ModuSat Electric Wiring Diagram with 2 Zone Control (2 Room
Controllers)
Note 3: Pumps & valves must have localized power supply. Switched neutral connection to be fitted with 1 amp
in-line fuse on neutral cable.
