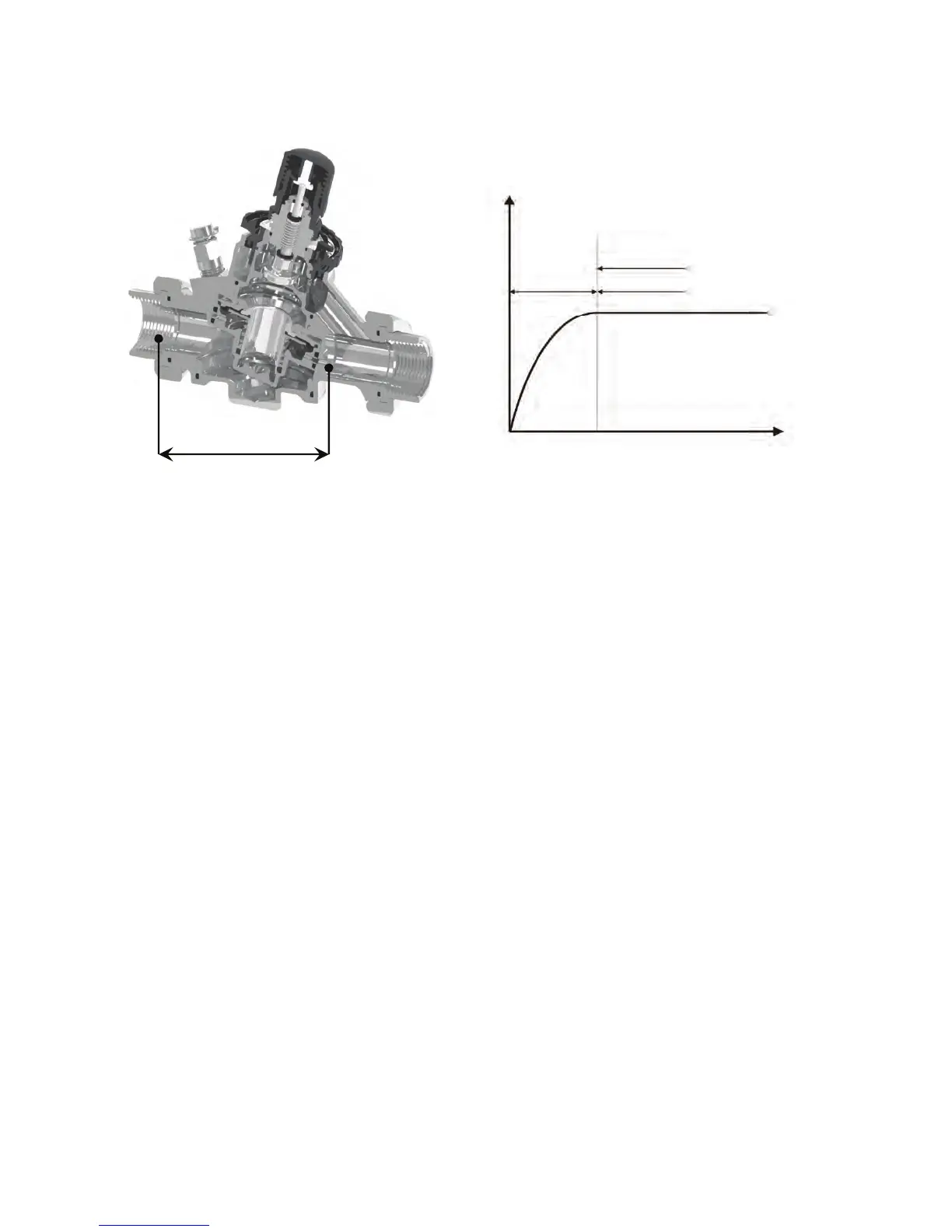

For 93L 1” – ModuSat TP 60-10 DHW

P1 = H pressure port

P2 = L pressure port

P1 – P2

Q

≠CONST

Q=CONST

25 kPa

P1-P2

Q

START UP

PRESSURE

If P1-P2 > 25 kPa THEN

THE VALVE IS WITHIN THE WORKING RANGE
