Available Pump Head
Available Pump Head
Ensure that the available pump head meets the requirements of the secondary
system.

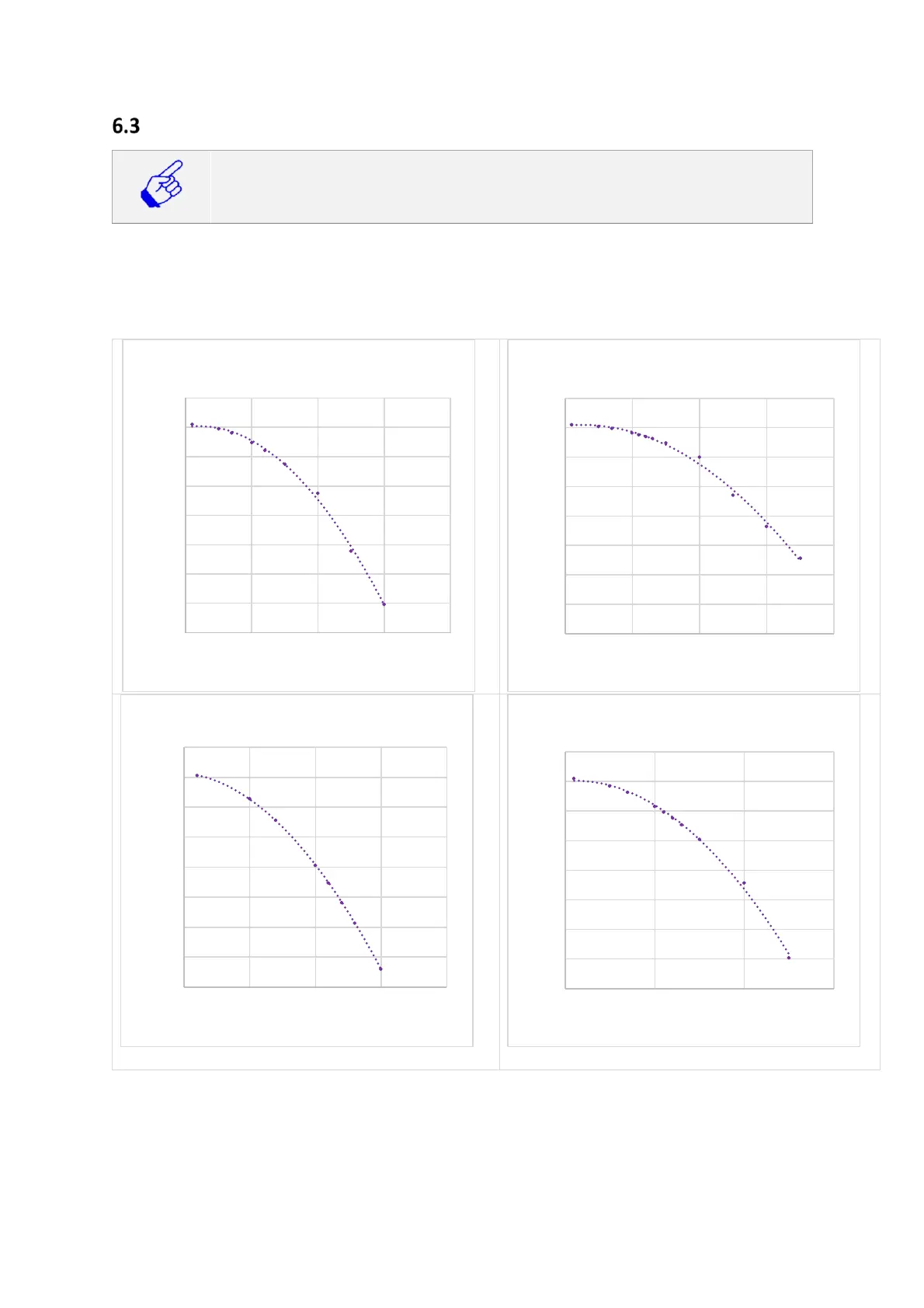

The below graphs show the available pump head for different ModuSat® models depending on the
secondary flow rate. The secondary apartment pressure drop (excluding the unit) should not exceed
the value shown.
0
10
20
30
40
50
60
70
80
0 0.1 0.2 0.3 0.4
Available pump head kPa
Flow rate l/s
ModuSat XR/XR-ECO XX-10
0
10
20
30
40
50
60
70
80
0 0.1 0.2 0.3 0.4
Available pump head kPa
Flow rate l/s
ModuSat XR/XR-ECO XX-20
0
10
20
30
40
50
60
70
80
0 0.05 0.1 0.15 0.2
Available pump head kPa
Flow rate l/s
ModuSat XR/XR-ECO XX-10R
0
10
20
30
40
50
60
70
80
0 0.1 0.2 0.3
Available pump head kPa
Flow rate l/s
ModuSat XR/XR-ECO XX-20R
