10 2551868AB

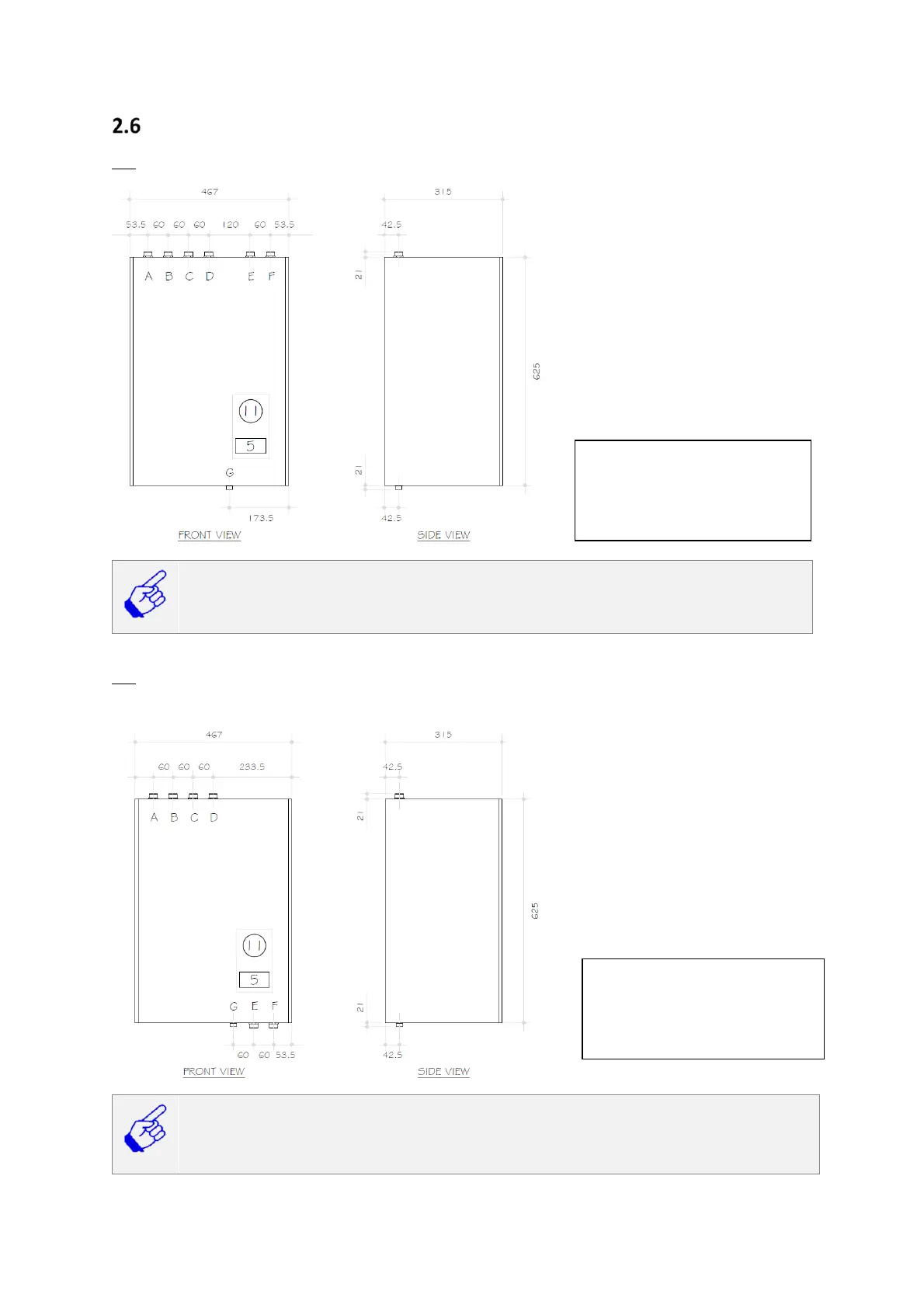

Typical Dimensions (connection configurations shown)
TL1 – ModuSat® XR Twin Plate 30/55/70-… & XR-ECO 30/55/70-… All Top Connections
Minimum space requirements for access and servicing: Top: 190 mm (To allow for H-type
flushing by pass), Front: 700 mm, Side: 50 mm, Bottom: Sufficient space to connect the drain.
Please Note: Flushing bypass to be installed on primary connections A & B.
TL5 – ModuSat® XR Twin Plate 30/55/70-… & XR-ECO 30/55/70-… Primary Flow & Return, Cold Water
& DHW at the Top. Secondary Heating Flow & Return at the Bottom
Minimum space requirements for access and servicing: Top: 190 mm (To allow for H-type flushing
by pass), Front: 700 mm, Side: 50 mm, Bottom: Sufficient space to connect the drain and a strainer
valve.
Please Note: Flushing bypass to be installed on primary connections A & B.
HIU Connections:
A, B, C, D, E, F: 3/4’’ BSPP male
thread.
G: 1/2’’ compression.
HIU Connections:
A, B, C, D, E, F: 3/4’’ BSPP male
thread.
G: 1/2’’ compression.
