Evinox ModuSat XR - Page 11

11 2551868AB

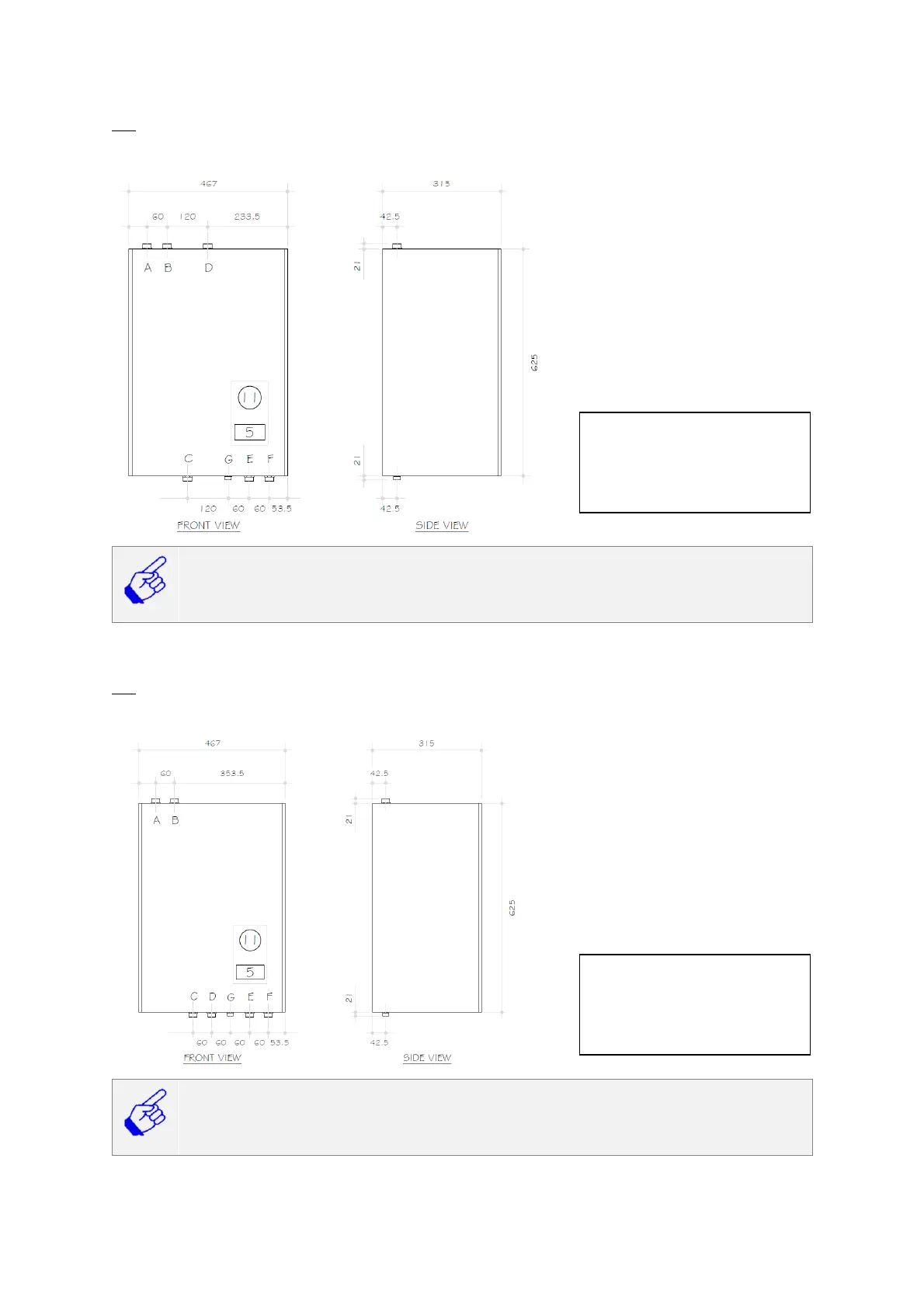

TL7 – ModuSat® XR Twin Plate 30/55/70-… & XR-ECO 30/55/70-… Primary Flow & Return and DHW
Connections Top. Cold Water Inlet and Secondary Heating Flow & Return Connections at the Bottom
Minimum space requirements for access and servicing: Top: 190 mm (To allow for H-type
flushing by pass), Front: 700 mm, Side: 50 mm, Bottom: Sufficient space to connect the drain and
a strainer valve.
Please Note: Flushing bypass to be installed on primary connections A & B.
TL8 – ModuSat® XR Twin Plate 30/55/70-… & XR-ECO 30/55/70-… Primary Top, Other Connections at
Bottom
Minimum space requirements for access and servicing: Top: 190 mm (To allow for H-type
flushing by pass), Front: 700 mm, Side: 50 mm, Bottom: Sufficient space to connect the drain and
a strainer valve.
Please Note: Flushing bypass to be installed on primary connections A & B.
HIU Connections:
A, B, C, D, E, F: 3/4’’ BSPP male
thread.
G: 1/2’’ compression.
HIU Connections:
A, B, C, D, E, F: 3/4’’ BSPP male
thread.
G: 1/2’’ compression.
