Evinox ModuSat XR - Page 12

12 2551868AB

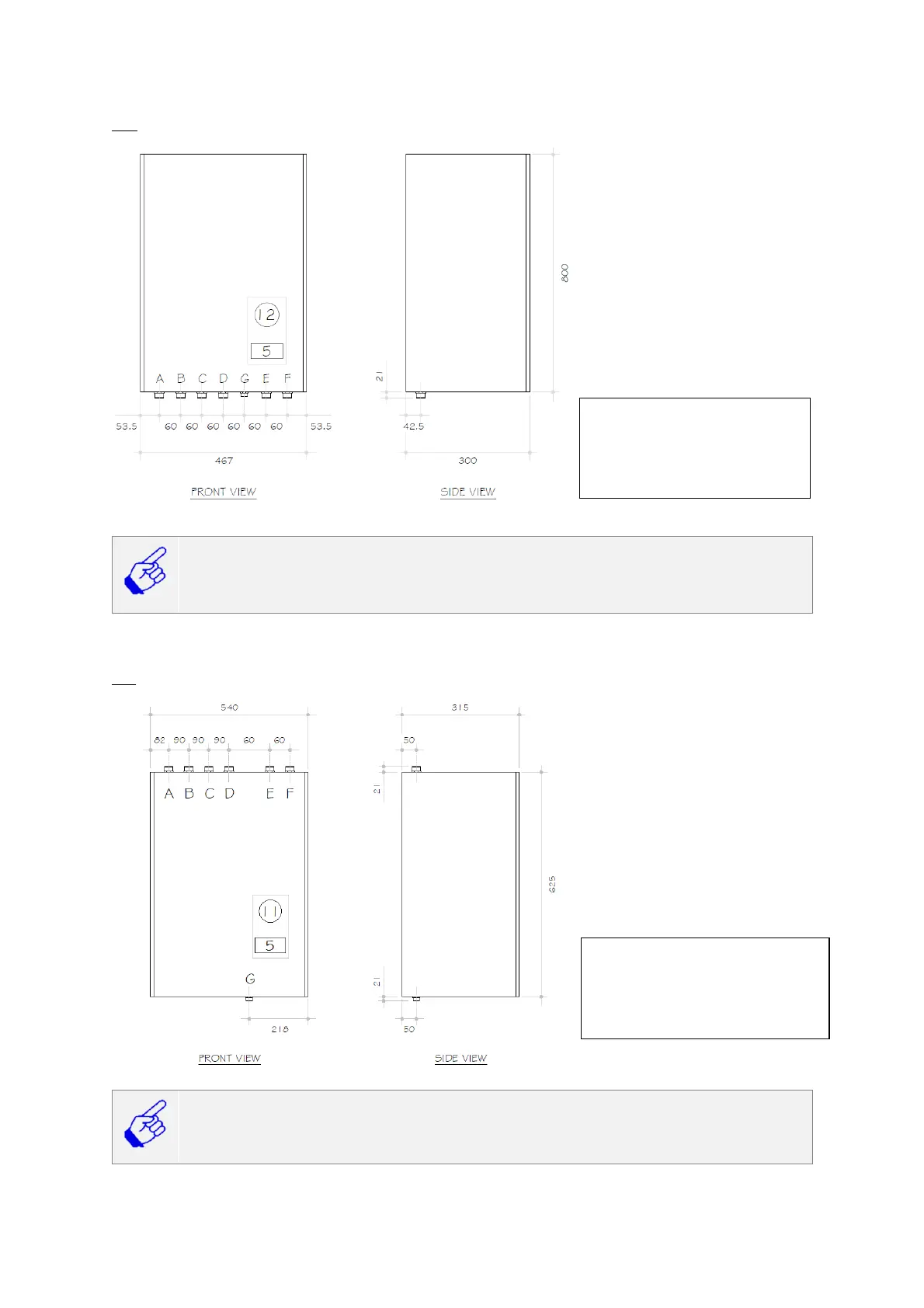

BL4 – ModuSat® XR Twin Plate 30/55/70-… & XR-ECO 30/55/70 All Connections at the Bottom
Minimum space requirements for access and servicing: Bottom: 190 mm (To allow for H-type
flushing by pass) or more if required for connecting the drain and a strainer valve, Front: 700 mm,
Side: 50 mm.
Please Note: Flushing bypass to be installed on primary connections A & B.
TL1 - XR 100-XX All Top Connections
2 8
Minimum space requirements for access and servicing: Top: 250 mm (To allow for H-type
flushing by pass), Front: 700 mm, Side: 50 mm, Bottom: Sufficient space to connect the drain.
Please Note: Flushing bypass to be installed on primary connections A & B.
HIU Connections:
A, B, C, D: 1’’ BSPP male thread.
E, F: 3/4’’ BSPP male thread.
G: 1/2’’ Compression.
HIU Connections:
A, B, C, D, E, F: 3/4’’ BSPP male
thread.
G: 1/2’’ compression.
