Evinox ModuSat XR - Page 13

13 2551868AB

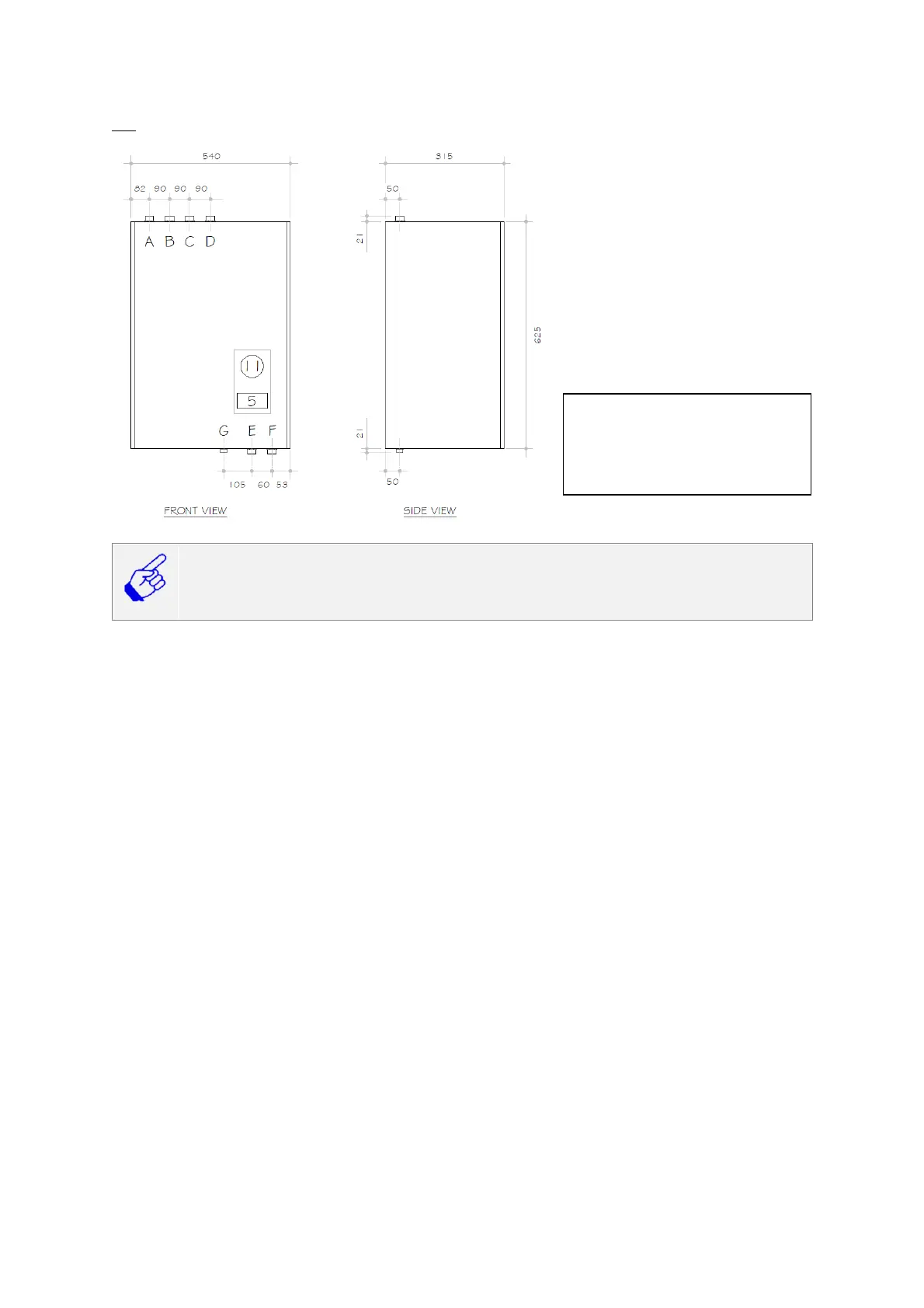

TL5 - XR 100-XX All Top Connections But Heating Flow & Return Bottom
Minimum space requirements for access and servicing: Top: 250 mm (To allow for H-type
flushing by pass), Front: 700 mm, Side: 50 mm, Bottom: Sufficient space to connect the drain and
a strainer valve.
Please Note: Flushing bypass to be installed on primary connections A & B.
HIU Connections:
A, B, C, D: 1’’ BSPP male thread.
E, F: 3/4’’ BSPP male thread.
G: 1/2’’ Compression.
