248
MIDSECTION

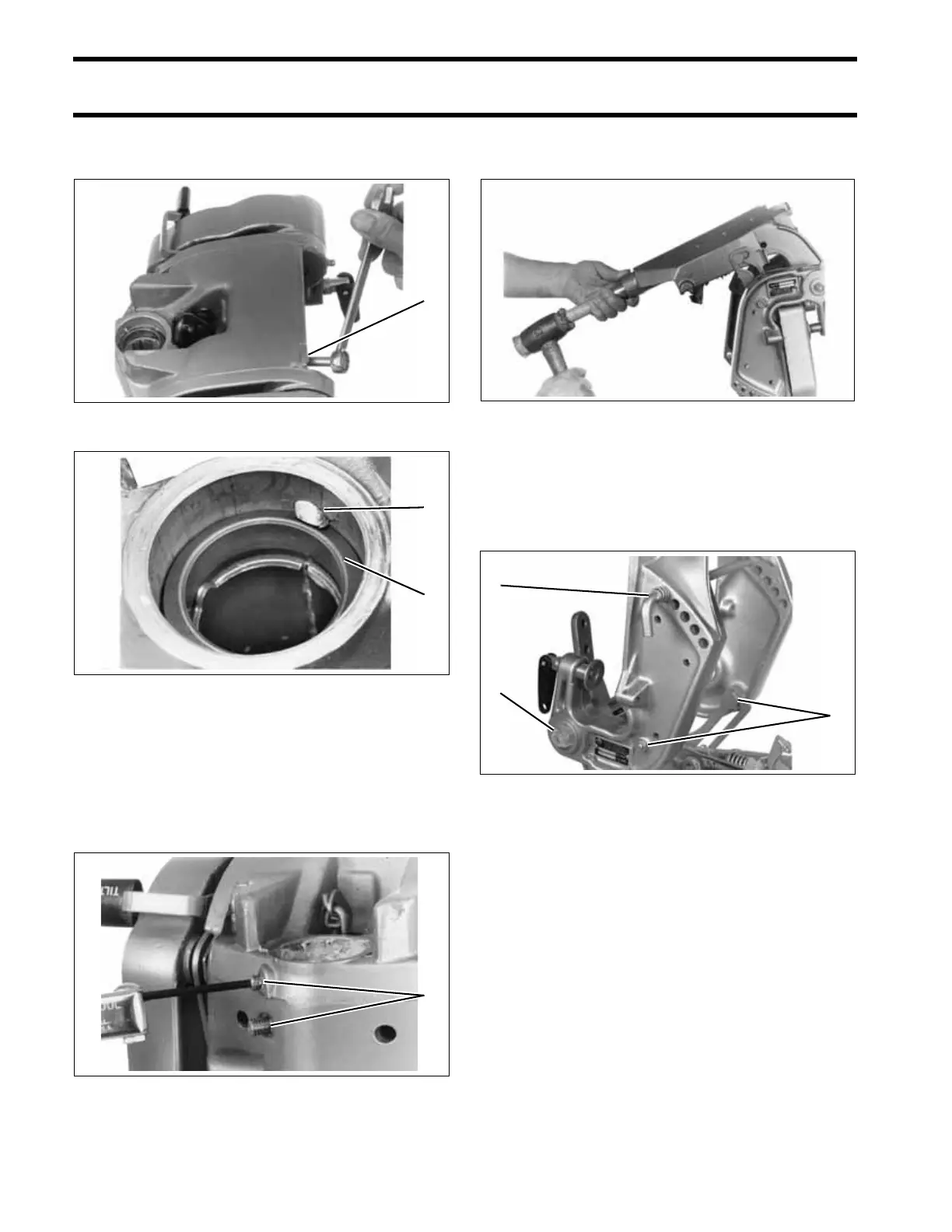

STERN BRACKET –MANUAL TILT MODELS
is flush with the inside surface of the casting,
remove the steering friction thrust ring.
Tighten the steering friction screw until the steer-
ing friction pin can be removed. Then, remove the
steering friction screw.
Remove the two setscrews from the swivel
bracket.
Drive the steering friction bushing up and out of
the swivel bracket.
Remove the thrust rod from the stern brackets.
Remove one tilt tube nut, and remove tilt tube
from the stern brackets and swivel bracket.
Remove the port and starboard stop link screws
and nuts from the stern brackets.
1. Steering friction screw COA2959
1. Steering friction pin
2. Steering friction thrust ring
COA2988
1. Setscrews COA2961
1
1
2
1
COA2974
1. Thrust rod
2. Tilt tube nut
3. Stop link screw and nut
COA2991R
3
1
2
