Evinrude E10EL4 User Manual

17
INSTALLATION
4

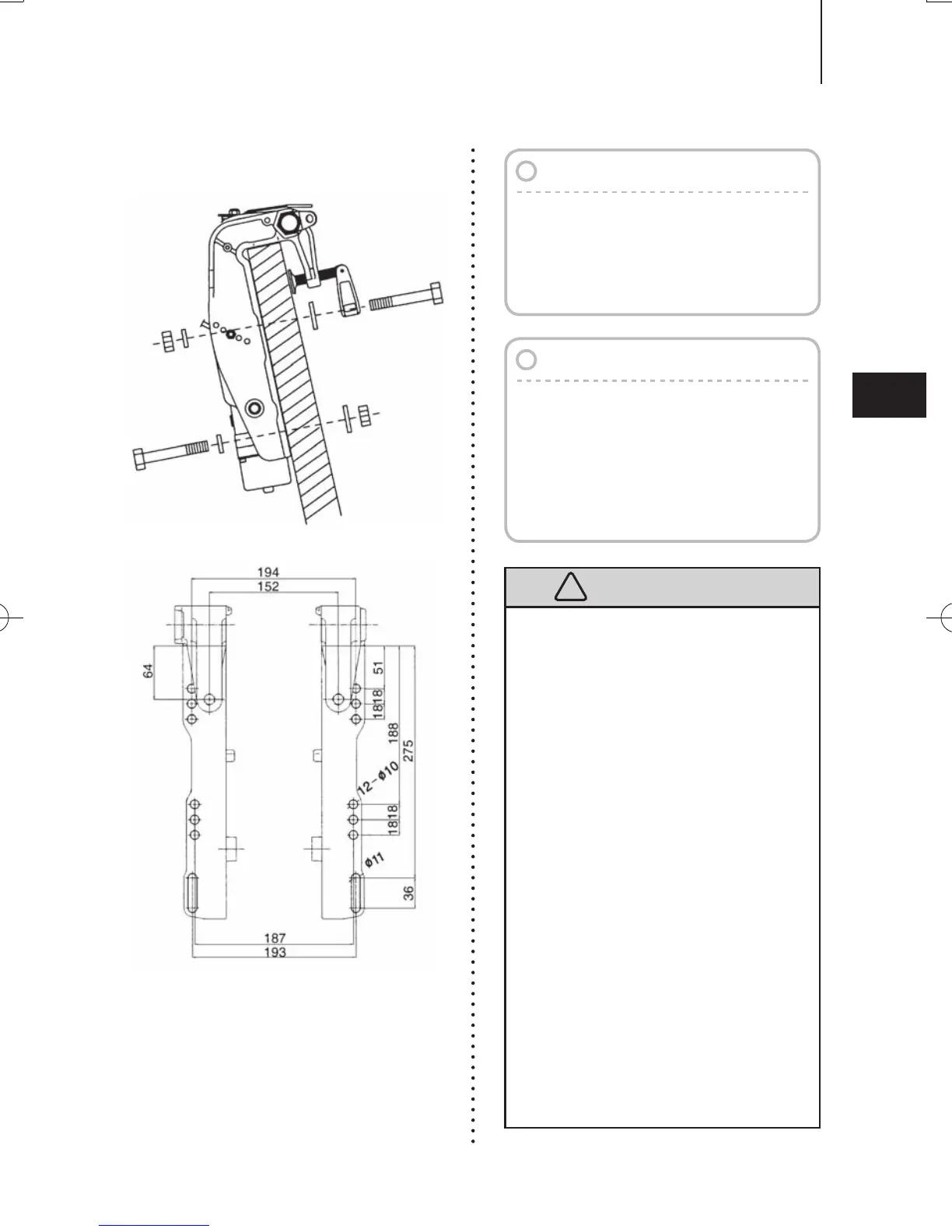

TP, P type (Power tilt model)
Notes
1. Apply sealing agent such as silicone
sealed between the bolts and
transom board holes before tightening
the bolts.
2. Be sure to tighten mounting bolt nuts
to the specified torque.
(30 Nm(3.0kgf)13ft·lb)
Note
It is recommended to install upper
mounting bolts with bolt head at
inside surface of transom. Bolts with
threaded end at inside surface of
transom can cause personal injury.
!
WARNING
●
Mounting outboard motor without fol-
lowing this manual can lead to unsafe
conditions such as poor maneuverability,
going out of control or fire disaster.
●
Loose clamp screws and/or mounting
bolts can lead to coming off or dis-
placement of outboard motor, possibly
going out of control or causing serious
personal injury. Be sure that fasteners
are tightened to the specified torque (30
Nm (3.0kgf)13ft·lb). Check fasteners for
tightness from time to time.
●
Be sure to use outboard mounting
fasteners included in outboard motor
package delivered or their equivalents
in terms of size, material, quality and
strength.
Tighten fasteners to the specified torque
(30 Nm (3.0kgf)13ft·lb). Test cruise to
check if fasteners are tightened secure-
ly.
●
Outboard motor mounting must be
performed by trained service person(s)
using lift or hoist with sufficient capacity.
