19
INSTALLATION
4
Green
Green
Red
Red
Red
Red
Blue
Blue
Blue
Yellow
Brown
Brown
Brown
Brown
Black
Black
Black
Drag link
Sleeve
From
Remote
Control Box
Brown
Brown
Black
Black
Green
Blue
Red
③

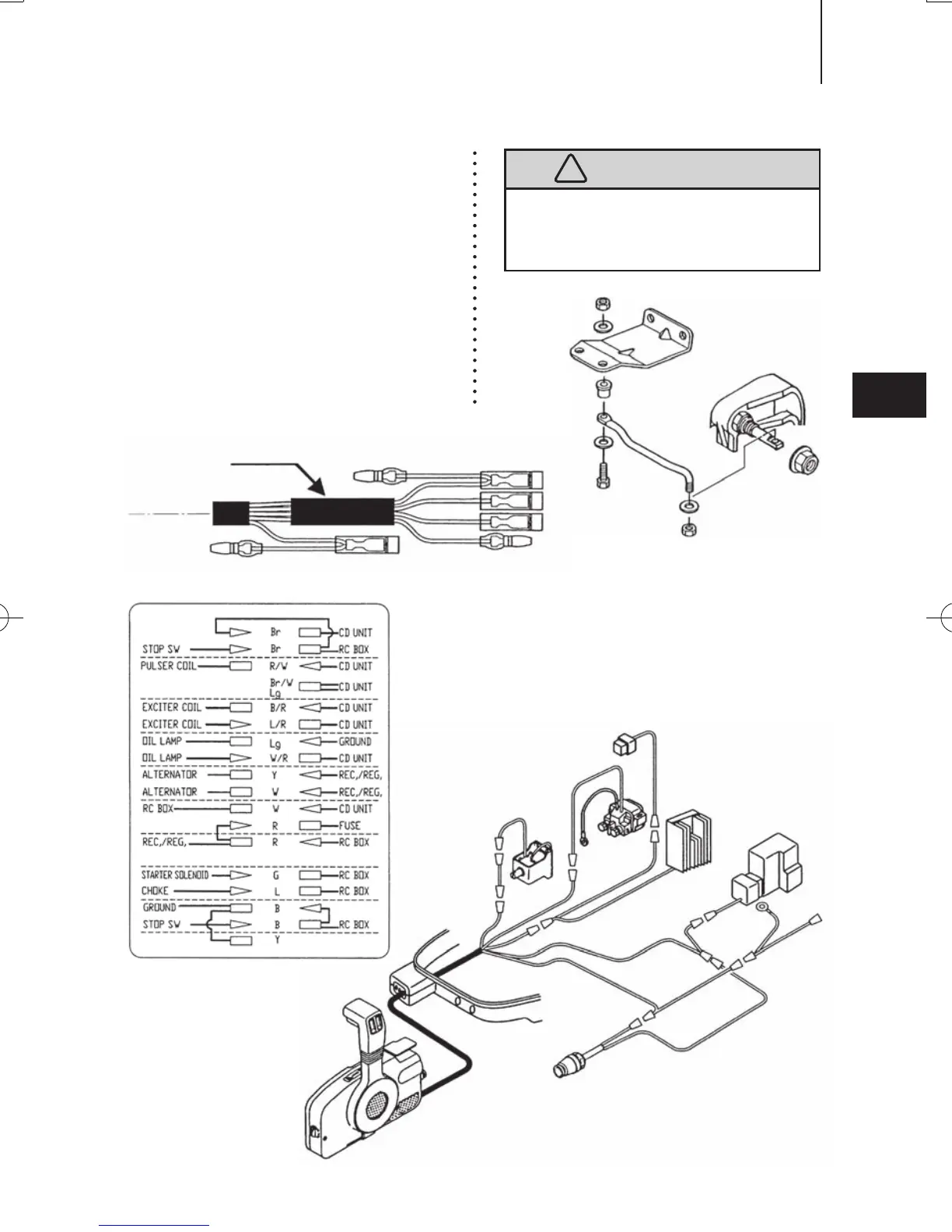

Connecting the Cord assembly
(Wiring Harness)
Pass the Cord assembly from the
Remote control box through the
hole in the Lower motor cover and
cover the wire ends with the Sleeve
(provided in a tool bag) and then
co n n e c t t h e e l e ctr i c t e r m i nal s
according to the drawing below.
E model
E model
!
WARNING
Do not disconnect cord ass'y when
engine is in operation, or engine will go
out of control.
