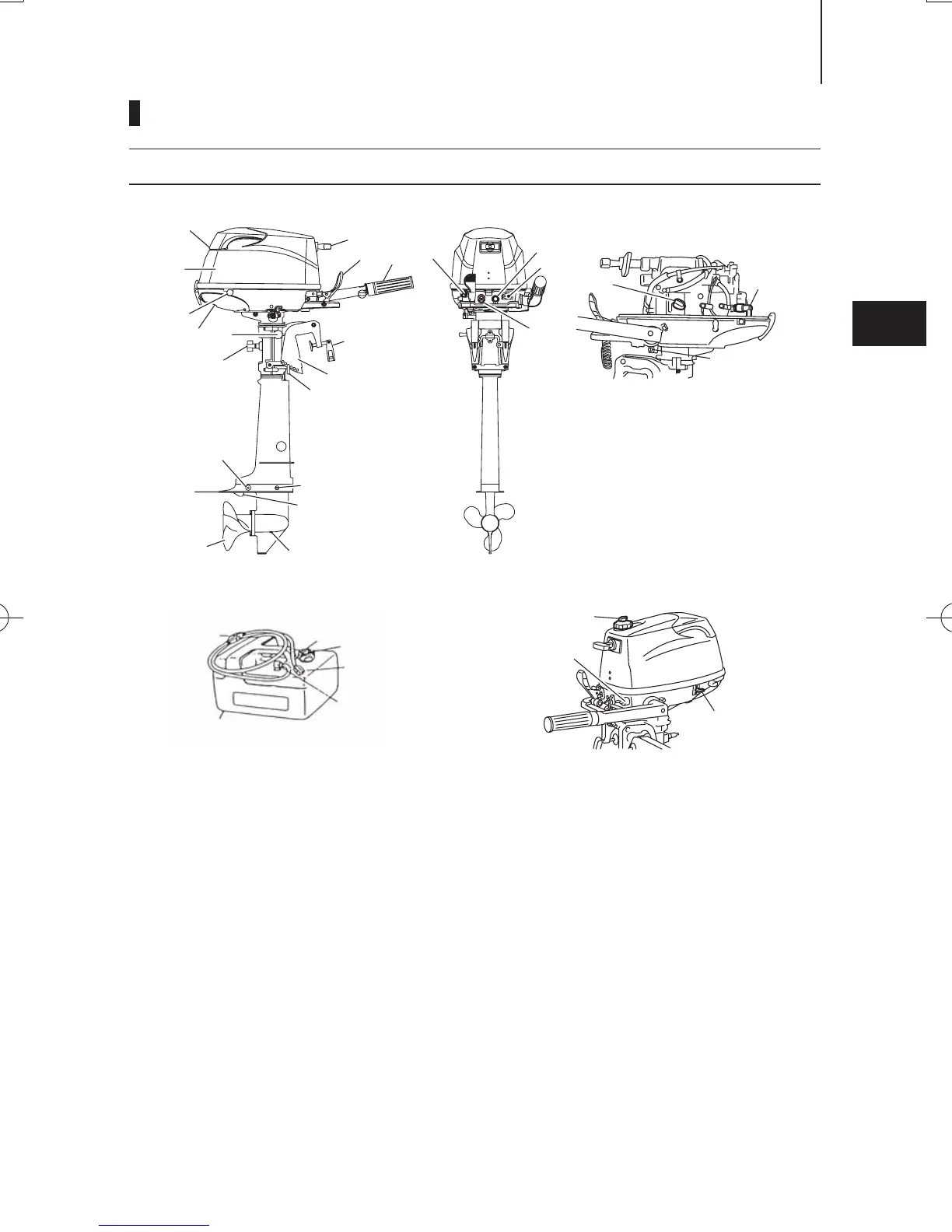

NAMES OF PARTS
2
①
②
④
⑤
⑥
⑦
⑧
⑨
⑩
⑪
⑫
⑬
⑭
⑮
⑯
⑰
⑱
⑲
⑳
㉑
㉒
○
23
○
24
○
25
○
26
○
27
○
28
○
29
○
30
○
31
○
32
○
33
○
34
③
①
②
③
④
⑤
⑥
⑦
⑧
⑨
⑩
○
11
○
12
○
13
Tilt Handle
Top Cowl
Bottom Cowl
Cooling Water Check Port
Tilt Lever
Steering Adjustment Screw
Anode
Anti Ventilation Plate
Propeller
Oil Plug (Lower) (Fill)
Water Inlet
Oil Plug (Upper) (Level)
Thrust Rod
○
14
○
15
○
16
○
17
○
18
○
19
○
20
○
21
○
22
○
23
○
24
○
25
○
26
Clamp Bracket
Clamp Screw
Throttle Grip
Shift Lever
Starter Handle
Choke Knob
Stop Switch
Fuel Connector
Warning Lamp
Air Vent Screw
Fuel Connector
Fuel Cock
Primer Bulb
○
27
○
28
○
29
○
30
○
31
○
32
○
33
○
34
Fuel Tank
Fuel Pick up Elbow
Fuel Connector
Air Vent Screw
Fuel Tank Cap
Engine Oil Filter Cap
Spark Plug
Engine Oil Drain Screw
