16 - General Information
REMOTE CONTROL
IMPORTANT: When selecting the remote control system for your boat, specify Evinrude/Johnson com-
ponents.
Evinrude/Johnson offers remote controls, cables and wiring kits designed specifically for your
Evinrude/Johnson outboards. Evinrude/Johnson controls deliver the cable stroke your outboard needs for
positive shift and throttle control, and they incorporate such safety and convenience features as:
• Start-in-gear prevention
• Plug-in compatibility with
Evinrude/Johnson modular wiring system

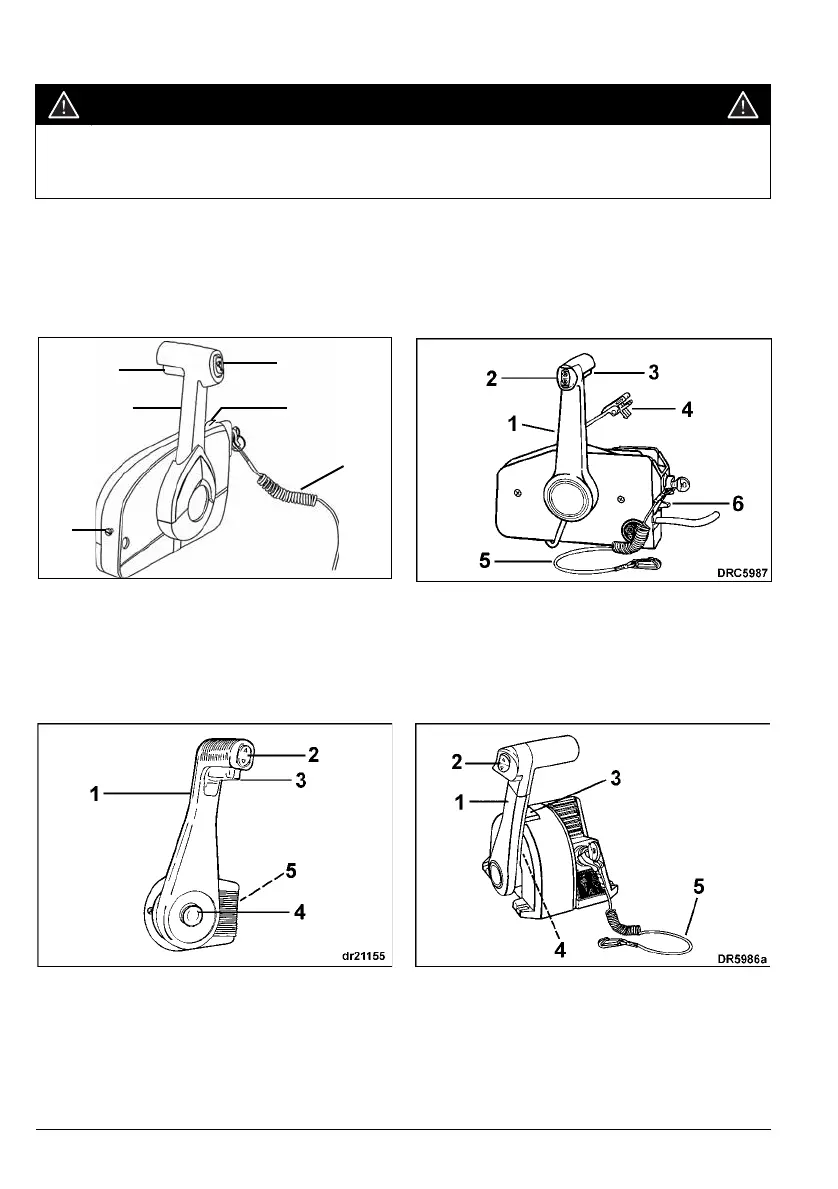

Evinrude/Johnson Redesigned side mount control
1. Handle - shift and throttle
2. Trim/tilt switch (where equipped)
3. Neutral lock tab
4. Fast idle lever
5. Throttle friction control
6. Emergency stop clip and lanyard
Evinrude/Johnson Concealed side mount control
1. Handle - shift and throttle
2. Trim/tilt switch (where equipped)
3. Neutral lock tab
4. Fast idle button
5. Throttle friction control
Evinrude/Johnson Side mount control
1. Handle - shift and throttle
2. Trim/tilt switch (where equipped)
3. Neutral lock tab
4. Fast idle lever
5. Emergency stop clip and lanyard
6. Throttle friction control
Evinrude/Johnson Binnacle mount control
1. Handle - shift and throttle
2. Trim/tilt switch (where equipped)
3. Fast idle button
4. Throttle friction control
5. Emergency stop clip and lanyard
WARNING
If you choose a non- Evinrude/Johnson remote control, be sure it has a start-in-gear preven-
tion feature. This feature can prevent injuries resulting from unexpected boat movement when
the engine starts.
