46 - Maintenance

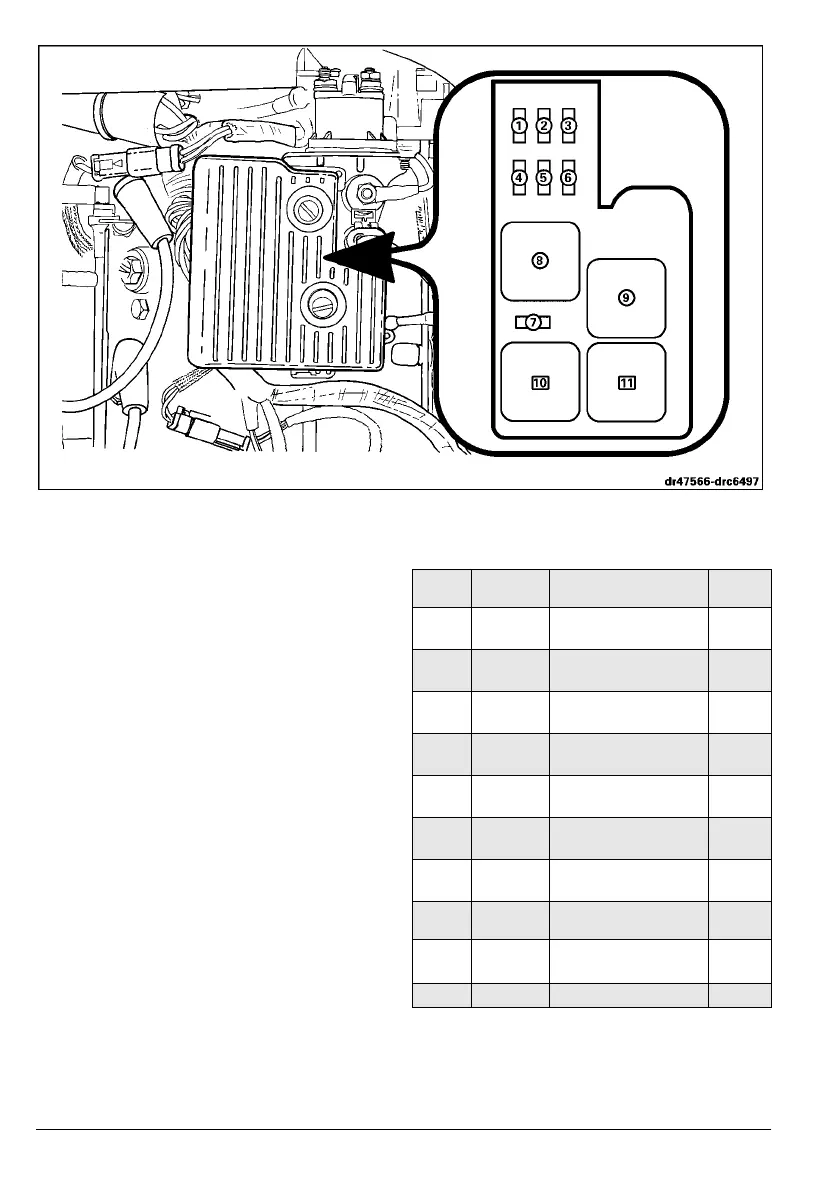

POWER DISTRIBUTION PANEL
A power distribution panel on your outboard con-
trols and protects the electrical systems. The panel
includes 7 mini-fuses and 4 power relays. The cov-
er holds spare fuses and a puller. Refer to Fuse
Panel Chart for rating, color, position, and circuit
information.
Be sure that all active and spare fuses are in good
condition. Always carry spare fuses.
Fuse Failure
A minor electrical problem can blow a fuse. Re-
place it with a fuse of the same rating.
Repeated failures of fuses in the same position in-
dicate a serious problem. Do not replace with high-
er rated fuses; see your Dealer for service.
Fuse Replacement
Remove the retaining screws and panel cover.
Identify and remove the failed fuse; install a good
fuse of the same rating.
Install the panel cover and screws; tighten securely.
IMPORTANT: Failure to install the panel cover se-
curely will cause electrical problems.
Fuse Panel Chart
Pos. Rating
& Color
Circuit P/N
1 10-Amp
Red
Oil Injector 514766
2 10-Amp
Red
V4 - No. 1 & 3 Injectors
V6 - No. 1 & 4 Injectors
514766
3 10-Amp
Red
V4 - Spare Fuse
V6 - No. 3 & 6 Injectors
514766
4 10-Amp
Red
Fuel Pump 514766
5 10-Amp
Red
Ignition Circuit 514766
6 10-Amp
Red
V4 - No. 2 & 4 Injectors
V6 - No. 2 & 5 Injectors
514766
7 10-Amp
Red
Key Switch,
EMM
,
Accessories
514766
8 Relay
EMM
, Ignition and Stop
Circuits
586224
9
11
Relay Power Trim/Tilt 586224
10 Relay Fuel Pump 586224
