INSTALLATION INSTRUCTIONS
Affinity 30G
Evo, Inc. | 8140 SW Nimbus Ave., Bldg 5 | Beaverton, Oregon 97008 USA
Phone 503.626.1802 | Fax 503.213.5869 | www.evoamerica.com | support@evoamerica.com
11
27
19
32
"
701.04mm
27
3
4
"
704.85mm
1
15
32
"
37.16mm
R18
1
8
"
460.38mm
13
1
8
"
333.38mm
26
23
32
"
678.51mm
13
13
16
"
350.52mm

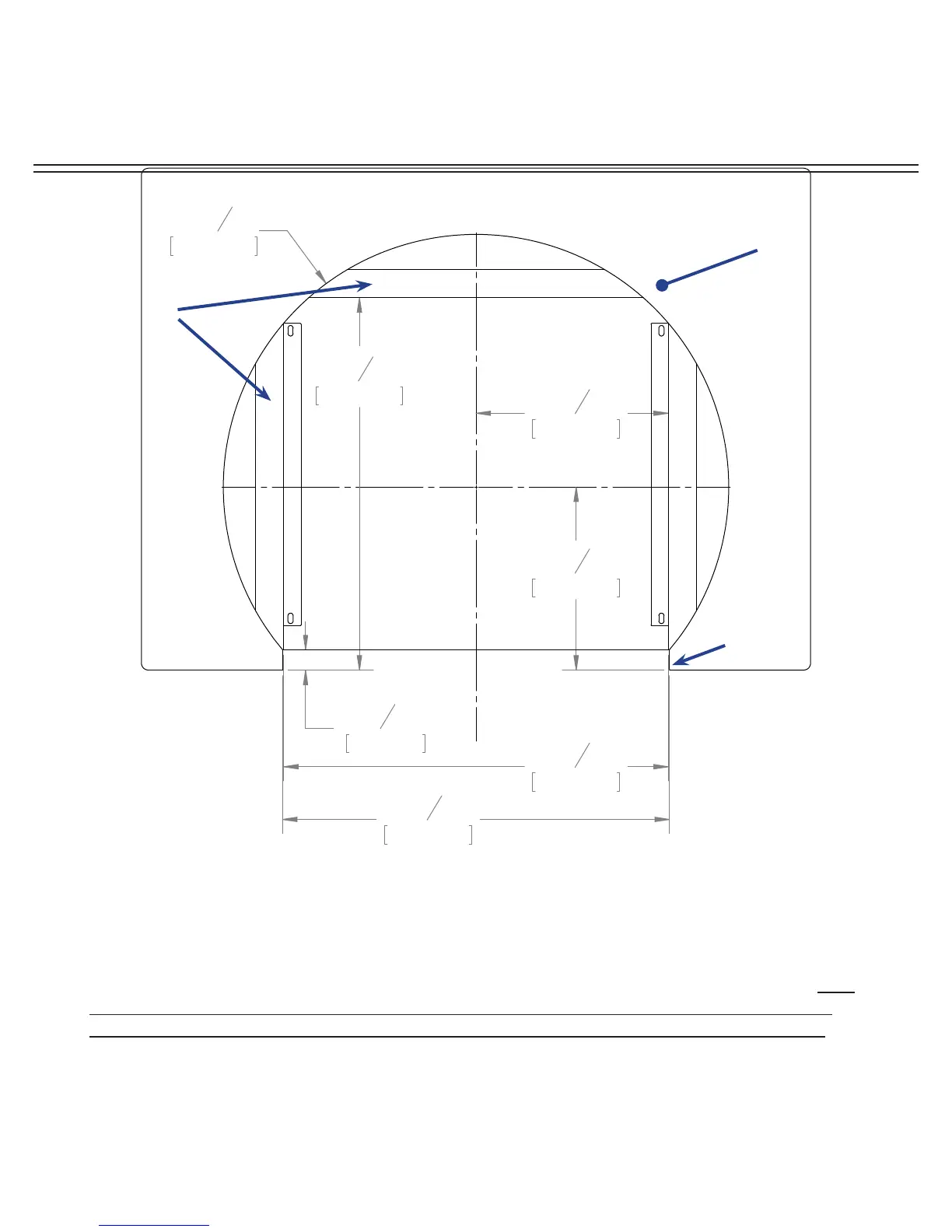

STEP 2: Mark the fi nished position of the Evo Affi nity 30G drip pan on the countertop using
the dimensions shown. The circular dimension of 18-1/8” is the diameter of the drip pan to
the outside fl ange material thickness (located to the inside of the half-rolled bead edge). The
drip pan cutout must be made precisely to these dimensions (or at a maximum +1/16”) so
that the half-rolled top bead on the drip pan edge overhangs the cutout dimension by .25”.
(See following page for more details).
Countertop with substrate
underlayment
OPENING IN COUNTERTOP FRONT
Countertop
overhang to
cabinet front
Cabinetry Box:
minimum 3 cm
below countertop
surface
TOP VIEW
COUNTERTOP INSTALLATION (1 of 4)
To Next Page
