INSTALLATION INSTRUCTIONS
Affinity 30G
Evo, Inc. | 8140 SW Nimbus Ave., Bldg 5 | Beaverton, Oregon 97008 USA
Phone 503.626.1802 | Fax 503.213.5869 | www.evoamerica.com | support@evoamerica.com
12
COUNTERTOP INSTALLATION (2 of 4)
STEP 2 continued: Make sure cabinetry box is 3cm (minimum) below countertop surface
and mounting brackets are positioned correctly so drip pan and chassis are aligned to
countertop(see diagrams above). A black o-ring is recessed in the top bead and designed to
create a seal against the countertop.
Also ensure allowance for the countertop overhang as shown on the SIDE VIEW (see next
page).
When you have confi rmed the position is correct, cut the countertop and substrate.

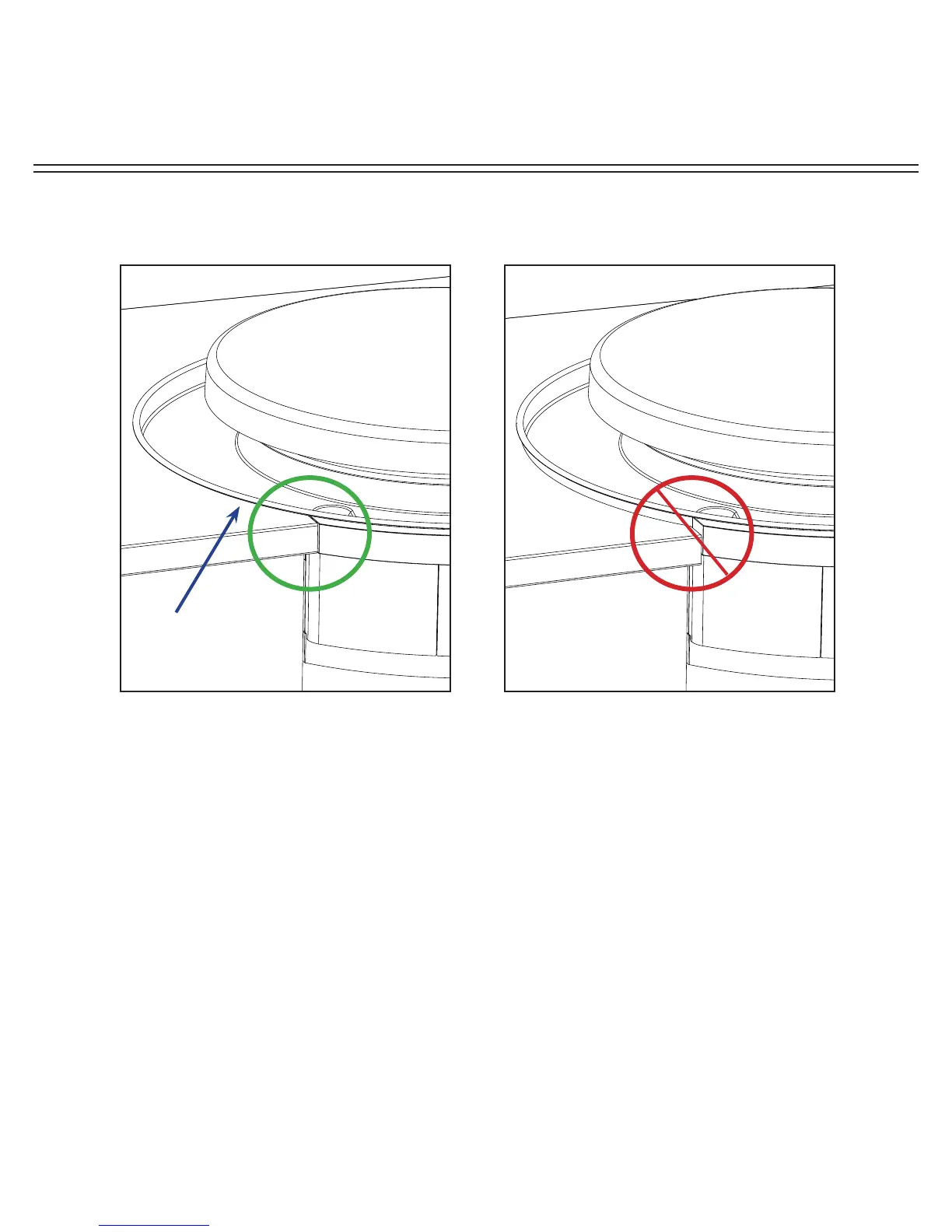

CORRECT ALIGNMENT OF DRIP PAN
AND CHASSIS TO COUNTERTOP
INCORRECT ALIGNMENT OF DRIP PAN
AND CHASSIS TO COUNTERTOP
Possible reasons for incorrect alignment:
1. Top of cabinetry box is less than 3 cm
from countertop
2. Chassis mounting brackets are too high.
Black o-ring under
drip pan bead
