Evo Affinity 30G - Drip Pan and Gasket Securing; Finalizing Drip Pan Installation

INSTALLATION INSTRUCTIONS
Affinity 30G
Evo, Inc. | 8140 SW Nimbus Ave., Bldg 5 | Beaverton, Oregon 97008 USA
Phone 503.626.1802 | Fax 503.213.5869 | www.evoamerica.com | support@evoamerica.com
17

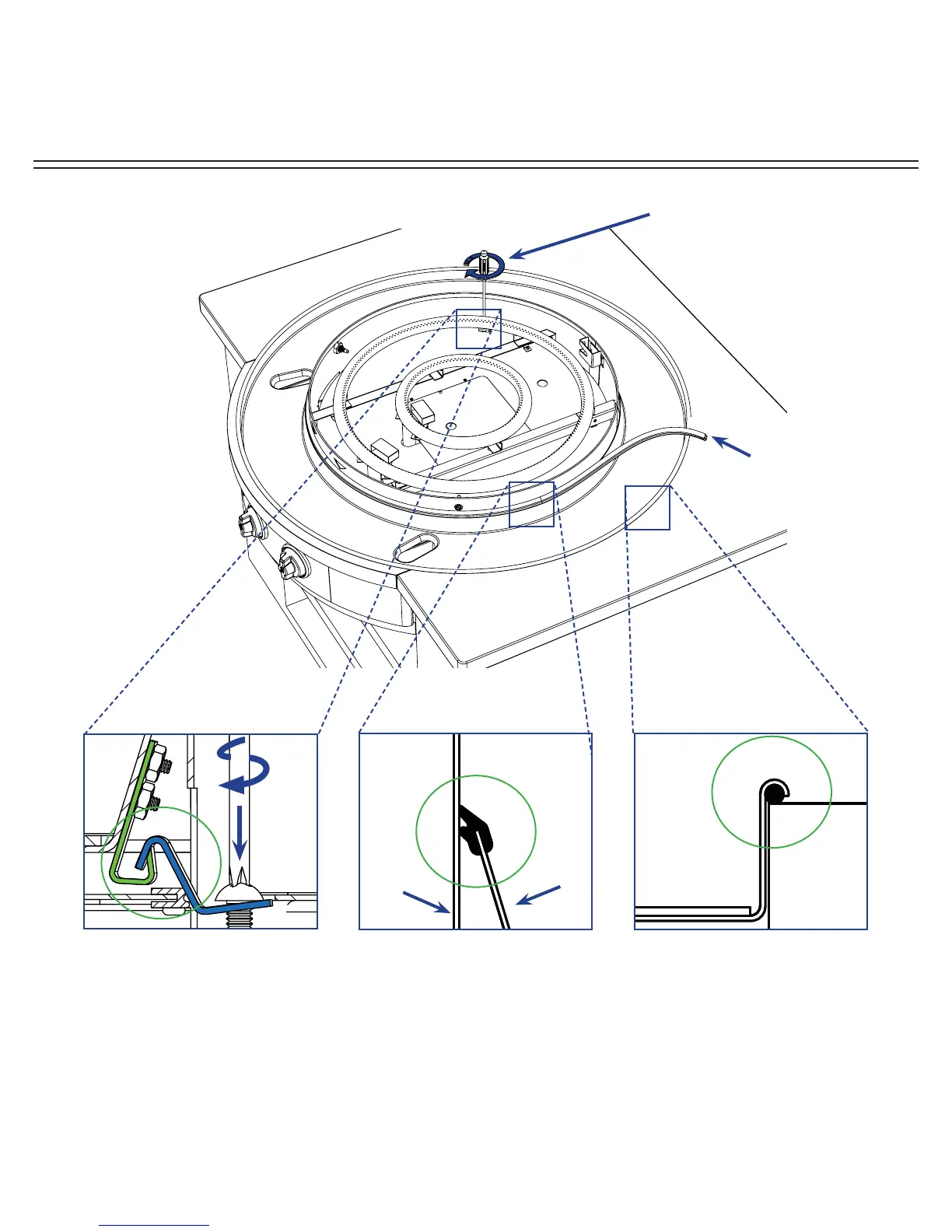

STEP 6: Secure drip pan to chassis using access slot (A). Rewrap drip pan gasket around
top of drip tray and secure (B). Ensure seal under drip pan edge is touching countertop(C).
drip pan gasket -
seam at rear
DRIP PAN AND GASKET INSTALLATION
CROSS SECTION OF
CHASSIS ACCESS SLOT
Hook drip pan latch under
chassis catch and tighten
screw at chassis access slot.
A
Slip gasket ring onto top of
drip pan so it creates a seal to
the chassis skirt.
CROSS SECTION OF
DRIP PAN TOP
CROSS SECTION OF
DRIP PAN EDGE
Ensure the black seal under
the drip pan bead edge is
touching the countertop.
BC
drip pan
countertop
drip pan
chassis
skirt
Use No. 3 Phillips screwdriver to
secure drip pan
at the access points.
