INSTALLATION INSTRUCTIONS

Affinity 30G

Evo, Inc. | 8140 SW Nimbus Ave., Bldg 5 | Beaverton, Oregon 97008 USA

Phone 503.626.1802 | Fax 503.213.5869 | www.evoamerica.com | support@evoamerica.com

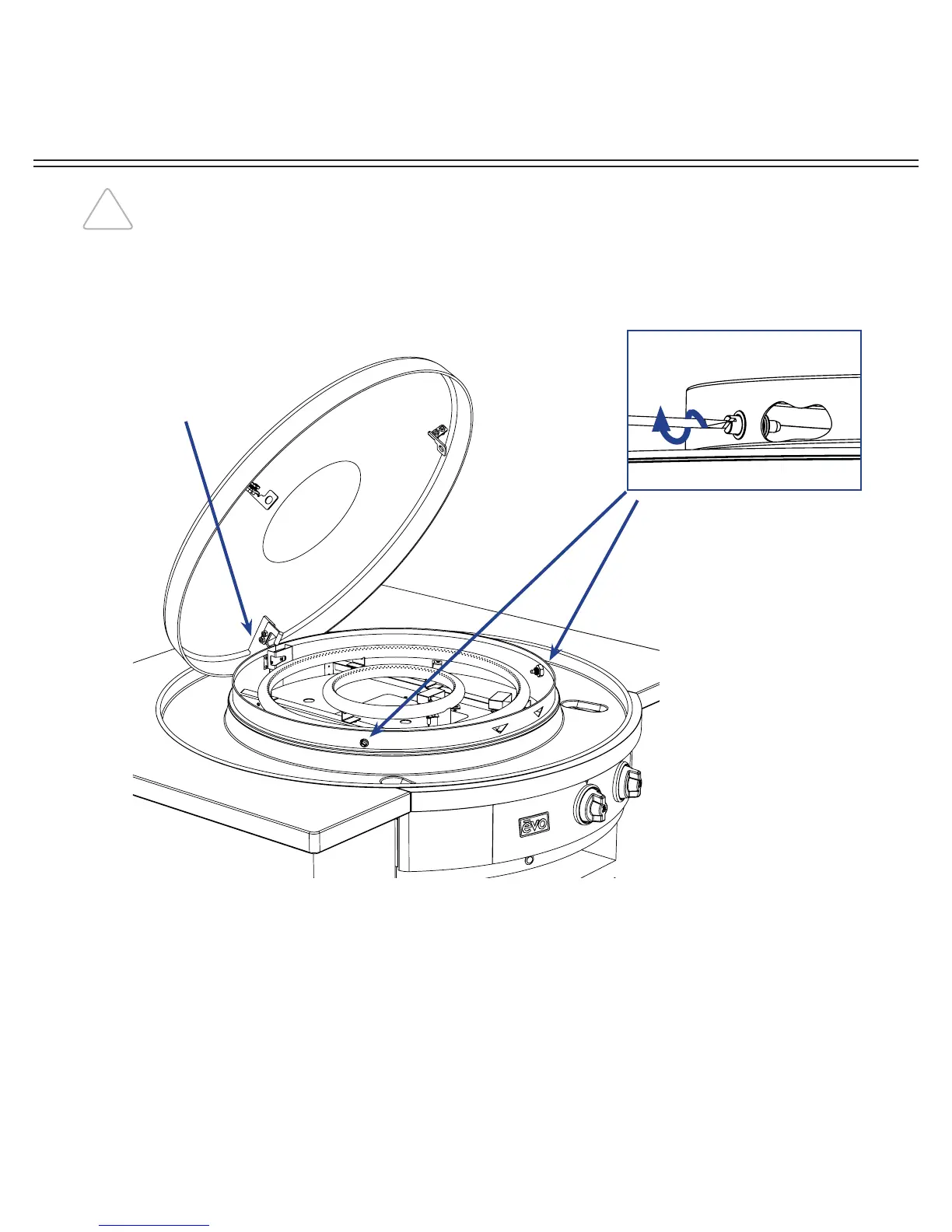

STEP 7: Before picking up cook surface, rotate each of the two slotted captive fastener

screws counter-clockwise and back them out fully. Then position the cook surface at the rear

of the burner chassis by placing the cook surface in the area of the drip pan, separated by a

towel or cardboard to prevent damage to the drip pan.

CONNECTING COOK SURFACE

Using a Phillips #3 Flat

Screwdriver, back out each

of the two front captive

fasteners on the chassis

skirt counter-clockwise

until they stop. Do not twist

fastener beyond the stop.

SIDE VIEW OF FRONT

CAPTIVE FASTENERS

Place suitable

protection on drip pan

(towel or cardboard).

Place cook surface

vertically with Bullet

Fastener facing

downward.

IT IS RECOMMENDED THAT TWO INSTALLERS BE PRESENT INSTALL THE

COOK SURFACE.
