Evo Affinity 30G - Cook Surface Attachment; Attaching the Cook Surface

INSTALLATION INSTRUCTIONS
Affinity 30G
Evo, Inc. | 8140 SW Nimbus Ave., Bldg 5 | Beaverton, Oregon 97008 USA
Phone 503.626.1802 | Fax 503.213.5869 | www.evoamerica.com | support@evoamerica.com
19

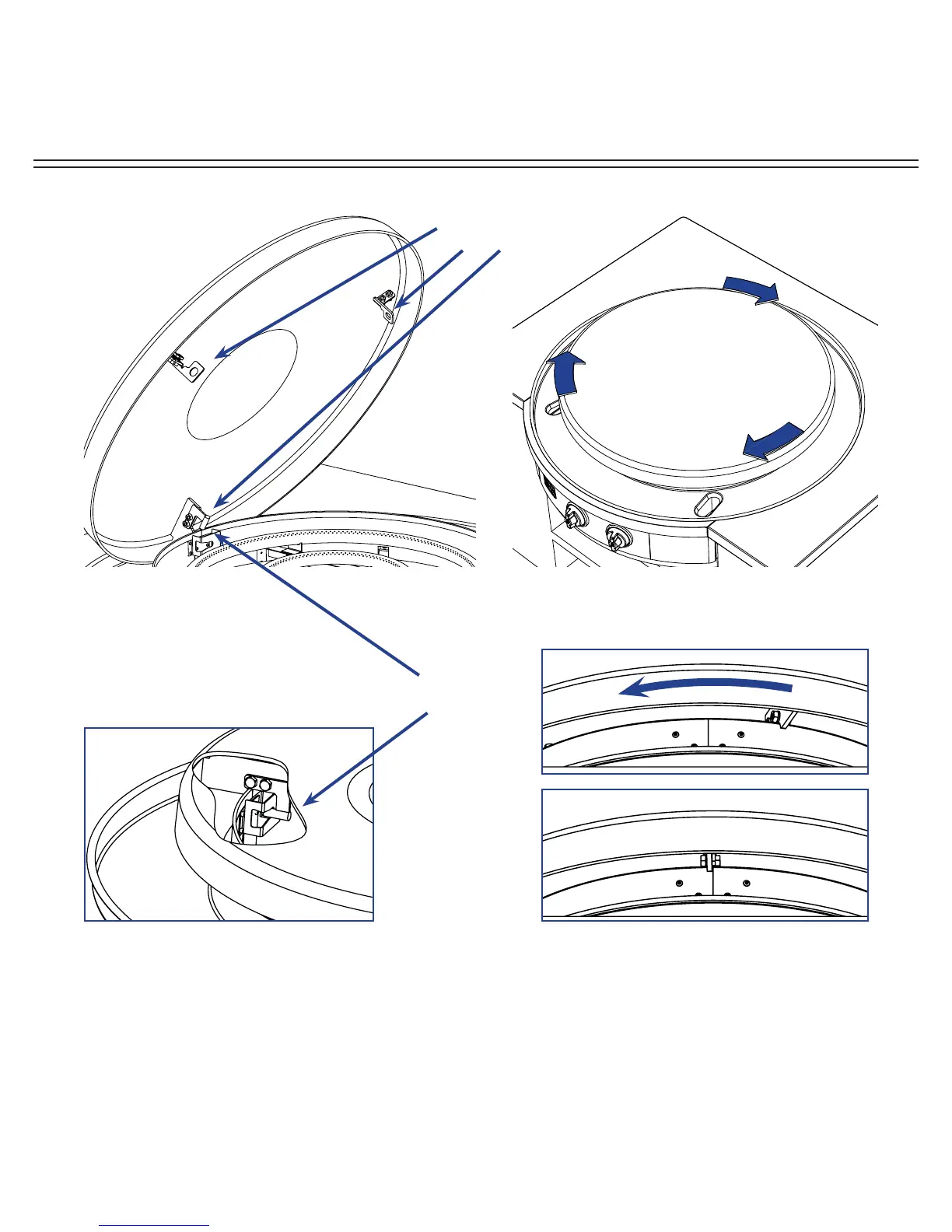

STEP 8: Before lowering cook surface, ensure the two slotted captive fastener screws are
backed out fully (see page 18). Then place cook surface over circular skirt with the three
support tabs (located under cook surface) resting on the chassis skirt top. Position the rear
support tab of the cook surface to the right of the rear seam of the chassis skirt (A). Then
rotate the cook surface clockwise until the support tab is in line with the seam (B) and the
rear bullet secures in the chassis slot (C) .
Cook surface
support tabs
INSTALLING COOK SURFACE
BOTTOM-UP VIEW OF
REAR COOK SURFACE
CUT AWAY VIEW OF REAR COOK
SURFACE SHOWING BULLET
ENGAGED IN CHASSIS SLOT
A
B
C
Rear bullet
