INSTALLATION INSTRUCTIONS
Affinity 30G
Evo, Inc. | 8140 SW Nimbus Ave., Bldg 5 | Beaverton, Oregon 97008 USA
Phone 503.626.1802 | Fax 503.213.5869 | www.evoamerica.com | support@evoamerica.com
22

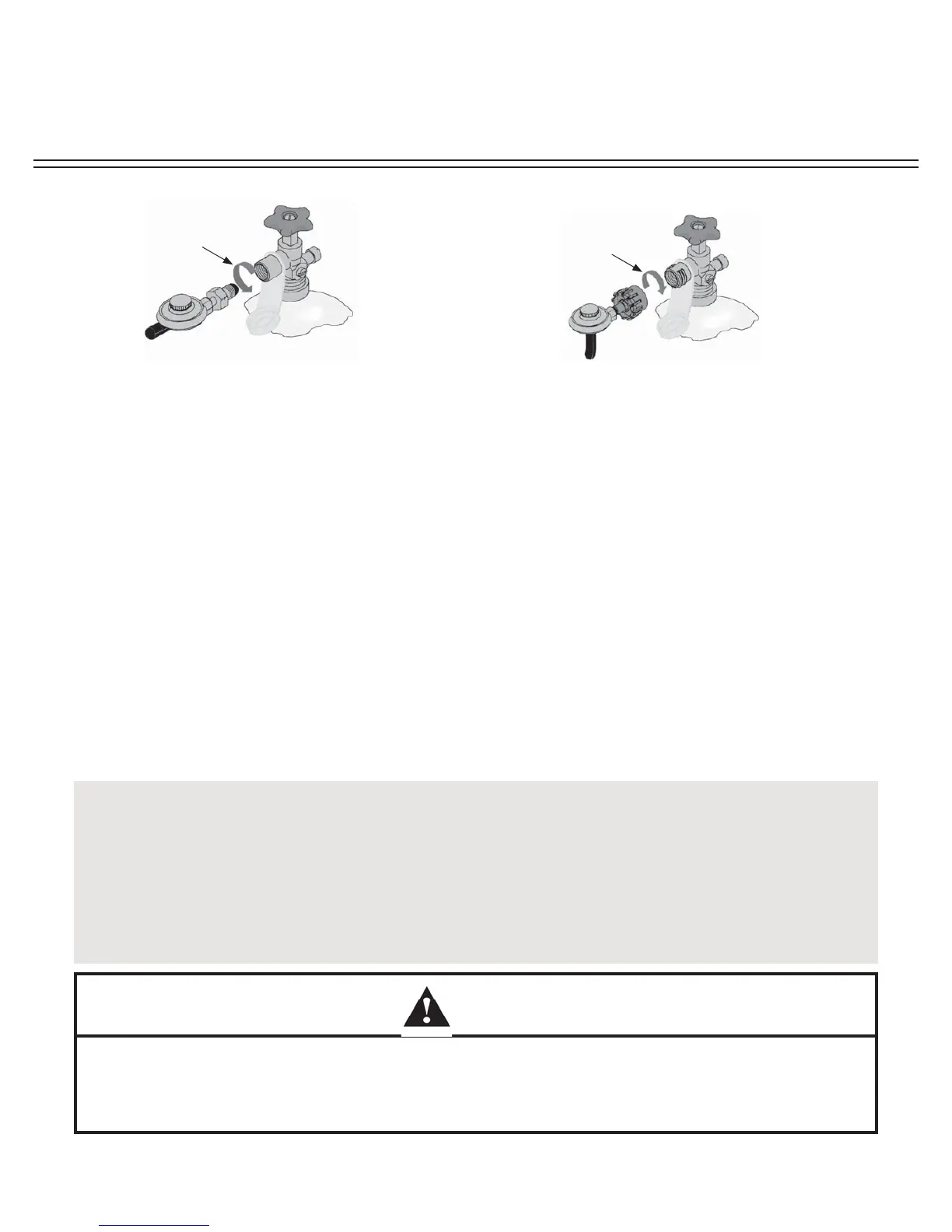

CONNECTING GAS - LP CYLINDER CONNECTION
Standard POL Regulator Install
Figure 1
Gas LP Cylinder
Regulator
& Hose
Gas Shutoff Valve
Tighten This Direction
Protective
Cap
Figure 2
Quick Disconnect Hand-Wheel Regulator Install
Gas LP Cylinder
Gas Shutoff Valve
Regulator
& Hose
Tighten This Direction
Protective
Cap
The cylinder must include a collar to protect the the cylinder valve
Note: Cylinder Collor removed from these illustrations for clarity
1. Be sure both grill burner valves are in the Off position.
2. Make sure the gas tank valve is off and in the closed position by turning clockwise (left to
right) to a full stop.
3. Remove the protective cap from the gas cylinder valve.
4. Hold regulator in one hand and position the plastic coupling nut on the cylinder valve outlet
threads using care to engage the center of the coupling nut to the center of the cylinder
valve outlet. When completing this procedure, take care to not cross-thread the connection.
5. Observe the direction in Figure 1 and Figure 2 for installing the regulator threads to the
cylinder valve. For a Standard POL Regulator turn the coupling nut counterclockwise (right
to left) and tighten to a full stop. For the Quick Disconnect Regulator turn the coupling nut
clockwise (left to right) and tighten to a full stop.
In the connection process, the regulator will seal on the back-check feature in the cylinder
valve resulting in a slight resistance. The connection requires about a 1/2 to 3/4 additional turn
to complete the connection. Tighten by hand only - do not use tools. If you cannot make the
connection, disconnect the regulator and repeat steps 4 and 5.
STORAGE & REMOVAL of LP GAS TANK:
Never store LP gas cylinder indoors. When grill is stored indoors, shut cylinder valve
off and disconnect cylinder from grill and remove to an outdoor location. Cylinder must
be stored outdoors in well-ventilated area, away from and out of the reach of children.
Loosen coupling nut located on regulator and cylinder valve by turning counterclockwise using
hands only - do not use tools. Next loosen thumb screws securing cylinder to lower rack and
remove tank. Install safety cap over cylinder valve coupling.
Do not store spare LP gas cyclinder under or near this appliance.
Never fi ll cylinder beyond 80% full.
If the above information is not followed exactly, a fi re causing death or serious injury
may occur.
WARNING
