11
4. Installation
4.Installation
12

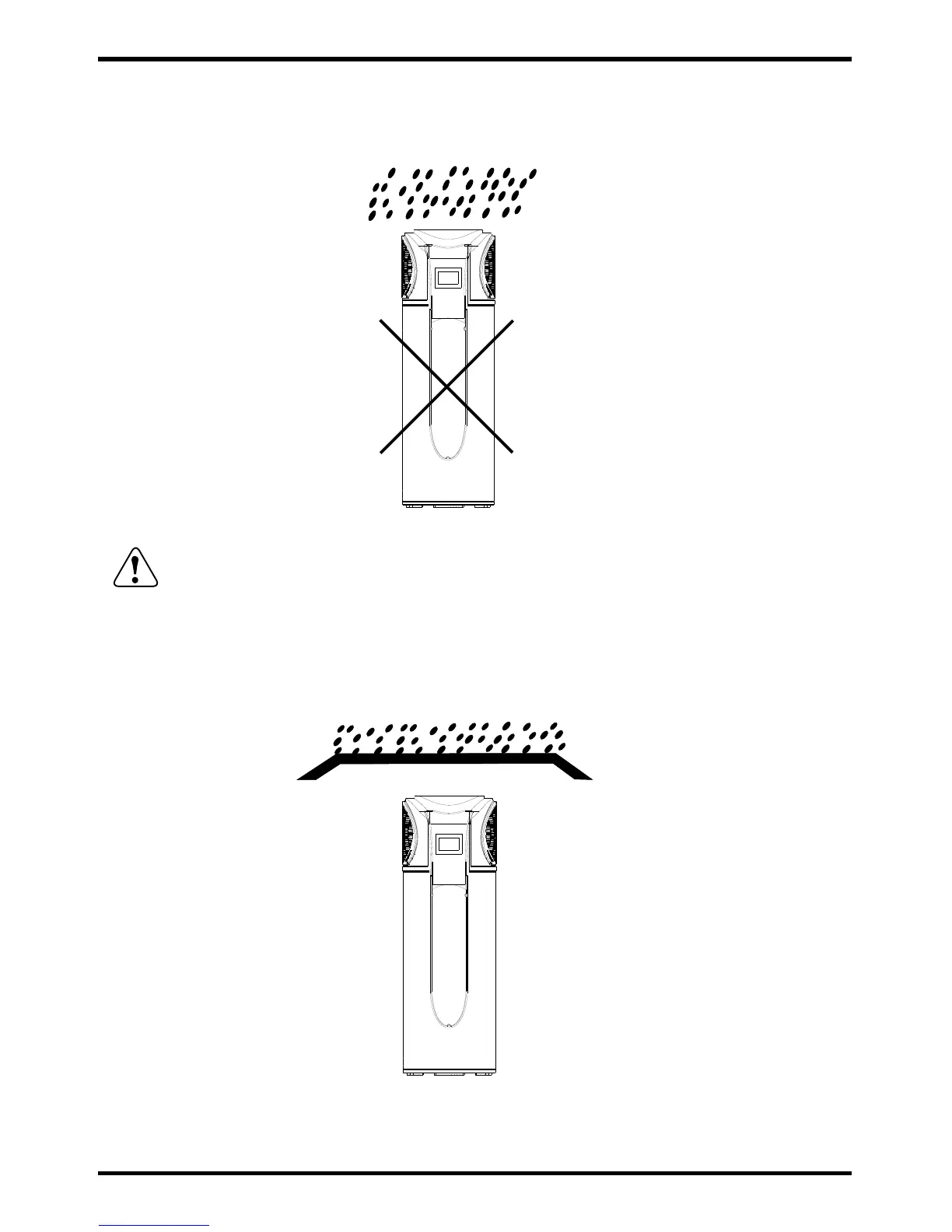

Although the unit should be installed outside, rain should be prevented from falling directly
onto the heat pump.
Main unit
Rain
Picture 8
Rain entering into internal components of the main unit may
cause damage to equipment.
ATTENTION
In order to prevent rainentering into the unit, it is suggested to install a canopy on top of main
unit as below. Installing the unit under the eaves of a house will also suffice.
Main unit
Rain
Picture 9
Weather shed
Indoor Installation Recommendations
To cool the room using the Evoheat 270.
Heat pumps operate most efficienctly with warmer air temperatures, and the outlet air from
the unit will be colder than the inlet air. Therefore it is advisable to install the unit so it
recieves the warmest air temperatures possible and the cold air is not able to recirculate
back into the unit.
The unit may be able to be installed in an unventilated room exceeding 25m3 in volume.
Venting of cold air is always advisable to prevent the air temperature dropping and lowering the
efficiency of the unit.
Think of the unit as a 3kW airconditioner for the effect it will have on a closed room.
Install the unit so the outlet from the heat pump is blowing INTO the room. The room MUST
have some form of air outlet otherwise the performance of the unit will suffer significantly
To maintain the room at normal temps using the Evoheat 270.
Install the unit so the outlet from the heat pump is blowing OUTSIDE the room. The room
MUST have some form of air inlet otherwise the performance of the unit will suffer
significantly
PLEASE CONTACT EVOHEAT FOR TECHNICAL
ADVICE IF UNSURE
1. This unit must be installed, operated and maintained in good order and in accordance with
these instructions.
2. If water supply exceeds rated pressure a pressure reducing valve is to be fitted.
3. Water may discharge from the drain pipe and this must be left open to atmosphere
4. The pressure relief valve must be operated at least every 6 months to ensure correct
operation. The drain pipe from this valve should not allow water to collect in pipework.
5. Facilities for draining and filling the unit must be provided for maintenance. Drain points
must be at the lowest point of the system.
6. Check before installation that your water pressure is within required limits. Use a filter and
pressure relief valve on the inlet as required.A water softening device will also be required in
hard water areas.
7. This heat pump must be installed by a licenced contractor. Do not attempt to install yourself
if you are not qualified.The Evoheat 270 must be installed to conform to all relevant Australian
Standards and Industry Codes including but not limited to:
Electrical and Electrical Safety
Plumbing and Hot Water Storage
Heat Pump Installation and Operation
Installation must also comply with any local, sate or federal codes at the installation site.
Failure to comply can void your warranty, damage your unit and cause possible injury or death.
Plumbing must comply with AS/NZS3500.4
