9
4. Installation
4.2 Freight and Transportation
As a rule, the unit should be stored and/or transported in its shipping container in an upright
position and without water charge. For transport over short distances, and provided due care
is exercised, an inclination angle of up to 30 degrees is permitted. During transport and
storage, ambient temperatures of - 10 to +60deg C are permissible.
4.2.1 Transport using a forklift
When transported by a fork lift, the unit must remain mounted on the pallet. The lifting speed
should be kept to a minimum. Due to its top-heaviness, the unit must be secured against
tipping over. To prevent any damage or injury, the unit must be placed on a level surface.
4.2.2 Manual transport
For the manual transport, the wooden pallet can be used for bottom part.
Using ropes or carrying straps, a second or third handling configuration is possible. With this
type of handling, care must be taken that the maximum permissible inclination angle of 60
degrees is not exceeded. If transport in an inclined position cannot be avoided, the unit should
be left to rest at least one hour after it has been moved into final position before operation.
CAUTION! High center of gravity, Place on a level surface!
Picture 5
Air out let
Displ ay
Air inlet
Barrier
Picture 6
500
1000
300
500
1000
600
10
4. Installation

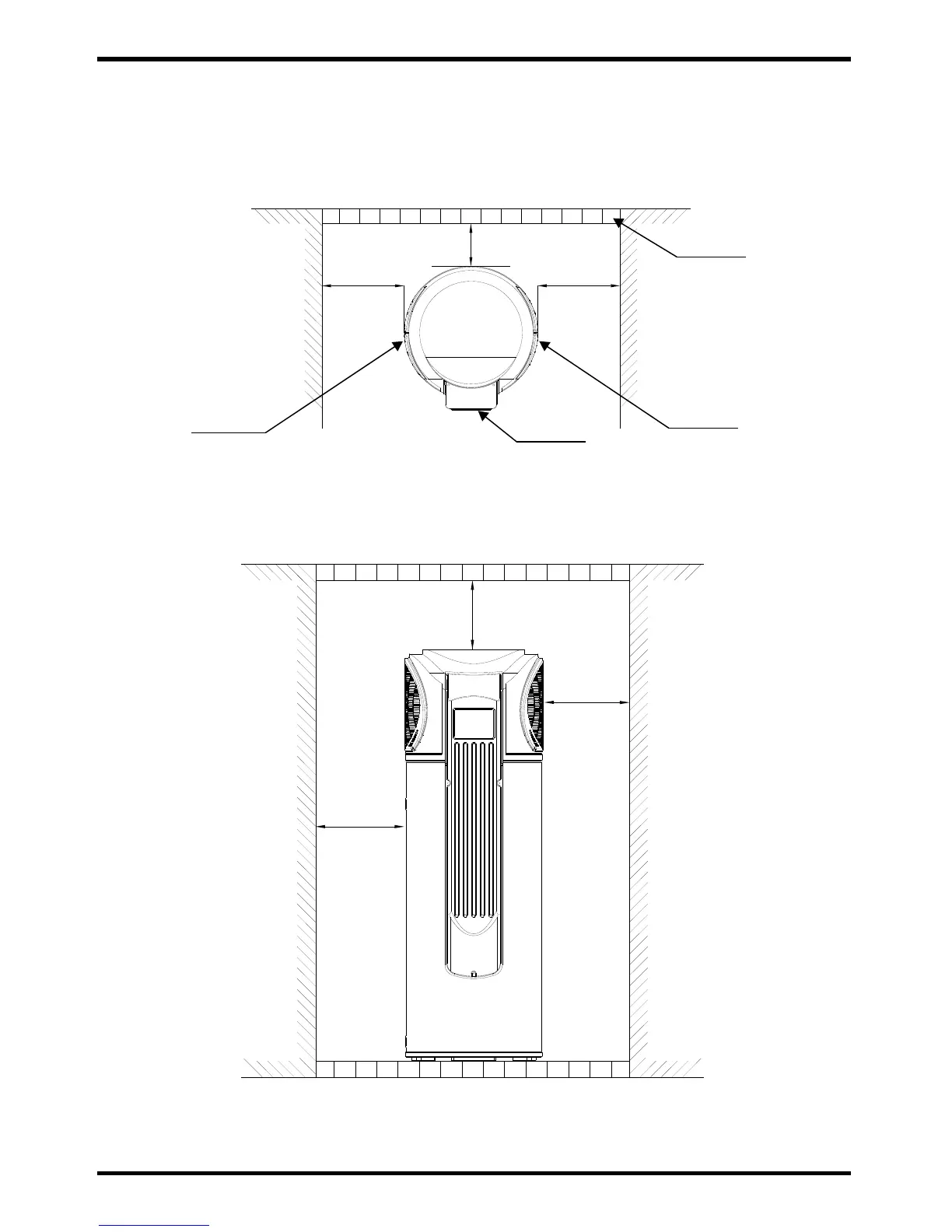

4.3 Outdoor Installation clearances
Before installation, please ensure that you leave space as shown below for maintenance
The unit must be installed on the ground on a solid level surface capable of holding the full weight of
the unit.
Picture 7
Unit:mm
4.2A Recommended household size
The below recommendations are based on heat pump only mode.
Higher occupancy levels are able to be achieved with the
Hydroboost heater activated
Notice: High usage of hot water and other factors could affect this
recommendation.Please consult your dealer if you have special requirements.
Household Size
Up to 6 people
model
Evoheat 270
