7.Appendix
30
Number
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
Material Code
68016-040052
20000-370006
20000-000032
2000-2118
2000-3504
2000-3506
2001-1418
2001-2265
20000-360040
38004-210013
38016-220006
2000-2706
38016-210019
2001-2262
38016-120029
20000-220093
38016-210030
20000-140216
38017-210024
2001-2264
38016-210018
38017-210010
20000-880032
20000-220130
2000-1404
20000-880050
20000-330087
38017-220047
2000-3607
38016-210024
2000-2654
20000-110108
38016-220008
38016-210020
38016-220005
38017-220023
20000-130143
20000-220091
38017-210009
38017-210055
Water tank ㄗ270LDㄘ
Transformer for the power supply
Electric heater
Eetainer for capacitor(180⊥)
Compressor capacitor
Fan capacitor
4-way valve
Transparent cover for the controller
Mechanical temperature controller
Pull rod
Strainer
Axial flow fan
Air outlet vent component
Plastic waterproof box
Evaporator
Cover
Support for the electrical box
Thermostatic expansion valve
Retainer
Decorative cover for the controller
C
Fixed plate for the electriccal box
Magnet
Cover plate for the wires
Needle point valve
Retainer for the magnet
Axial flow motor
Press switch
Pull rod for the compressor
Rubber feet
Compressor(H74)
Top cover
Support for motor
Air outlet vent net
Cover plate for the wire controller
P&T valve
Back cover for the controller
Fixed plate
Retainer for the temperature sensor
hassis ㄗL designㄘ
M design decorative plate
Material name
Specification
270LD, ¦640, double pipes
41X26.5F red VH-3
1.5KW
Galvanized sheet 0.8/CY 30~35uF
CBB65-35¦F/450V
CBB61-2¦F/450V
SHF-7H-34U/C02C00S/STF-0218G(R410A
For DZ controller
66TM 85 degree
295¡45¡30
¦404 PP injection molding
¦365¡113
Assembled component
11-58240¡120¡90mm
¦7.94 copper pipe
ABS white Material
Galvanized sheet 1.0
TDEN1 0.9TR 3.8kW
Galvanized sheet 2.0, black
For DZ controller
Galvanized sheet 1.2
Galvanized sheet 1.2
Magnet in oppposition
ABS greycolour codeㄩRAL7016
High or low pressrue
15¡24¡1.0
GAL6P28A-KWDB
ABS blister plastic component
2.1MPa/1.7MPa
Galvanized sheet 3.0
¦25¡20
WHP03970BSV
ABS ¦640 grey matte surface
Galvanized sheet 1.2
ABS injection molding
ABSㄛinjection mold parts
6' femal thread, 6'male thread, brass
For mounted to the unit
Galvanized sheet 1.0
Galvanized sheet 0.8
Remark
Q design
L design
Galanz
diam eter 55*85
29
7.Appendix

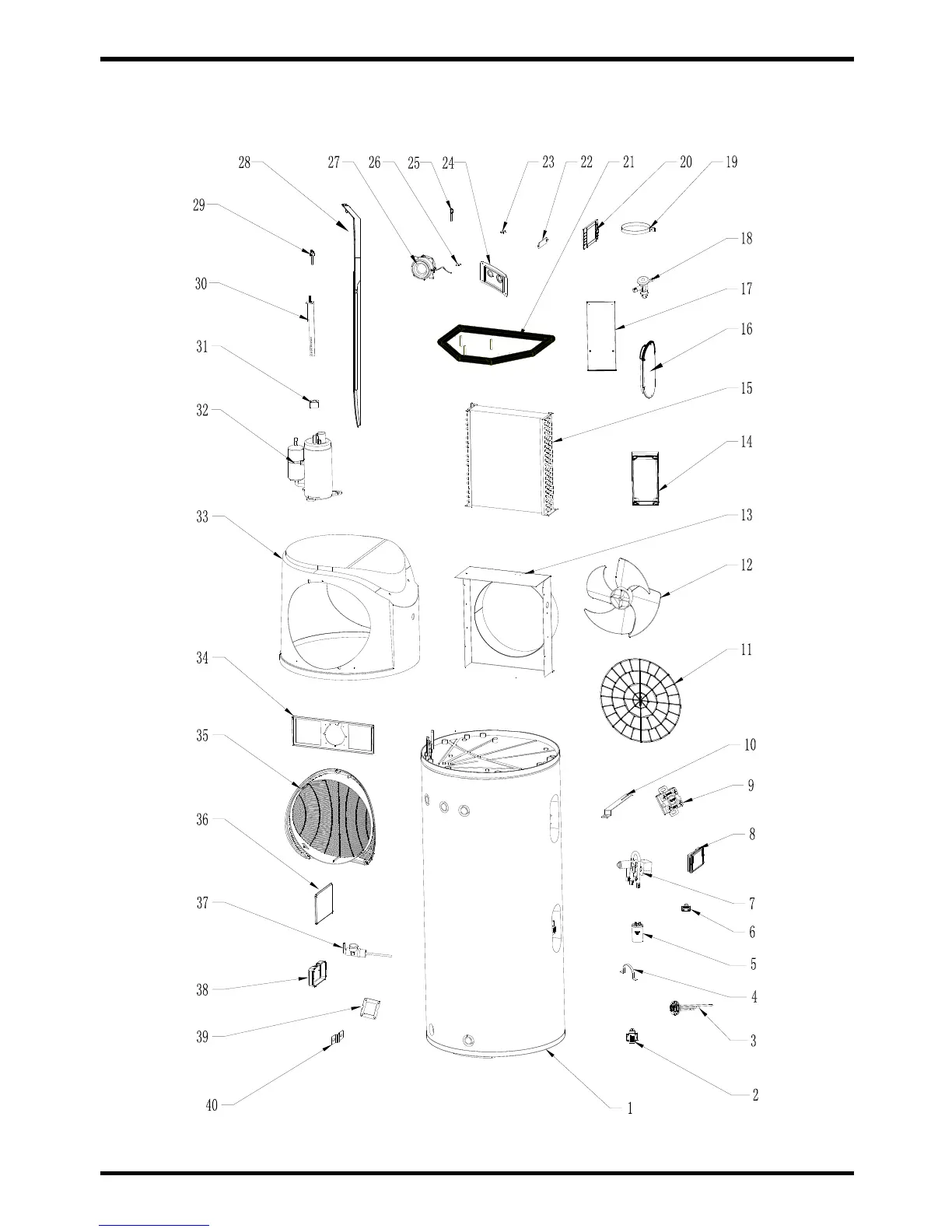

7.3. Exploded view and spare parts
MODEL : EVOHEAT 270 (PASHW015-270LD)
