Evolution Aqua Cetus sieve - Page 11

11
The Cetus Sieve when installed as a pump fed unit, needs to be set up as shown on
page 9. This will enable a 1½” (50mm) hard pipe or hosetail for flexible pipe to be
fitted, connecting your pump to the Cetus Sieve. When pump fed, the Cetus Sieve
needs to be installed above water level as shown in figure 8a below.

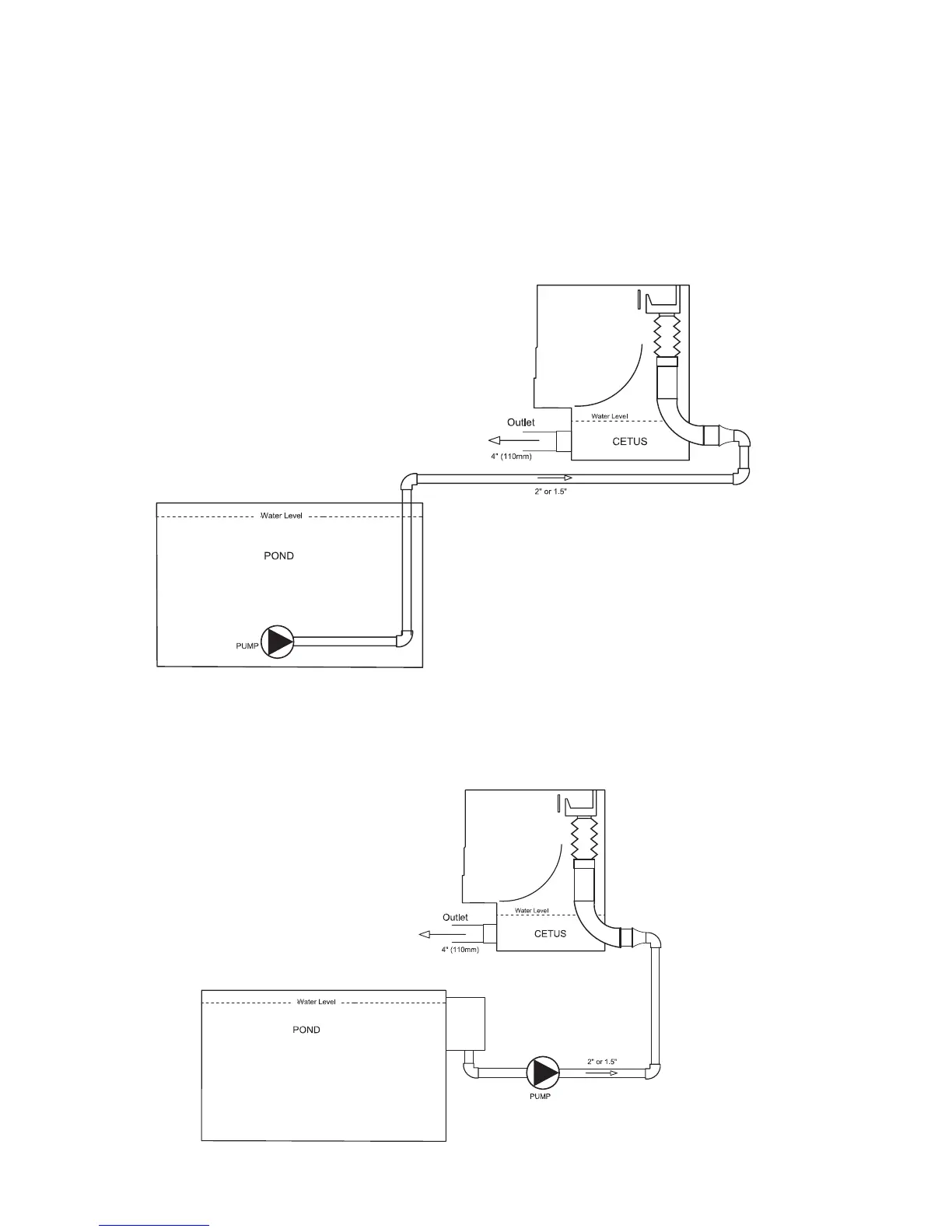

Figure 8a shows the standard way of installing a pump fed Cetus Sieve. While figure
8b shows the way of installing a pump fed Cetus Sieve on a skimmer line.
PUMP FED INSTALLATION
Figure 6
Sideview of Pump Fed
Cetus Installation
Fig 6a
Figure 6
Sideview of Pump Fed
Cetus Installation
Fig 6a
Figure 8a.
Side view of Pump Fed
Cetus installation
Figure 8b.
