15W AND 25W UV DIAGRAMS AND COMPONENTS LIST

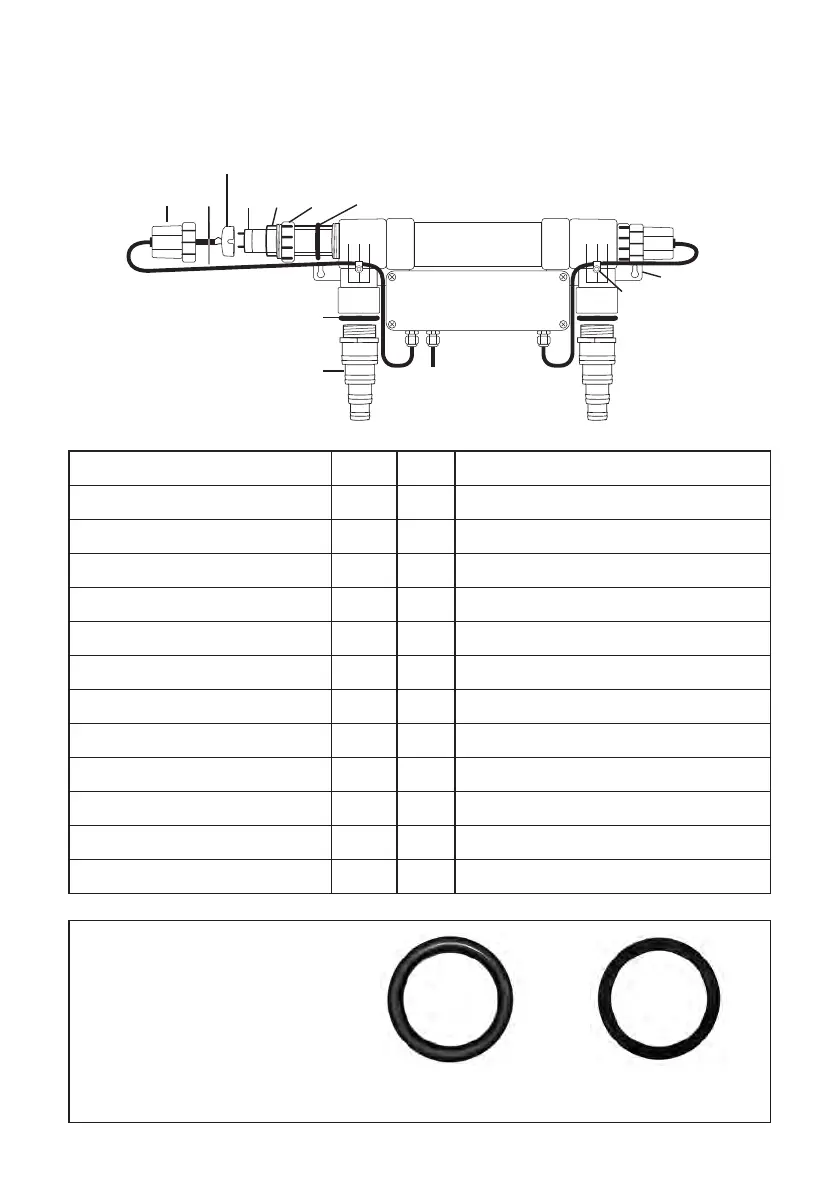

Please familiarise yourself with the components shown in the diagram below:
These are packed in small bags
inside the packaging.
Order code: EVOUVSPARESML
You will receive two quartz sleeve
O-Rings and two end cap flat
washers with this spare part.
IDENTIFYING THE O-RINGS
2 x Quartz Sleeve
O-Ring (G)
2 x End Cap
Flat Washer (I)
Round
O-Ring
Flat
Washer
Description Label Qty Order Code
Inlet / Outlet - 1½ Hosetail A 2 HOSETAIL15TH
End Cap B 2 EVOCONNUT
UV Bulb C 1 Available from your EA dealer
Quartz Sleeve D 1 Available from your EA dealer
Hosetail O-Ring E 2 EVOUVORINGHOSET
Bulb Socket F 2 LAMPHOLDER-T8
Quartz Sleeve O-Ring G 2 EVOUVORING2
Locking Nut H 2 EVO-M/F
End Cap Flat Washer I 2 EVOUVFLATWASHER
Electrical Box J 1 Available from your EA dealer
Cable Clip K 2 -
Mounting Bracket L 2 -
