CONNECTION TO YOUR PIPEWORK (evo15, 25, 30, 55, 75 only)
IMPORTANT: DO NOT OVERTIGHTEN FITTINGS.
The two universal hosetails supplied with the evoUV, should be screwed into the inlet /
outlet at either end of the unit. Hosetails should be tightened using hand pressure only.
Ensure that the O-Rings are in position before assembling. Please note that there is no
correct direction of flow through the unit, either end may be used as the inlet or outlet.
CONNECTION WITH FLEXIBLE HOSE
The evoUV is supplied with two universal hosetails to take ¾”, 1”, 1¼”, and 1½” diameter
flexible hose. If you are using one of the two larger sizes, the smaller sections of the hosetails
must be cut off to ensure sufficient water flow and to prevent possible damage to the pump.
We recommend that you use the largest diameter hose available. The hosetails should be

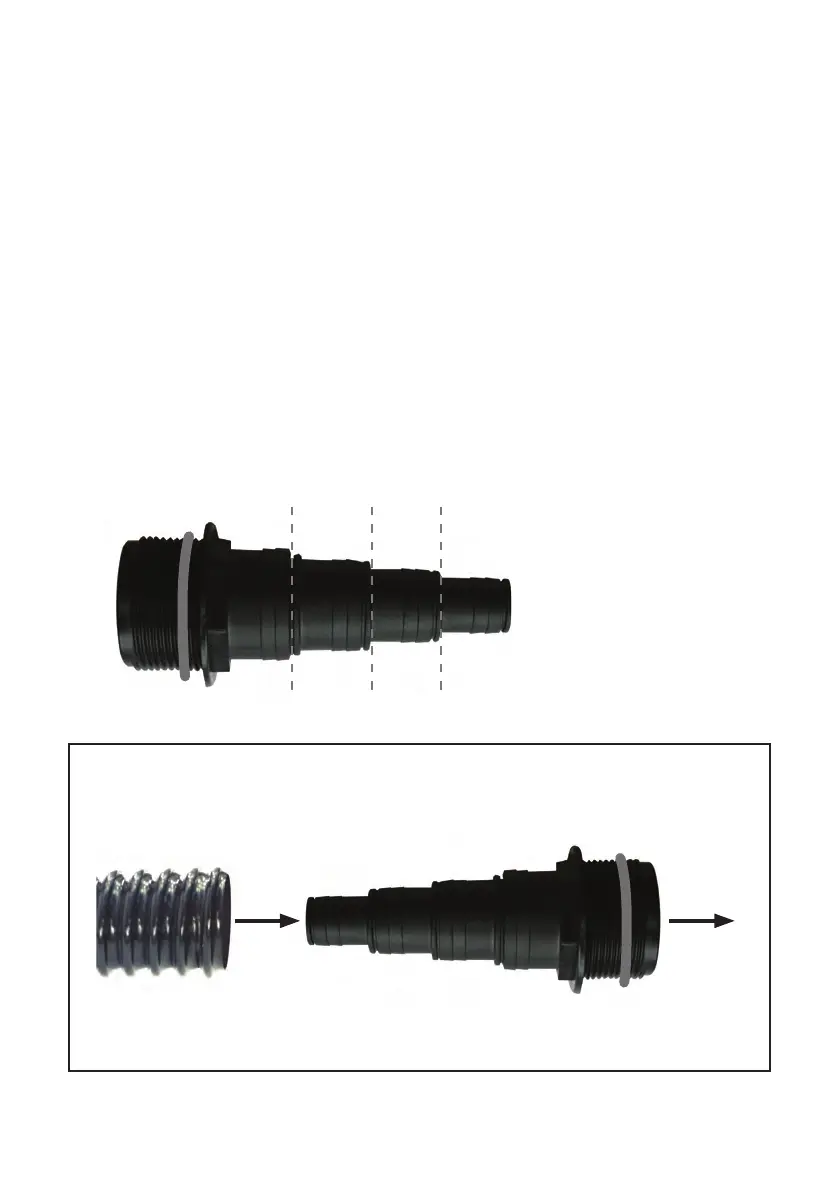

trimmed away from the unit as shown in the diagram below. Once the hosetails have been
trimmed, attach them to the unit as shown below. Secure the flexi-hose to the hosetail with
a stainless steel hose clip (not provided).
CUT AND REMOVE
UNWANTED HOSETAILS
CUT
1½” 1¼” 1” ¾”
CUT CUT
Screw into
evoUV
(Hand tight only)
Use these fittings to connect 1½" Flexible Hose to an evoUV.
Use a stainless steel hose clip (not supplied) to secure the hose to the fitting.
DO NOT OVERTIGHTEN HOSETAIL
CONNECTION TO FLEXIBLE HOSE
EA FITTING CODE:
HOSETAIL15TH
Threaded Hosetail Fitting
O-Ring
