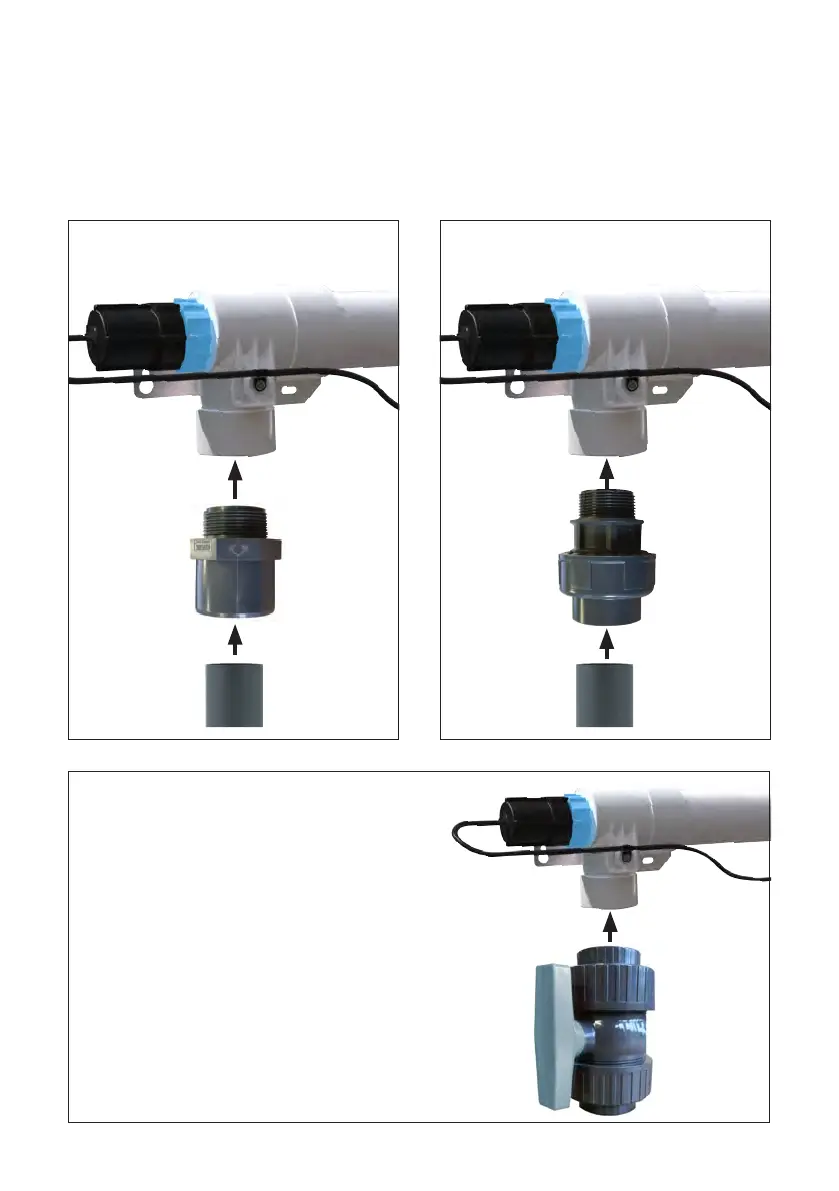

CONNECTION TO YOUR PIPEWORK (evo15, 25, 30, 55, 75 only)
CONNECTION TO IMPERIAL PRESSURE PIPE - DO NOT OVERTIGHTEN FITTINGS.
The unit may also be rigid plumbed by the use of adaptors and solvent weld adhesive,
available from Evolution Aqua stockists.
GLUED CONNECTION TO
1½" PRESSURE PIPE
GLUED CONNECTION TO 2" PRESSURE PIPE
VERSATILE CONNECTION TO
1½" PRESSURE PIPE
SCREW
SCREW
GLUE
GLUE
EA CODE:
K82-23-55
EA CODE:
K82-78-55
EA CODE:
U10-050
EA CODE:
U10-050
1½" Straight
Connector
Converter
Threaded Male
to Plain Female
The unit may also be rigid plumbed to
2" Pressure Pipe. For versatility you can
install a 2" Double Union Ball Valve
(K25-50-63) over the top of the inlet
/ outlet of the evoUV and then connect
up to 2" Pressure Pipe.
1½" Single
Union
Threaded
Male to
Plain Female
2" Double
Union
Ball Valve
1½"
Pressure
Pipe
1½"
Pressure
Pipe
EA CODE:
K25-50-63
