CONNECTION TO YOUR PIPEWORK (evo110 only)
CONNECTION TO METRIC PIPEWORK
In countries where metric pipework is used, you can connect all evoUVs to 63mm pipe.
On evo15 to evo75 models, we recommend using a 2" to 63mm Plain Female Straight
Connector Converter (K81-25-66) (not supplied). This can be glued directly onto the inlet /
outlet of the evo15 - evo75 models and then to 63mm pipe.
For evo110 models, adapters are supplied in the box to allow connection to 63mm pipe.
CONNECTION TO IMPERIAL PRESSURE PIPE - DO NOT OVERTIGHTEN FITTINGS.
The evo110 may also be rigid plumbed to 2" Pressure Pipe by the use of adaptors and
solvent weld adhesive, available from Evolution Aqua stockists.

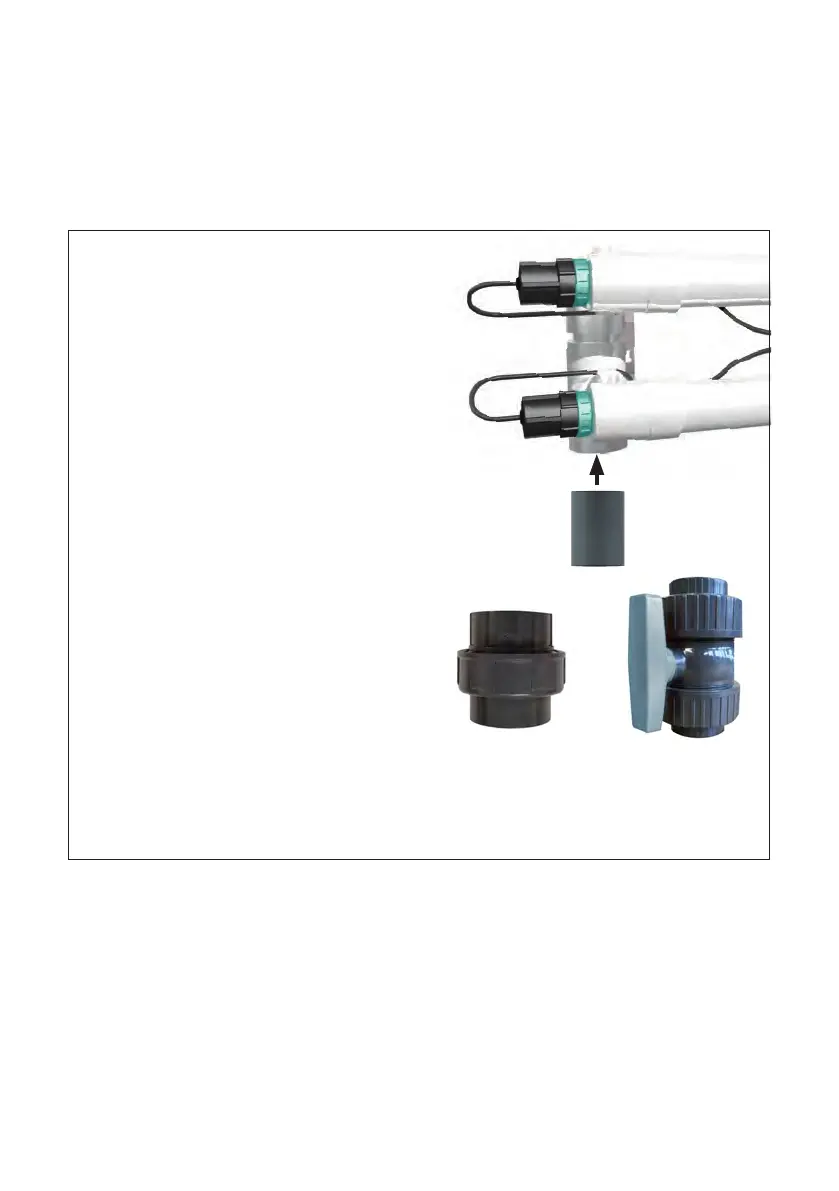

GLUED CONNECTION TO 2" PRESSURE PIPE
2" Pressure Pipe
GLUE
2" Double
Union
Ball Valve
EA CODE:
K25-50-63
2" Single Union
Plain Female to
Plain Female
EA CODE:
K82-74-66
The unit may also be rigid plumbed to
2" Pressure Pipe.
We advise you to fit a length of 2” pipe
into the inlet and outlet and then glue:
2” Double Union Ball Valve
(K25-50-63)
or
2" Plain Female to Plain Female Single Union
(K82-74-66).
