6
(B)
(C)(D) (H)
(G)
(F)
(I)
(J)
(A)
(L)

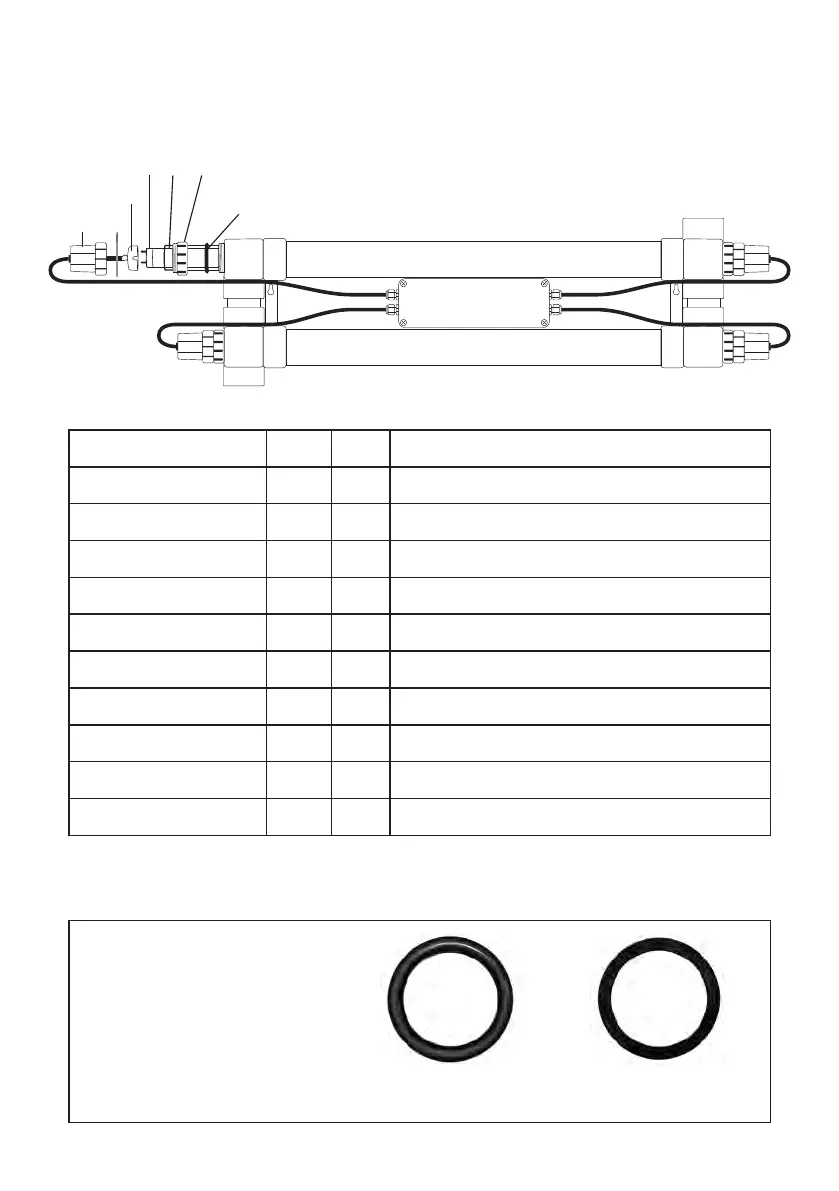

110W UV DIAGRAMS AND COMPONENTS LIST
Please familiarise yourself with the components shown in the diagram below:
For European models two 2" imperial to 63mm metric reducers are supplied.
Description Label Qty Order Code
Inlet / Outlet A - -
End Cap B 4 EVOCONNUT
UV Bulb C 2 Available from your EA dealer
Quartz Sleeve D 2 Available from your EA dealer
Bulb Socket F 4 LAMPHOLDER-T8
Quartz Sleeve O-Ring G 4 EVOUVORING2
Locking Nut H 4 EVO-M/F
End Cap Flat Washer I 4 EVOUVFLATWASHER
Electrical Box J 1 Available from your EA dealer
Mounting Bracket L 2 -
These are packed in small bags
inside the packaging.
Order code: EVOUVSPARELGE
You will receive four quartz sleeve
O-Rings and four end cap flat
washers with this spare part.
IDENTIFYING THE O-RINGS
4 x Quartz Sleeve
O-Ring (G)
4 x End Cap
Flat Washer (I)
Round
O-Ring
Flat
Washer
