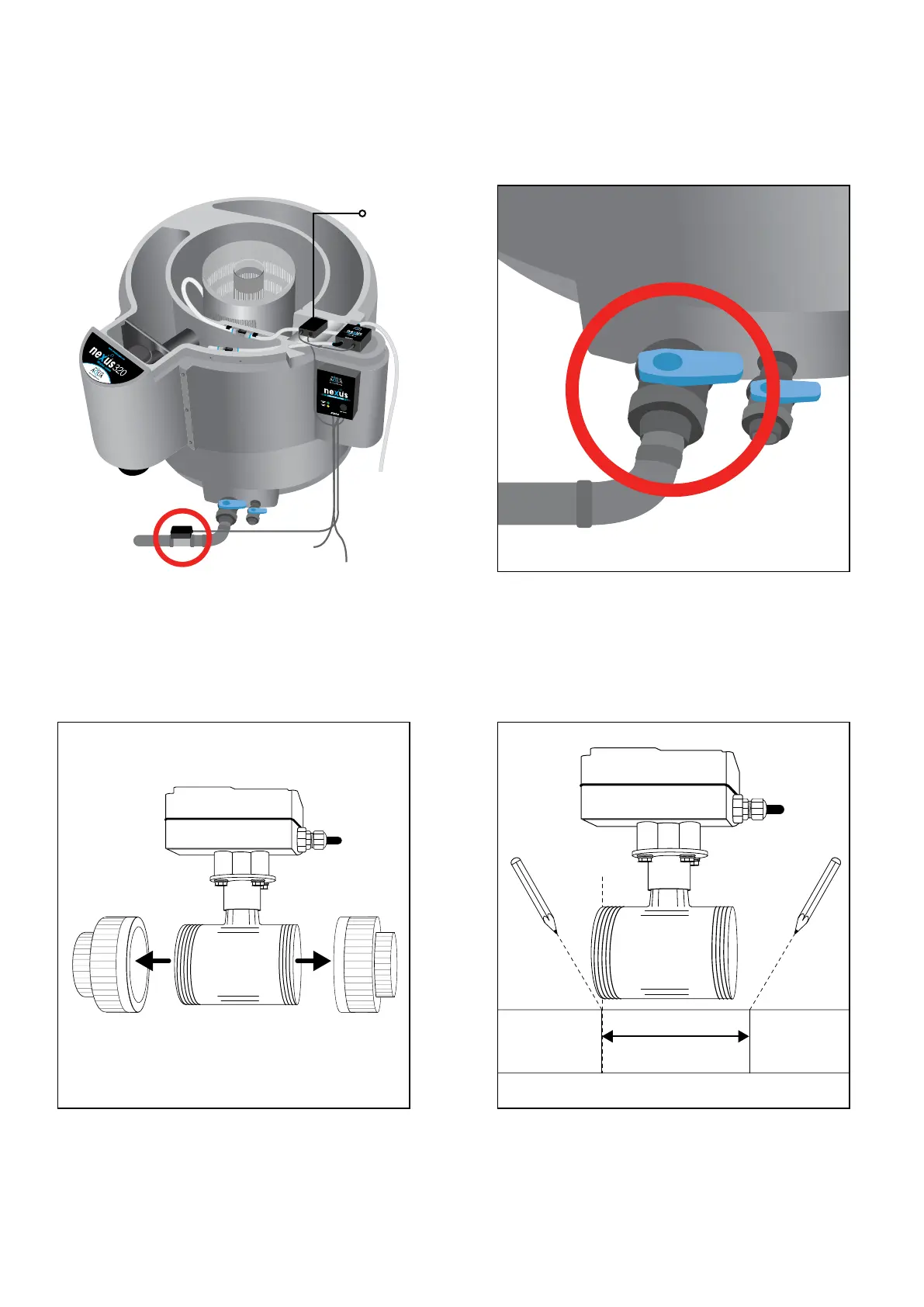

1. You are now going to install the automated waste
valve on the waste return pipework from your Nexus.
You can position this anywhere that is convenient on
the waste pipe run within reach of the power cable.
2. Before installation, ensure the waste valve on the
Nexus is in a closed position.
Mark 1 Mark 2
INSTALLING THE AUTOMATED WASTE VALVE
ONTO THE WASTE PIPEWORK
3. Taking the Automated Waste Valve, unscrew both
union ends off the automated waste valve.
4. Use a pencil or pen to mark the waste pipework
in line with one end of the ball valve minus the end
cap. Then measure 100mm along the pipe and make
a second mark.
18
Inlet valve
only installed
on Gravity Fed
set-ups.
