We recommend that the pond pump is raised off the bottom of the pond. This will
prevent the pond from emptying completely in the event of pump failure.
You MUST fit the supplied non-return valve on your inlet pipework after the
circulating pump and before the filter. (See page 22 for more details)
We recommend that all electric work on your Nexus Automatic System
be done by a suitably qualified electrician.
NEXUS PUMP FED AUTOMATIC SYSTEM INSTALLATION

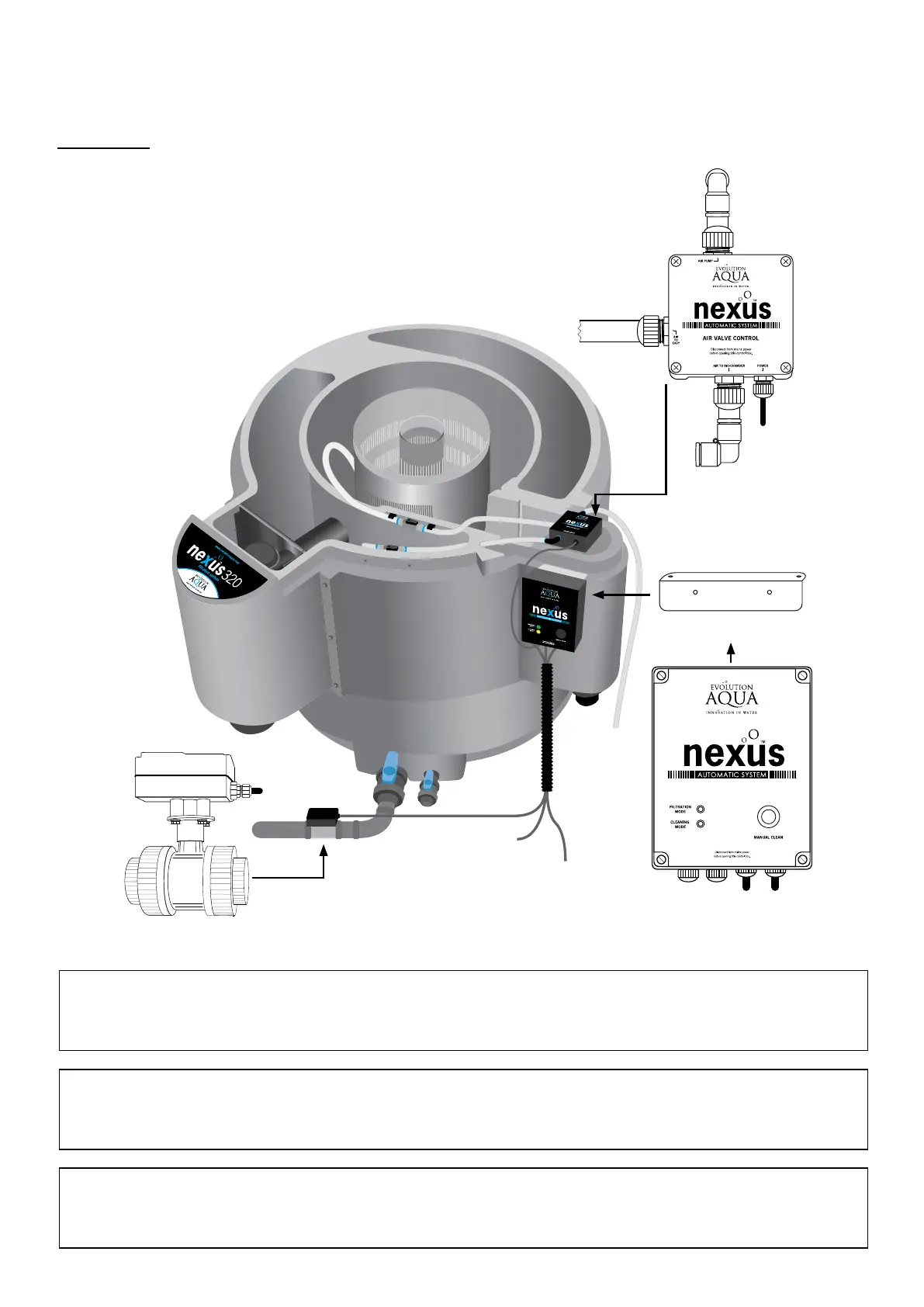

Illustration below shows the recommended installation of a Nexus Automatic System on a
PUMP FED Nexus 300, 310 or 320 and Nexus 200, 210 or 220 manufactured after 2006:
NOTE:
Inlet valve
assembly
is not needed
Air valve
control box
To mains power
To
air
pump
To circulating pump
Control box
Control box mount bracket
Automated waste valve
500mm of
12mm air line
