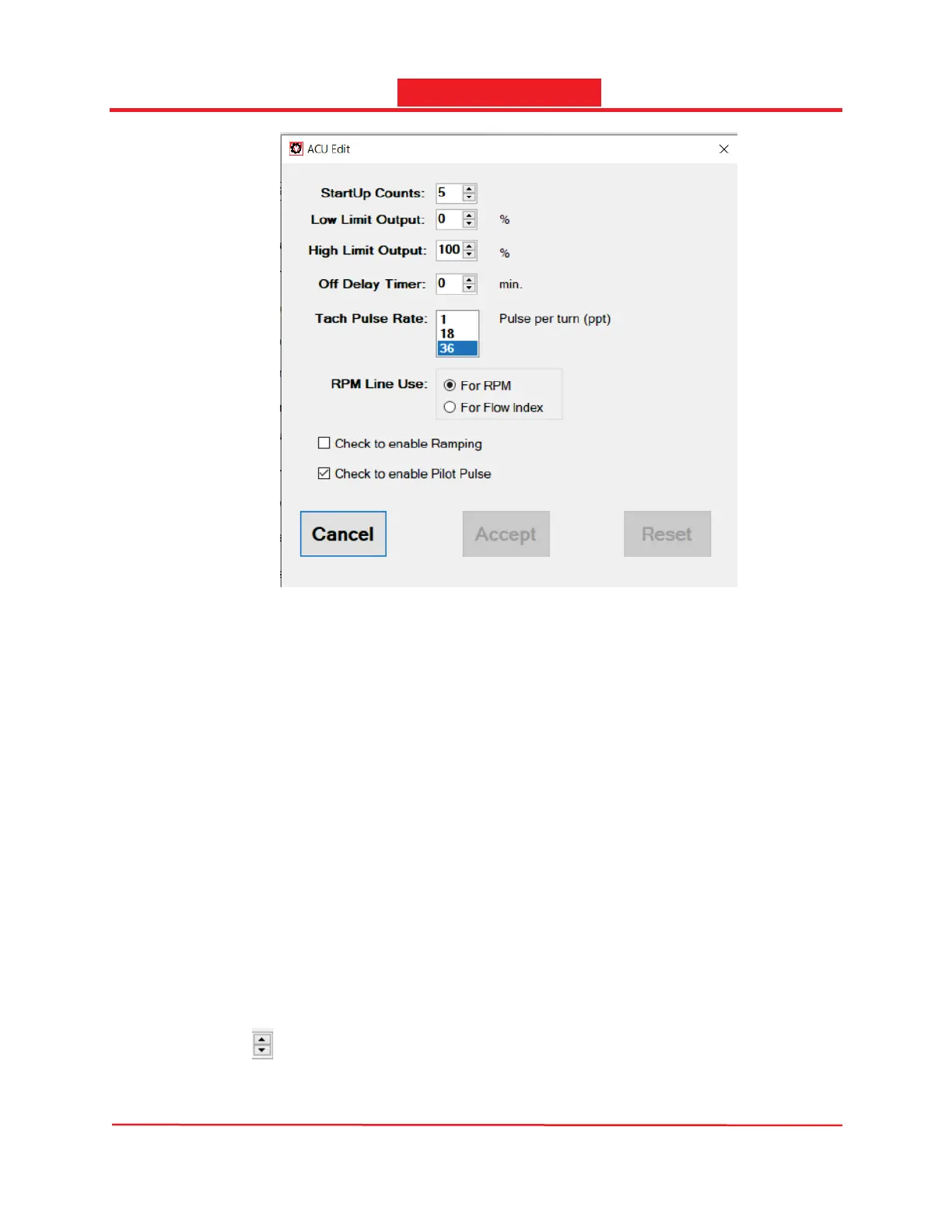

The default StartUp Counts is set to maximum five times. The StartUp mode is disabled
when the value is set to 0.
The default Low Limit Output is disabled at 0 %. The default High Limit Output is disabled at
100 %.
The default Off Delay Timer is off at 0 min. The maximum Off Delay Timer is 10 min.
The default Tach Pulse Rate is 36 pulse-per-turn(ppt) for reading RPM feedback from Regal
Beloit, Genteq EC motors. Select Tach Pulse Rate accordingly to match RPM feedback pulse-
per-turn from the EC motor.
The default function of the RPM Line is for sending motor RPM feedback to the remote
control. Select Flow Index to send the local adjust setting.
Ramping is disabled by default. Check the checkbox to enable Ramping.
Pilot Pulse is enabled by default. Uncheck the checkbox to disable Pilot Pulse.
o buttons increment/decrement the value in the edit box.
o Cancel button – ignore changes and exit
o Accept button – accept new settings and exit
