Setting Up Profile in Software
There are three ways to set up a profile in the EVO Configurator software.
1. Upload from an ECM-ACU control with firmware 5.2 or higher
2. Import from an existing profile
3. Start a new profile from scratch
1. Upload from an EVO/ECM-ACU control with firmware 5.2 or higher
A profile can be uploaded from a controller. The uploaded profile can be used as is or modified
and then saved in a new profile.
Note: The profile does not include the local adjust setting.

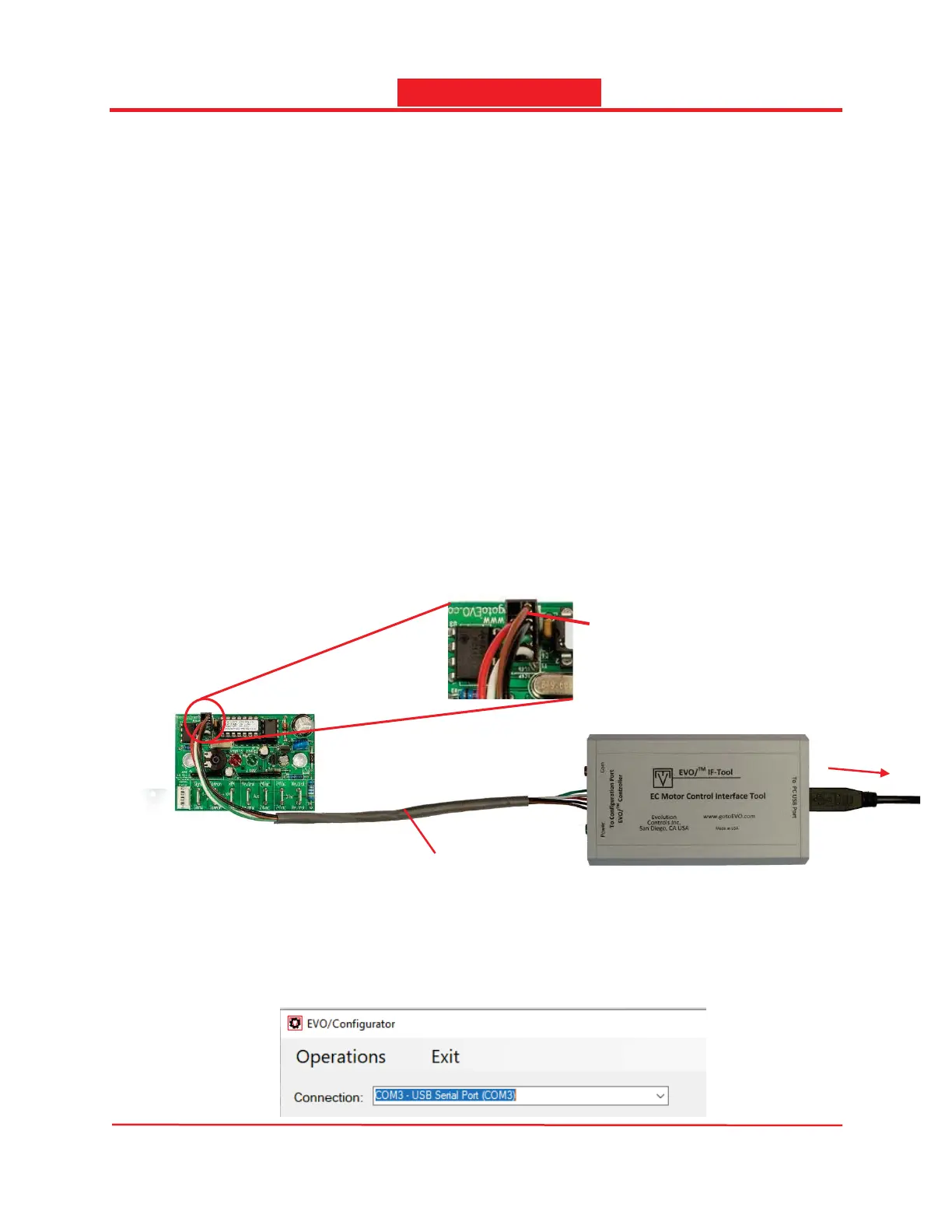

- Make sure the IF-Tool module and the ECM-ACU target are connected to the PC as shown
below. The ECM-ACU target may be configured before or after it has been installed in the
equipment. If the ECM-ACU target is not powered, the IF-Tool interface module will
automatically provide power for the upload.
Caution: Before installation, it is good practice to handle circuit boards by the edges without
touching the components or leads.
- Launch EVO Configurator
software
- Select the COM port in the Connection dropdown list.
EVO/
TM
IF-CBL
To PC
Insert the connector with the
brown wire next to the white
square
To Next Page
