INSTALLING or REMOVING a BLADE
WARNING:
Only carry out this operation with the machine
disconnected from the mains supply.
WARNING: Only use genuine Evolution blades or those
blades specifically recommended by Evolution Power Tools and
which are designed for this machine. Ensure that the maximum
speed of the blade is higher than the speed of the motor.
Note: It is recommended that the operator considers wearing
protective gloves when handling the blade during installation
or when changing the blade.
• EnsuretheCuttingHeadisinitsupperposition.
• Rotatethelowerbladeguard(Fig. 38a) up and into
the upper blade guard. (Fig. 38b).
• Press&keeppressedtheblackarborlockbuttontolock
the arbor. (Fig. 39)
• UsingthesuppliedHexKey,releasethearborscrewand
remove the washer and outer-blade flange and the blade
from the arbor. (Fig. 40a).
Note: The arbor screw has a LH thread. Turn clockwise
to loosen. Turn counterclockwise to tighten.
• Ensurethatthebladeandbladeflangesarecleanandfree
from any contamination.
• Theinner-bladeflangeshouldbeleftinplace(except
for North American models supplied with the silver
dual-sided inner-flange), but if it is removed for
cleaning it must be replaced the same way round
as it was removed from the machine.
• Installthenewblade.Makesuretherotationarrowontheblade
matches the clockwise rotation arrow on the upper guard.
Note: The blade teeth should always point downward
at the front of the saw.
• Installtheouterbladeflange,washerandarborscrew.
• Lockthearborandtightenthearborscrewusingmoderate
force, but do not overtighten.
• EnsuretheHexKeyisremovedandthearborlockhas
released before operating.
• Ensurethebladeguardisfullyfunctionalbeforeusing
the machine.
Note: Blade Bore Reducing Inserts should only be used
in accordance with the manufacturers instructions.

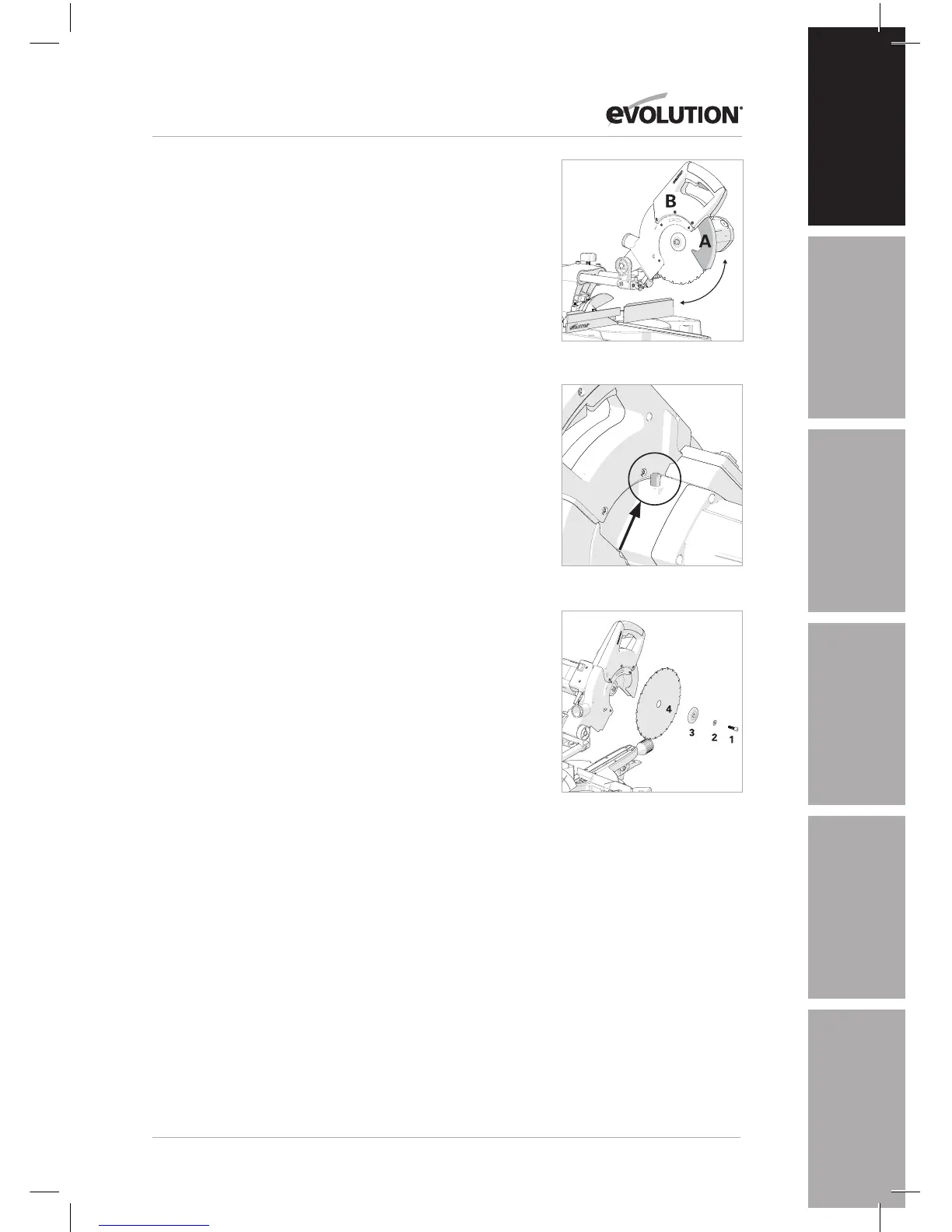

Fig. 39
