2) 16mm (5/8”) ARBOR BLADES
WARNING:
Only carry out this operation with the machine
disconnected from the mains supply.
WARNING: You must ensure the silver dual-sided inner
flange side marked 16mm (5/8”) visible to you is correct
for the blade arbor you are fitting. The silver dual-sided inner
flange is marked with the relevant arbor size each side. Do not
fit a 25.4mm (1”) arbor blade to the 16mm (5/8”) marked silver
dual-sided inner-flange side.
Note: It is recommended that the operator considers wearing
protective gloves when handling the blade during installation
or when changing the blade.
• By‘reversing’thissilverdual-sidedinner-flange,youcanalso
safely fit saw blades with a 16mm (5/8”) arbor as available in
the USA market (Fig. 40e).
• When‘reversed’,the25.4mm(1”)ringelevationwillbe
pointing ‘inwards’ to the motor. This now provides a 16mm
(5/8”) arbor on the adjacent side (Fig. 40f).
• Installthenewblade(Fig. 40g). Make sure the rotation
arrow on the blade matches the clockwise rotation arrow
on the upper guard.
Note: The blade teeth should always point downward
at the front of the saw.
• Installtheblackouter-bladeflange,washerandarborscrew.
• Lockthearborandtightenthearborscrewusingmoderate
force, but do not overtighten.
• EnsuretheHexKeyisremovedandthearborlockhas
released before operating.
• Ensurethebladeguardisfullyfunctionalbeforeusing
the machine.

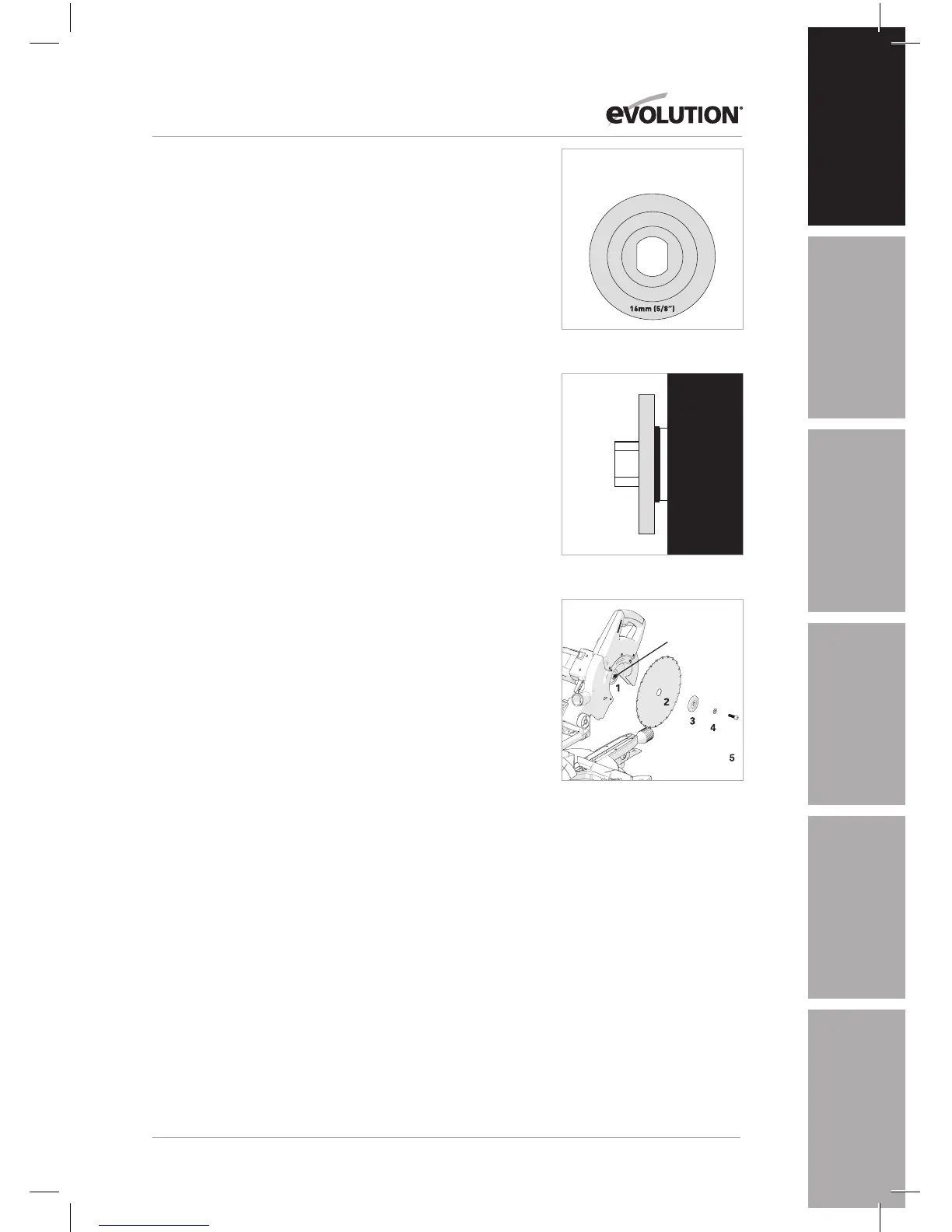

Fig. 40e
Fig. 40f
16mm 5/8” ARBOR
REVERSE SIDE OF FIG 40B
16mm 5/8”
ARBOR SIDE

BLADE FITS
THIS SIDE
MOTOR
HOUSING
DUALSIDED INNERFLANGE
Fig. 40g
16mm 5/8”
DUALSIDED
INNERFLANGE
