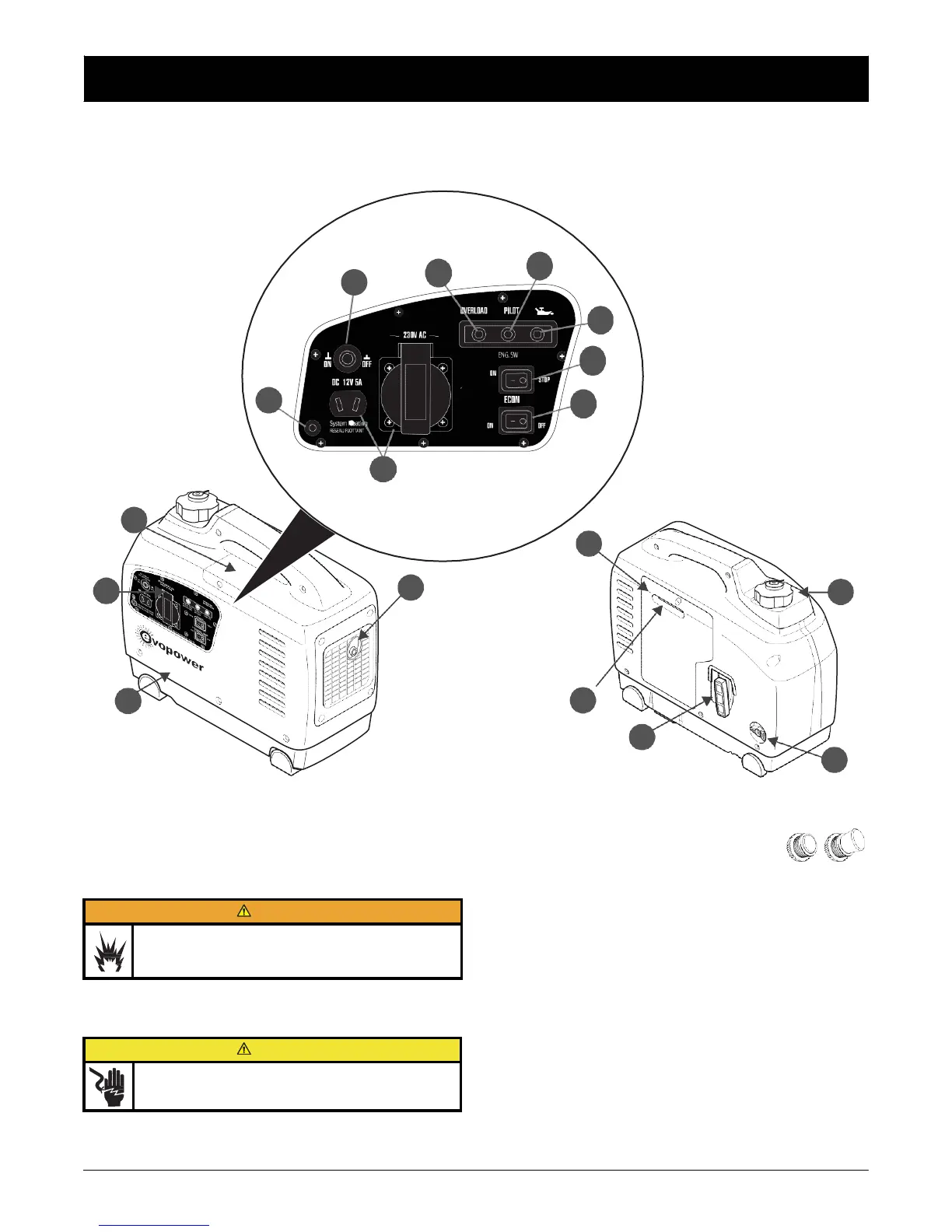

Evopower EVO1000i - Front and Back View

Front and Back View
Front and Back View
EVO1000i Model
4
5
3
6
7
2
8
1
B
F
A
C
G
D
J
E
H
A—Control Panel
1. Outlets
230V outlet(s) to connect 120V appliances to generator for
power.
DC outlet ranges from 12 to 18 volts and is unregulated. This
outlet should not be used for battery charging.
WARNING
NEVER use unapproved DC cables as this can
result in circumstances leading to death, serious
injury, and property damage.
2. Ground Terminal
Connects generator to ground wire for grounding protection.
CAUTION
Generator must be grounded to prevent electrical
shock from faulty appliances. See page 6.
3.
Breaker
Protect circuits from damage caused by
overload or short-circuit by stopping low
of electricity from generator to the
DC
appliance. If there is no power at DC
outlet, see “Troubleshooting” on page 27.
4.
Overload Indicator Light
Illuminates red when the generator is overloaded or if there is
a short circuit in a connected appliance. Turn the generator
off immediately and determine the reason for the overload.
5. Output Indicator Light
Illuminates green when the generator is running under nor-
mal operating conditions.
6. Oil Alert Indicator Light
Illuminates red when low oil conditions are present and the
generator is running (
or while recoil is pulled). The engine
will automatically stop to prevent generator damage.
