The body shrouds underneath the seat consists of two body panels pieces. The larger fender well
portion (main body shroud), and the back lower bumper portion (rear bumper shroud). The rear bumper
shroud secures to the main body shroud with five screws, and two clip nuts.

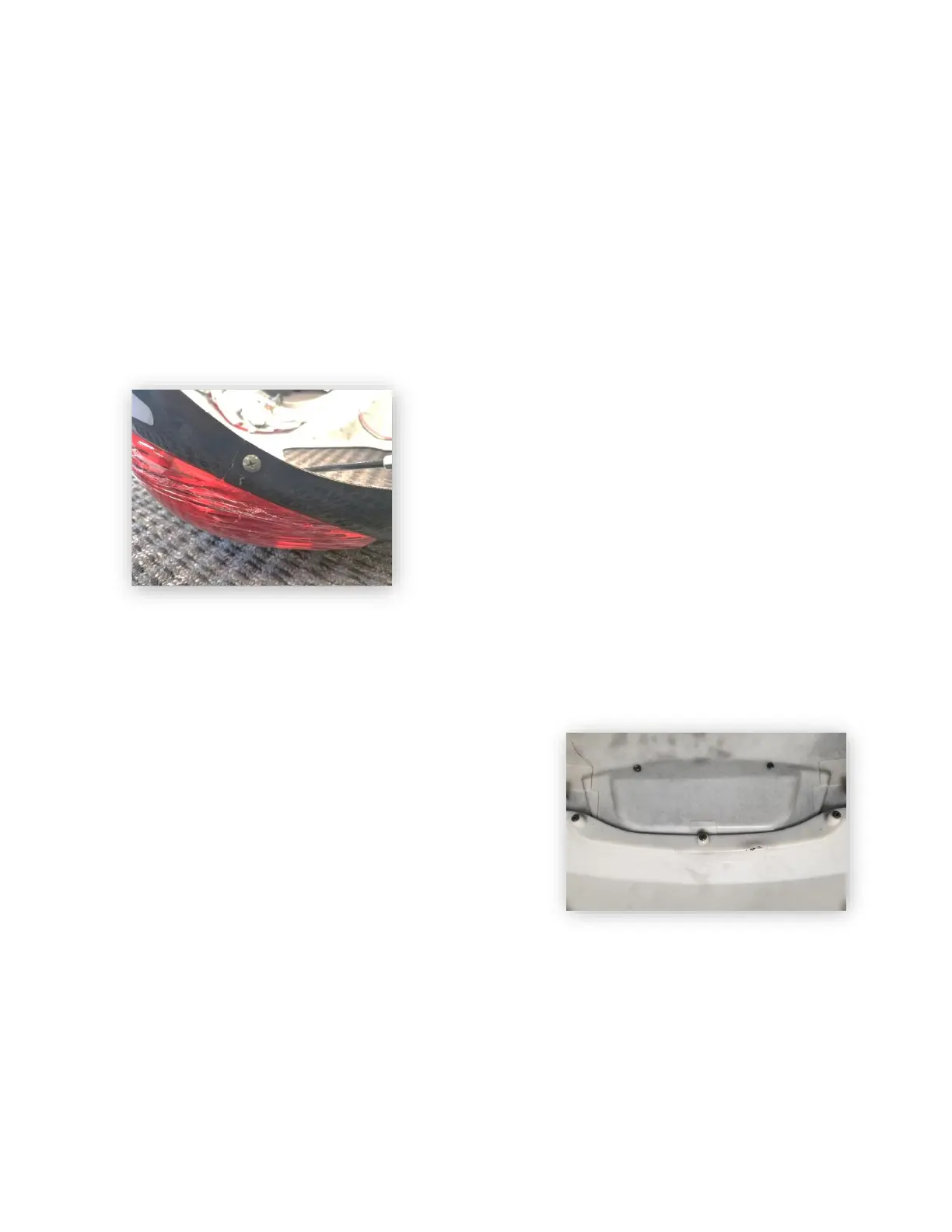

There is a screw and clip nut on each side of the main
body shroud where the rear bumper shroud connects.
Remove the screw, and the clip nut will remain on the
rear bumper shroud.
There are three more screws near where the license plate
would be located on the inside of the shroud. Removing
these will allow for the main body shroud and rear back
bumper to be separated.
