It is also possible to replace the front turn signal bulbs, and rear taillight assembly bulbs without
removing any tires and or panels. Doing so may save time but makes the working space much tighter.
For the rear lights, reach a hand between the tire and main body shroud, and twist the affected socket
out, and replace the bulb. For the front turn signal bulbs, reach a hand between the front body shroud,
and front wheel fender, and twist the affected socket out, and replace the bulb.

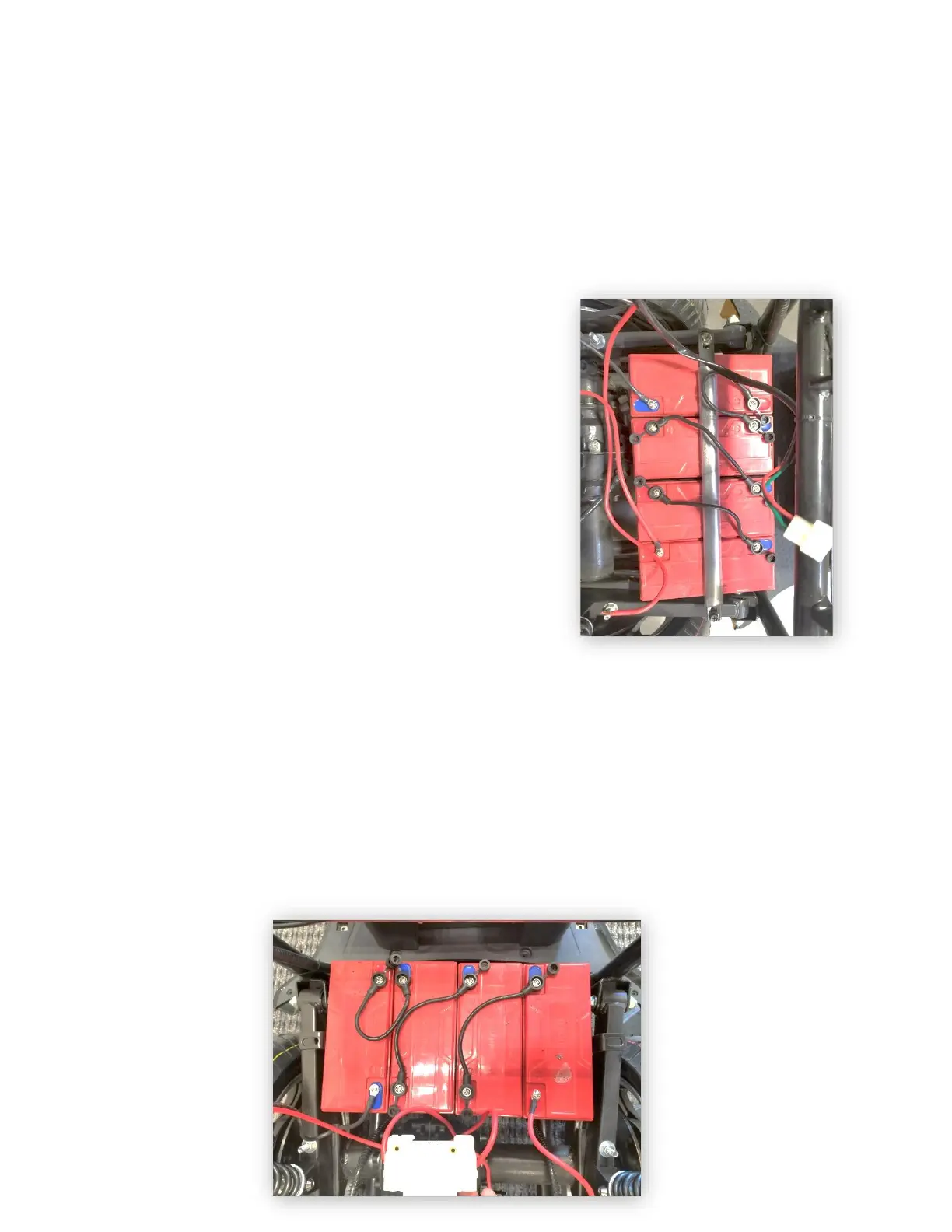

Batteries - The batteries may need to be replaced every 2 - 3
years, depending on how they are maintained. To replace
the batteries, first start by removing the storage box located
underneath the seat. Once removed, the batteries will be
exposed. There is a securing bar across the top of the
batteries. To remove this bar, remove the two 10mm bolts
that secure the bar.
The batteries are wired in a positive to negative series. There is one wire harness wire that connects the
first batteries positive. From there, the batteries are wired with two sided terminal wires that connect
battery number one's remaining positive, to battery number two's negative. This sequence is continued
until there is only battery number four's positive terminal available without a wire connected. Finish the
battery wiring by connecting the remaining wire that is connected to one of the sides of the circuit
breaker, to batter number four's remaining positive terminal. Refer to the photo below for a visual
reference.
